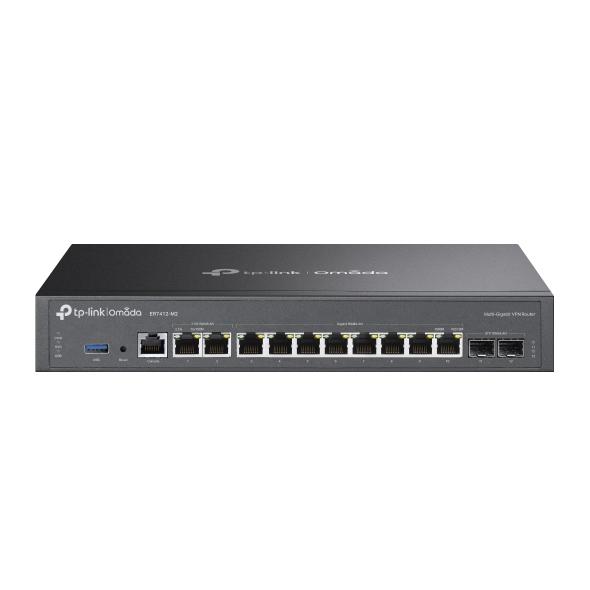

Specifications TP-Link Omada ER7412-M2
| Features | Description |
|---|---|
| Device Type | Omada Multi-Gigabit VPN Gateway |
| CPU | Quad-Core ARMv8 Processor @ 2.0GHz |
| 2.5G Ports | 2 × 2.5Gbps RJ45 WAN/LAN Ports |
| Gigabit RJ45 Ports | 8 × 10/100/1000Mbps RJ45 WAN/LAN Ports |
| Gigabit SFP Ports | 2 × 1Gbps SFP WAN/LAN Ports |
| USB | 1 × USB 3.0 Port |
| WAN Ports | Load Balancing on up to 11 WAN Ports |
| VPN | IPsec, OpenVPN, L2TP, PPTP, WireGuard, SSL VPN and GRE VPN |
| Management | Omada Cloud-Based Management, Omada App and Web Interface |
| Security | DPI, IDS/IPS, DoS/DDoS Protection, IP/MAC/URL Filtering and ACL |
| 2.5G RJ45 Ports | 2 × 10/100/1000/2500Mbps RJ45 WAN/LAN |
|---|---|
| Gigabit RJ45 Ports | 8 × 10/100/1000Mbps RJ45 WAN/LAN |
| Gigabit SFP Ports | 2 × 1000Mbps SFP WAN/LAN |
| Console Port | 1 × RJ45 Console Port |
| USB Port | 1 × USB 3.0 |
| USB Function | USB Storage and LTE Backup with Compatible LTE Dongle |
| WAN Ports | Up to 11 WAN Ports |
| Load Balancing | Supported |
| Power Supply | 100–240V AC, 50/60Hz |
| Flash | 128MB NAND |
| DRAM | 1GB DDR4 |
| Maximum Power Consumption | 18.5W with USB 3.0 Connected |
| Surge Protection | 4kV |
| Dimensions | 294 × 180 × 44 mm |
| Installation | Desktop or Rack Mount |
| ROUTER FEATURES | |
|---|---|
| WAN Connection | Dynamic IP, Static IP, PPPoE, L2TP and PPTP |
| Multi-WAN | Supports up to 11 WAN Ports |
| Load Balancing | Supports Weighted Load Balancing and Application Optimized Routing |
| Link Backup | Supports Automatic WAN Failover and Link Backup |
| Policy Routing | Supports Policy Routing Based on Source, Destination, Protocol and Other Parameters |
| Static Routing | Supports IPv4 and IPv6 Static Routing |
| DHCP | DHCP Server, DHCP Client, DHCP Relay and DHCP Snooping |
| VLAN | 802.1Q VLAN and WAN/LAN VLAN |
| NAT | Port Forwarding, Port Triggering, NAT-DMZ, 1:1 NAT and UPnP |
| IPv6 | Supports IPv6 Routing, DHCPv6 and IPv6 Firewall |
| VPN FEATURES | |
|---|---|
| IPsec VPN | Supports Site-to-Site and Client-to-Site IPsec VPN |
| OpenVPN | Supports OpenVPN Server and Client |
| WireGuard VPN | Supports WireGuard VPN |
| SSL VPN | Supports SSL VPN |
| L2TP VPN | Supports L2TP VPN |
| PPTP VPN | Supports PPTP VPN |
| GRE VPN | Supports GRE VPN for Site-to-Site Connectivity |
| SMART FEATURES | |
|---|---|
| Multi-Gigabit Connectivity | Provides 2 × 2.5Gbps RJ45 WAN/LAN Ports for Multi-Gigabit Network Connections |
| 11-WAN Load Balancing | Supports Load Balancing Across up to 11 WAN Ports for Multi-Line Broadband Connections |
| Dual SFP WAN/LAN | Provides 2 × Gigabit SFP Ports for Fiber WAN or LAN Connectivity |
| LTE Backup | Supports LTE Backup Through a Compatible USB LTE Dongle |
| Omada SDN | Supports Centralized Cloud Management of Omada Gateways, Switches and Access Points |
| DPI | Deep Packet Inspection Supports Application Identification and Traffic Analysis |
| IDS/IPS | Provides Intrusion Detection and Prevention for Enhanced Network Security |
| DoS/DDoS Protection | Protects the Network Against Denial-of-Service and Distributed Denial-of-Service Attacks |
| Firewall | Supports Stateful Firewall, ACL, IP/MAC/URL Filtering and Location-Based ACL |
| Captive Portal | Supports Captive Portal Authentication for Guest Network Access |
| SD-WAN | Supports SD-WAN Features for Multi-Site Connectivity |
| GENERAL | |
|---|---|
| Device Type | Multi-Gigabit VPN Gateway |
| 2.5G Ports | 2 × 2.5Gbps RJ45 WAN/LAN |
| Gigabit RJ45 Ports | 8 × Gigabit RJ45 WAN/LAN |
| Gigabit SFP Ports | 2 × Gigabit SFP WAN/LAN |
| Total Interfaces | 12 × WAN/LAN Interfaces |
| Maximum WAN Ports | Up to 11 WAN Ports |
| PoE | Not Supported |
| Management | Omada Cloud, Omada App and Web Interface |
| CPU | Quad-Core ARMv8 @ 2.0GHz |
| Memory | 1GB DDR4 |
| Flash | 128MB NAND |
| Power Supply | 100–240V AC, 50/60Hz |
| Maximum Power Consumption | 18.5W with USB 3.0 Connected |
| Dimensions | 294 × 180 × 44 mm |
| Installation Method | Desktop or 19-Inch Rack Mount |
Note: The TP-Link Omada ER7412-M2 is a Multi-Gigabit VPN Gateway featuring 2 × 2.5Gbps RJ45 WAN/LAN ports, 8 × Gigabit RJ45 WAN/LAN ports and 2 × Gigabit SFP WAN/LAN ports. It is designed for multi-WAN environments, enterprise networks, schools, hotels and offices requiring multiple Internet connections, high-speed routing and centralized Omada management.
Important: The ER7412-M2 is a router/gateway, not a PoE switch. All RJ45 and SFP interfaces can be configured as WAN or LAN according to the network design. It supports up to 11 WAN connections for load balancing, while the USB 3.0 port can be used for compatible LTE backup or USB storage.
