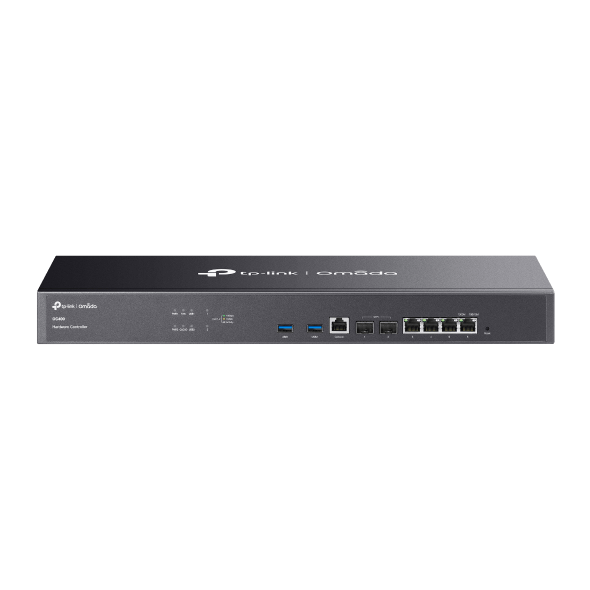

Specifications TP-Link Omada OC400
| Features | Description |
|---|---|
| Product Type | Omada Hardware Controller |
| Processor | Quad-Core ARM Cortex-A72, 2.2 GHz |
| Memory | 8 GB DDR4 |
| Storage | 32 GB eMMC + 4 MB NOR Flash |
| SFP+ Ports | 2 × 1/10G SFP+ |
| Ethernet Ports | 4 × 10/100/1000 Mbps Gigabit Ethernet |
| USB | 2 × USB 3.0 |
| Console | 1 × RJ45 Console Port |
| Management Scale | Up to 1,000 Omada APs, 200 Switches and 100 Routers |
| Power Supply | 100–240V AC, 50/60Hz |
| Redundant Power | 2 × Internal Fixed Power Supplies |
| HARDWARE | |
|---|---|
| Processor | Quad-Core ARM Cortex-A72 @ 2.2 GHz |
| Memory | 8 GB DDR4 |
| Storage | 32 GB eMMC + 4 MB NOR Flash |
| SFP+ Ports | 2 × 1/10G SFP+ |
| Ethernet Ports | 4 × 10/100/1000 Mbps |
| USB Ports | 2 × USB 3.0 |
| Console | 1 × RJ45 Console Port |
| Reset | 1 × Reset Button |
| Security | 1 × Kensington Lock |
| Grounding | 1 × Ground Screw |
| OMADA MANAGEMENT | |
|---|---|
| Centralized Management | Centralized Management of Omada Access Points, Switches and Routers |
| Access Points | Up to 1,000 APs |
| Switches | Up to 200 Switches |
| Routers | Up to 100 Routers |
| Multi-Site Management | Supported |
| Multi-Tenant Management | Supported with Role, Site and Device Privileges |
| Cloud Access | Supported |
| Automatic Device Discovery | Supported |
| Batch Configuration | Supported |
| Batch Firmware Upgrade | Supported |
| Remote Management | Supported |
| Backup & Restore | Supported |
| NETWORK MANAGEMENT | |
|---|---|
| Network Monitoring | Real-Time Network Monitoring and Traffic Analysis |
| Network Topology | Real-Time Network Topology Visualization |
| Dashboard | Custom Network Dashboard |
| Client Monitoring | Client List and Client Statistics |
| Device Monitoring | Device Status and Statistics |
| Event Logs | Alerts, Events and Network Logs |
| Network Map | Supported |
| WLAN Management | Centralized Wireless Network Management |
| Wired Management | Centralized Wired Network Management |
| NETWORK FEATURES | |
|---|---|
| VLAN | Supported |
| ACL | Supported on Compatible Omada Devices |
| Bandwidth Control | Supported |
| Captive Portal | Supported |
| RADIUS | Supported |
| 802.1X | Supported |
| SNMP | Supported |
| SSH | Supported |
| VPN Management | Supported on Compatible Omada Gateways |
| POWER & GENERAL | |
|---|---|
| Power Supply | 100–240V AC, 50/60Hz |
| Redundant Power Supply | 2 × Internal Fixed Power Supplies |
| Maximum Power Consumption | 22.8W without USB / 33.1W with 2 USB devices connected |
| Cooling | 1 × Built-in Fan |
| Dimensions | 440 × 180 × 44 mm |
| Installation | Rack-Mount / Desktop Installation |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 90% RH, Non-Condensing |
| Certifications | CE, FCC and RoHS |
Note: The TP-Link Omada OC400 is an enterprise-grade hardware controller designed for centralized management of large Omada networks. It features a Quad-Core ARM Cortex-A72 processor, 8GB DDR4 memory, 32GB eMMC storage, 2 × 1/10G SFP+ ports, 4 × Gigabit Ethernet ports and 2 × USB 3.0 ports. It supports centralized management of up to 1,000 Omada Access Points, 200 switches and 100 routers.
Important: The OC400 is a dedicated Omada network controller, not a router, switch or Access Point. It is designed for large-scale centralized management and can be installed in a standard rack. The controller includes two internal fixed power supplies for power redundancy and a built-in fan for cooling.
