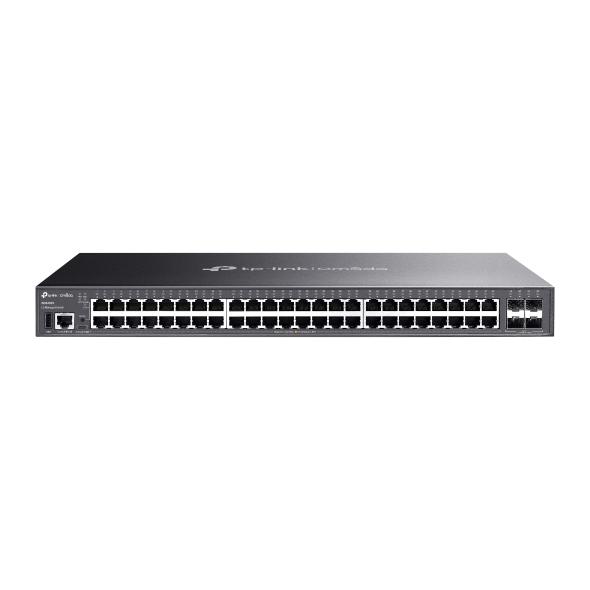

Specifications TP-Link Omada SG5452X
| Features | Description |
|---|---|
| Device Type | 48-Port Gigabit Stackable Lite L3 Managed Switch with 4 × 10G SFP+ Slots |
| Network Ports | 48 × 10/100/1000Mbps RJ45 Ports |
| Uplink Ports | 4 × 1/10Gbps SFP+ Slots |
| Switching Capacity | 176 Gbps |
| Forwarding Bandwidth | 88 Gbps |
| Packet Forwarding Rate | 130.94 Mpps |
| MAC Address Table | 16K |
| Packet Buffer | 12 Mbit |
| Jumbo Frame | 9 KB |
| Stacking | Physical Stacking up to 4 Units |
| Stacking Bandwidth | Up to 40 Gbps |
| Layer 3 Features | Static Routing, RIP, OSPF, VRRP, DHCP Server and DHCP Relay |
| Management | Omada SDN, Web GUI, CLI, SNMP and RMON |
| RJ45 Ports | 48 × 10/100/1000Mbps |
|---|---|
| SFP+ Slots | 4 × 1/10Gbps SFP+ |
| Console Ports | 1 × RJ45 Console Port + 1 × USB Type-C Console Port |
| USB Port | 1 × USB 2.0 |
| PoE | Not Supported |
| Switching Capacity | 176 Gbps |
| Forwarding Bandwidth | 88 Gbps |
| Packet Forwarding Rate | 130.94 Mpps |
| MAC Address Table | 16K |
| Packet Buffer | 12 Mbit |
| Jumbo Frame | 9 KB |
| Transmission Method | Store-and-Forward |
| SMART FEATURES | |
|---|---|
| 48-Port Gigabit Ethernet | Provides 48 × 10/100/1000Mbps RJ45 Ports for Gigabit Network Connectivity |
| 10G SFP+ Uplinks | Provides 4 × 1/10Gbps SFP+ Slots for High-Speed Fiber Uplink and Network Aggregation |
| Physical Stacking | Supports Physical Stacking of up to 4 Units with up to 40Gbps Stacking Bandwidth |
| Layer 3 Routing | Supports Static Routing, RIP and OSPF for Layer 3 Network Routing |
| VRRP | Supports VRRP for Gateway Redundancy and High Availability |
| DHCP | Supports DHCP Server and DHCP Relay |
| Omada SDN | Supports Centralized Cloud Management Through the Omada SDN Controller |
| VLAN | Supports 802.1Q VLAN for Network Segmentation and Traffic Isolation |
| Link Aggregation | Supports Link Aggregation and LACP for Increased Bandwidth and Link Redundancy |
| QoS | Supports 8 Priority Queues, 802.1p/DSCP Priority, Bandwidth Control and Storm Control |
| ACL | Supports IPv4/IPv6 ACL for Network Traffic Filtering and Security |
| ERPS | Supports Ethernet Ring Protection Switching for Rapid Protection and Recovery in Ring Topologies |
| Spanning Tree | Supports STP, RSTP and MSTP for Loop Prevention and Network Redundancy |
| IGMP Snooping | Supports IGMP Snooping, MLD Snooping and Multicast VLAN Registration |
| Security | Supports 802.1X, MAB, Port Security, Dynamic ARP Inspection, IP Source Guard and DoS Defense |
| Management | Supports Web GUI, CLI, SNMP v1/v2c/v3, RMON and Omada SDN Management |
| Port Mirroring | Supports Port Mirroring and RSPAN for Network Monitoring and Troubleshooting |
| GENERAL | |
|---|---|
| Switch Type | Lite L3 Managed Gigabit Stackable Switch |
| Network Ports | 48 × 10/100/1000Mbps RJ45 |
| Uplink Ports | 4 × 1/10Gbps SFP+ |
| PoE | Not Supported |
| Management | Omada SDN, Web GUI, CLI, SNMP and RMON |
| Stacking | Up to 4 Units |
| Stacking Bandwidth | Up to 40 Gbps |
| Power Supply | 100–240V AC, 50/60Hz |
| Fan | Fanless |
| Maximum Power Consumption | 34.1W at 220V/50Hz, 25°C |
| Maximum Heat Dissipation | 116.42 BTU/hr at 220V/50Hz, 25°C |
| Dimensions | 440 × 220 × 44 mm |
| Installation Method | 19-Inch Rack Mount |
| Operating Temperature | -5°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 90% RH, Non-Condensing |
Note: The TP-Link Omada SG5452X is a 48-port Gigabit Stackable Lite L3 Managed Switch featuring 4 × 1/10Gbps SFP+ slots. It provides 176 Gbps switching capacity, 130.94 Mpps packet forwarding performance, a 16K MAC address table and 12 Mbit packet buffer. It is designed for enterprise and SMB networks requiring high-density Gigabit access, 10G fiber uplinks, Layer 3 routing and network redundancy.
Important: The SG5452X is a non-PoE switch with 48 × Gigabit RJ45 ports and 4 × 1/10G SFP+ slots. The SFP+ ports can be used for uplinks and physical stacking. It supports up to 4 stacked units with up to 40Gbps stacking bandwidth.
