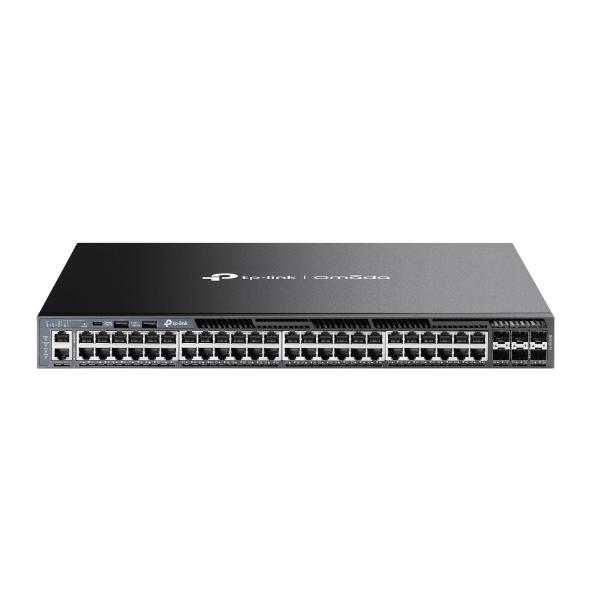

Specifications TP-Link Omada SG6654X
| Features | Description |
|---|---|
| Device Type | 48-Port Gigabit Stackable L3 Managed Switch with 6 × 10G SFP+ Slots |
| Network Ports | 48 × 10/100/1000Mbps RJ45 Ports |
| Uplink Ports | 6 × 10Gbps SFP+ Slots |
| Switch Type | L3 Managed Stackable Switch |
| Switching Capacity | 216 Gbps |
| Packet Forwarding Rate | 160.7 Mpps |
| MAC Address Table | 32K |
| Packet Buffer Memory | 3 MB |
| Jumbo Frame | 9 KB |
| Stacking | Physical Stacking up to 8 Units |
| Stack Bandwidth | Up to 120 Gbps |
| Routing | Static Routing, RIP, RIPng, OSPF, OSPFv3, ECMP and VRRP |
| Multicast Routing | PIM-DM and PIM-SM |
| Link Aggregation | Static Link Aggregation and LACP |
| QoS | 8 Priority Queues, 802.1p/DSCP Priority and Bandwidth Control |
| Management | Omada SDN, Web GUI, CLI, SNMP and RMON |
| RJ45 Ports | 48 × 10/100/1000Mbps |
|---|---|
| SFP+ Slots | 6 × 10Gbps SFP+ |
| Management Port | 1 × RJ45 Management Port |
| Console Ports | 1 × RJ45 Console Port, 1 × USB Type-C Console Port |
| USB Ports | 2 × USB 2.0 |
| Switching Capacity | 216 Gbps |
| Packet Forwarding Rate | 160.7 Mpps |
| MAC Address Table | 32K |
| Packet Buffer Memory | 3 MB |
| Jumbo Frame | 9 KB |
| Transmission Method | Store-and-Forward |
| Flow Control | IEEE 802.3x Flow Control |
| PoE | Not Supported |
| SMART FEATURES | |
|---|---|
| 48-Port Gigabit Ethernet | Provides 48 × 10/100/1000Mbps RJ45 Ports for Gigabit Network Connectivity |
| 10G SFP+ Uplinks | Provides 6 × 10Gbps SFP+ Slots for High-Bandwidth Uplink, Aggregation and Stacking Applications |
| Physical Stacking | Supports Physical Stacking of up to 8 Units with up to 120Gbps Stack Bandwidth |
| Layer 3 Routing | Supports Static Routing, RIP, RIPng, OSPF, OSPFv3, ECMP and VRRP |
| Multicast Routing | Supports PIM-DM and PIM-SM for Efficient Multicast Routing |
| Omada SDN | Supports Centralized Cloud Management and Monitoring Through the Omada Software-Defined Networking Platform |
| VLAN | Supports 802.1Q VLAN and Advanced VLAN Features for Network Segmentation |
| Link Aggregation | Supports Static Link Aggregation and LACP for Increased Bandwidth and Link Redundancy |
| QoS | Supports 8 Priority Queues, 802.1p/DSCP Priority, Bandwidth Control and Queue Scheduling |
| ACL | Supports IPv4/IPv6 ACL for Network Traffic Filtering and Security |
| IGMP Snooping | Supports IGMP Snooping for Optimized Multicast Traffic Delivery |
| Spanning Tree | Supports STP, RSTP and MSTP for Loop Prevention and Network Redundancy |
| ERPS | Supports Ethernet Ring Protection Switching for Rapid Protection and Recovery |
| VRRP | Supports VRRP for Gateway Redundancy and High Availability |
| DHCP | Supports DHCP Server and DHCP Relay |
| Security | Supports 802.1X, Port Security, ACL, DoS Defense and Other Network Security Features |
| DDM | Supports Digital Diagnostic Monitoring for Compatible SFP+ Modules |
| Port Mirroring | Supports Port Mirroring for Network Monitoring and Troubleshooting |
| Redundant Power | Features Two Internal Fixed Power Supply Modules for Increased Power Reliability |
| GENERAL | |
|---|---|
| Switch Type | L3 Managed Gigabit Stackable Switch |
| Network Ports | 48 × 10/100/1000Mbps RJ45 |
| Uplink Ports | 6 × 10Gbps SFP+ |
| PoE | Not Supported |
| Management | Omada SDN, Web GUI, CLI, SNMP and RMON |
| Stacking | Up to 8 Units |
| Stack Bandwidth | Up to 120 Gbps |
| Power Supply | 2 × Internal Fixed Power Supply Modules, 100–240V AC, 50/60Hz |
| Fan | 4 × Internal Fixed Fans |
| Maximum Power Consumption | 39.8 W at 220V/50Hz |
| Maximum Heat Dissipation | 135.81 BTU/hr at 220V/50Hz |
| Dimensions | 440 × 380 × 44 mm |
| Installation Method | 19-Inch Rack Mount |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 90% RH, Non-Condensing |
Note: The TP-Link Omada SG6654X is a high-performance L3 managed stackable switch featuring 48 × 10/100/1000Mbps RJ45 ports and 6 × 10Gbps SFP+ slots. It provides 216 Gbps switching capacity, 160.7 Mpps packet forwarding performance, a 32K MAC address table and 3 MB packet buffer memory. It is designed for enterprise, SMB and ISP aggregation networks requiring Gigabit access, 10G uplinks, Layer 3 routing and high availability.
Important: The SG6654X is a non-PoE switch with 48 × Gigabit RJ45 ports and 6 × 10Gbps SFP+ slots. The SFP+ ports can also be used for physical stacking. Up to 8 units can be stacked, with up to 120Gbps stack bandwidth. It also provides two internal fixed power supply modules, four internal fixed fans and extensive Layer 3 routing capabilities.
