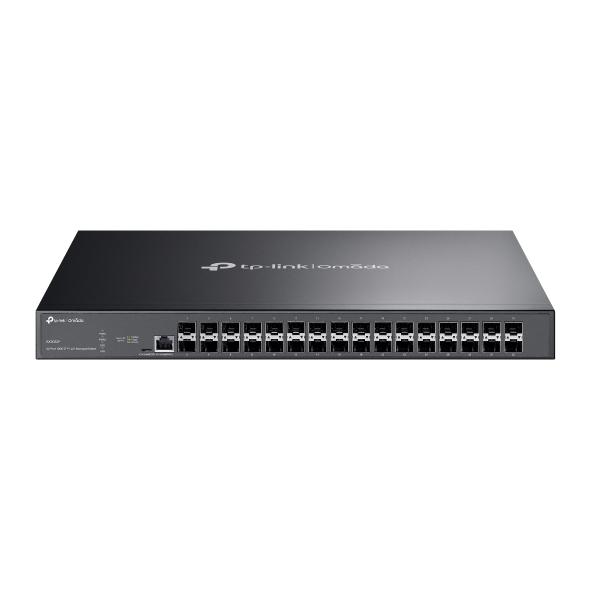

Specifications TP-Link Omada SX3032F
| Features | Description |
|---|---|
| Device Type | 32-Port 10GE SFP+ L2+ Managed Switch |
| Network Ports | 32 × 1/10Gbps SFP+ Slots |
| Console Ports | 1 × RJ45 Console Port, 1 × Micro-USB Console Port |
| Switch Type | L2+ Managed Switch |
| Switching Capacity | 640 Gbps |
| Packet Forwarding Rate | 476.16 Mpps |
| MAC Address Table | 32K |
| Packet Buffer Memory | 24 Mbit |
| Jumbo Frame | 9 KB |
| VLAN | 802.1Q VLAN and Advanced VLAN Features |
| Routing | IPv4/IPv6 Static Routing |
| Link Aggregation | Static Link Aggregation and LACP |
| QoS | 802.1p CoS/DSCP Priority, 8 Priority Queues and Bandwidth Control |
| Management | Omada SDN, Web GUI, CLI, SNMP and RMON |
| Design | Metal Housing with Rack-Mountable Design |
| SFP+ Slots | 32 × 1/10Gbps SFP+ |
|---|---|
| Console Ports | 1 × RJ45 Console, 1 × Micro-USB Console |
| Port Standard | IEEE 802.3z 1000BASE-X, IEEE 802.3ae 10GBASE-SR/LR |
| Switching Capacity | 640 Gbps |
| Packet Forwarding Rate | 476.16 Mpps |
| MAC Address Table | 32K |
| Packet Buffer Memory | 24 Mbit |
| Jumbo Frame | 9 KB |
| Transmission Method | Store-and-Forward |
| Flow Control | IEEE 802.3x Flow Control |
| PoE | Not Supported |
| SMART FEATURES | |
|---|---|
| 32-Port 10G SFP+ | Provides 32 × 1/10Gbps SFP+ Slots for High-Bandwidth Fiber Network Connections |
| Omada SDN | Supports Centralized Cloud-Based Management and Monitoring Through Omada Hardware, Software or Cloud-Based Controllers |
| Static Routing | Supports IPv4/IPv6 Static Routing for Efficient Internal Network Traffic Management |
| 802.1Q VLAN | Supports VLAN Segmentation for Network Isolation and Traffic Management |
| Link Aggregation | Supports Static Link Aggregation and LACP for Increased Bandwidth and Link Redundancy |
| QoS | Supports 802.1p CoS/DSCP Priority, 8 Priority Queues and SP/WRR/SP+WRR Queue Scheduling |
| ACL | Supports Access Control Lists for Network Traffic Filtering and Security |
| IGMP Snooping | Supports IGMP Snooping for Optimized Multicast Traffic Delivery |
| Spanning Tree | Supports Spanning Tree Protocol for Loop Prevention and Network Redundancy |
| ERPS | Supports Ethernet Ring Protection Switching for Rapid Protection and Recovery in Ring Network Topologies |
| OAM | Supports Ethernet Operations, Administration and Maintenance Functions |
| DDM | Supports Digital Diagnostic Monitoring for Compatible SFP+ Modules |
| Port Mirroring | Supports Port Mirroring for Network Monitoring and Troubleshooting |
| DHCP | Supports DHCP Server, DHCP Relay and DHCP L2 Relay |
| IPv6 Support | Supports IPv6 Interfaces, IPv6 Management, IPv6 ACL and IPv6 Network Applications |
| Network Security | Supports 802.1X, RADIUS, DHCP Snooping, IP Source Guard, DoS Protection and Other Security Features |
| Redundant Power | Features 1+1 Redundant Internal Power Supplies for Increased System Reliability |
| GENERAL | |
|---|---|
| Switch Type | L2+ Managed 10G Fiber Switch |
| Network Ports | 32 × 1/10Gbps SFP+ |
| RJ45 Network Ports | None |
| PoE | Not Supported |
| Management | Omada SDN, Web GUI, CLI, SNMP and RMON |
| Power Supply | 1+1 Redundant Internal Power Supply, 100–240V AC, 50/60Hz |
| Fan | 2 × Internal Fixed Fans |
| Maximum Power Consumption | 49.4 W |
| Dimensions | 440 × 330 × 44 mm |
| Installation Method | 19-Inch Rack Mount |
| Operating Temperature | -5°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 90% RH, Non-Condensing |
| Certification | CE, FCC and RoHS |
Note: The TP-Link Omada SX3032F is a 32-port 10GE SFP+ L2+ managed switch featuring 32 × 1/10Gbps SFP+ slots, 640 Gbps switching capacity, 476.16 Mpps packet forwarding performance, a 32K MAC address table and 24 Mbit packet buffer memory. It is designed for 10G fiber aggregation, core networks, servers, NAS systems and high-bandwidth network backbones.
Important: The SX3032F is a fiber-only switch. It has no RJ45 network ports and does not provide PoE. All 32 network ports are SFP+ and support 1Gbps/10Gbps connections. It also features 1+1 redundant internal power supplies for improved reliability.
