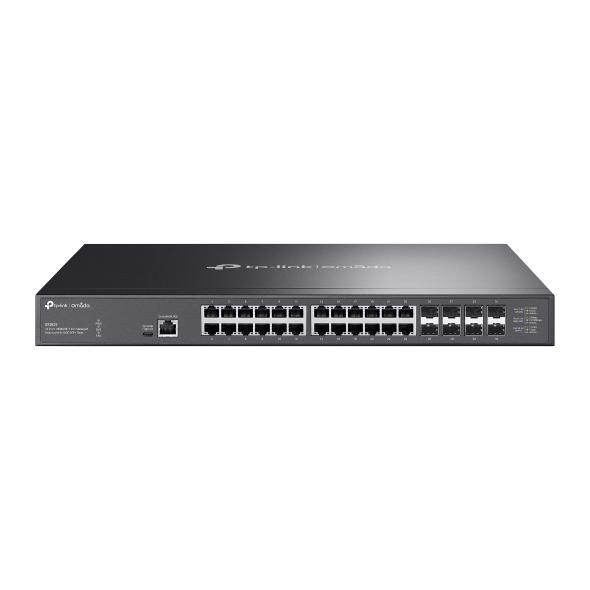

Specifications TP-Link Omada SX3832
| Features | Description |
|---|---|
| Device Type | 24-Port 10GBASE-T L2+ Managed Switch with 8 × 10G SFP+ Slots |
| Network Ports | 24 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports |
| Uplink Ports | 8 × 1Gbps/10Gbps SFP+ Slots |
| Switch Type | L2+ Managed Switch |
| Switching Capacity | 640 Gbps |
| Packet Forwarding Rate | 240 Mpps |
| MAC Address Table | 32K |
| Packet Buffer Memory | 24 Mbit |
| Jumbo Frame | 9 KB |
| VLAN | 802.1Q VLAN and VLAN-related network segmentation features |
| Routing | IPv4/IPv6 Static Routing |
| Link Aggregation | Static Link Aggregation and LACP |
| QoS | 802.1p CoS/DSCP Priority, 8 Priority Queues and Bandwidth Control |
| Management | Omada SDN, Web GUI, CLI, SNMP and RMON |
| Design | Metal Housing with Fan Cooling |
| RJ45 Ports | 24 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps |
|---|---|
| SFP+ Slots | 8 × 1/10Gbps SFP+ |
| Console Ports | 1 × RJ45 Console Port, 1 × USB Type-C Console Port |
| Auto Negotiation | Supported |
| Auto MDI/MDIX | Supported |
| Switching Capacity | 640 Gbps |
| Packet Forwarding Rate | 240 Mpps |
| MAC Address Table | 32K |
| Packet Buffer Memory | 24 Mbit |
| Jumbo Frame | 9 KB |
| Transmission Method | Store-and-Forward |
| Flow Control | IEEE 802.3x Flow Control |
| PoE | Not Supported |
| SMART FEATURES | |
|---|---|
| 24-Port 10GBASE-T | Provides 24 × RJ45 Ports Supporting 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps Network Speeds |
| 10G SFP+ Ports | Provides 8 × 1/10Gbps SFP+ Slots for High-Bandwidth Fiber or DAC Network Connections |
| Omada SDN | Supports Centralized Cloud Management and Monitoring Through the Omada Software-Defined Networking Platform |
| Static Routing | Supports IPv4/IPv6 Static Routing for Efficient Internal Network Traffic Management |
| 802.1Q VLAN | Supports VLAN Segmentation for Network Isolation and Traffic Management |
| Link Aggregation | Supports Static Link Aggregation and LACP for Increased Bandwidth and Link Redundancy |
| QoS | Supports 802.1p CoS/DSCP Priority, 8 Priority Queues and Bandwidth Control |
| ACL | Supports Access Control Lists for Controlling Network Traffic and Improving Network Security |
| IGMP Snooping | Supports IGMP Snooping for Optimized Multicast Traffic Delivery |
| Spanning Tree | Supports STP, RSTP and MSTP for Loop Prevention and Network Redundancy |
| ERPS | Supports Ethernet Ring Protection Switching for Rapid Protection and Recovery in Ring Network Topologies |
| OAM | Supports Ethernet Operations, Administration and Maintenance Functions |
| DDM | Supports Digital Diagnostic Monitoring for Compatible SFP+ Modules |
| Port Mirroring | Copies Network Traffic From Selected Ports to a Monitoring Port for Network Analysis and Troubleshooting |
| Security | Supports 802.1X, DHCP Snooping, IP Source Guard, Port Security, DoS Protection and Storm Control |
| IPv6 Support | Supports IPv6 Management, IPv6 ACL, IPv6 Interfaces and Static IPv6 Routing |
| GENERAL | |
|---|---|
| Switch Type | L2+ Managed 10G Multi-Gigabit Switch |
| Network Ports | 24 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 |
| Uplink Ports | 8 × 1/10Gbps SFP+ |
| PoE | Not Supported |
| Management | Omada SDN, Web GUI, CLI, SNMP and RMON |
| Installation Method | 19-Inch Rack Mount |
| Enclosure | Metal Housing |
| Fan | 2 × Fans |
| Power Supply | 100–240V AC, 50/60Hz |
| Maximum Power Consumption | 104.9W at 110V / 106.5W at 220V |
| Maximum Heat Dissipation | 357.81 BTU/hr at 110V / 363.23 BTU/hr at 220V |
| Dimensions | 440 × 220 × 44 mm |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 90% RH, Non-Condensing |
| Certification | CE, FCC and RoHS |
Note: The TP-Link Omada SX3832 is a high-performance 24-port 10GBASE-T L2+ managed switch featuring 24 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 ports and 8 × 1/10Gbps SFP+ slots. It provides 640 Gbps switching capacity, 240 Mpps packet forwarding performance, a 32K MAC address table and 24 Mbit packet buffer memory. It is designed for 10G Multi-Gigabit networks, servers, NAS, workstations, Wi-Fi 6/7 access points and high-speed network backbones.
Important: The SX3832 is a non-PoE switch. All 24 RJ45 ports support speeds up to 10Gbps, while all 8 SFP+ slots support 1Gbps/10Gbps. It supports Omada centralized management, Static Routing, VLAN, ACL, QoS, IGMP Snooping, ERPS, OAM and DDM. The switch uses 2 fans and is designed for rack-mount installation.
