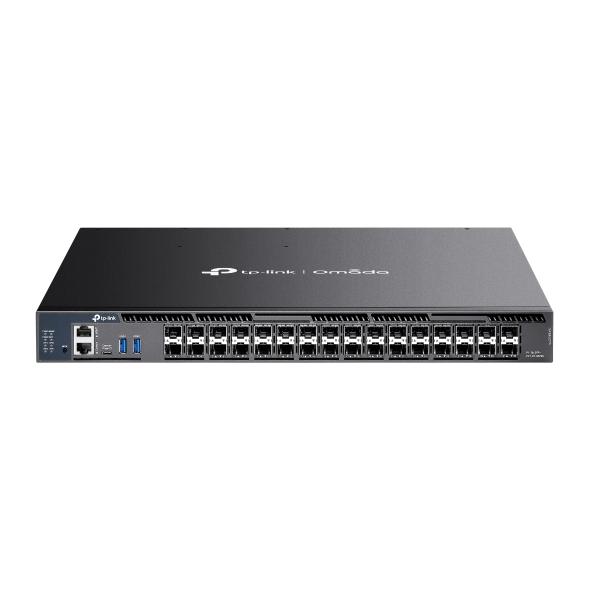

Specifications TP-Link Omada SX6632YF
| Features | Description |
|---|---|
| Device Type | 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 × 25G SFP28 Slots |
| Network Ports | 26 × 1/10Gbps SFP+ Slots |
| High-Speed Ports | 6 × 10/25Gbps SFP28 Slots |
| Switch Type | L3 Managed Aggregation Switch |
| Switching Capacity | 820 Gbps |
| Packet Forwarding Rate | 610.1 Mpps |
| MAC Address Table | 128K |
| Packet Buffer Memory | 8 MB |
| Jumbo Frame | 9 KB |
| Stacking | Physical Stacking up to 8 Units |
| Stack Bandwidth | Up to 300 Gbps |
| Routing | Static Routing, RIP, RIPng, OSPF, OSPFv3, ECMP and VRRP |
| Multicast Routing | PIM-DM and PIM-SM |
| Link Aggregation | Static Link Aggregation and 802.3ad LACP |
| QoS | 8 Priority Queues, 802.1p/DSCP Priority and Bandwidth Control |
| Management | Omada SDN, Web GUI, CLI, SNMP and RMON |
| SFP+ Slots | 26 × 1/10Gbps SFP+ |
|---|---|
| SFP28 Slots | 6 × 10/25Gbps SFP28 |
| Management Port | 1 × RJ45 Management Port |
| Console Ports | 1 × RJ45 Console Port, 1 × USB Type-C Console Port |
| USB Ports | 2 × USB 3.0 |
| Switching Capacity | 820 Gbps |
| Packet Forwarding Rate | 610.1 Mpps |
| MAC Address Table | 128K |
| Packet Buffer Memory | 8 MB |
| Jumbo Frame | 9 KB |
| PoE | Not Supported |
| SMART FEATURES | |
|---|---|
| 26-Port 10G SFP+ | Provides 26 × 1/10Gbps SFP+ Slots for High-Bandwidth Fiber Network Connections |
| 6-Port 25G SFP28 | Provides 6 × 10/25Gbps SFP28 Slots for High-Speed Uplink, Aggregation and Stacking Applications |
| Physical Stacking | Supports Physical Stacking of up to 8 Units with up to 300Gbps Stack Bandwidth |
| Layer 3 Routing | Supports Static Routing, RIP, RIPng, OSPF, OSPFv3, ECMP and VRRP |
| Multicast Routing | Supports PIM-DM and PIM-SM for Efficient Multicast Routing |
| Omada SDN | Supports Centralized Management and Monitoring Through the Omada Software-Defined Networking Platform |
| VLAN | Supports 802.1Q VLAN and Advanced VLAN Features for Network Segmentation |
| Link Aggregation | Supports Static Link Aggregation and LACP for Increased Bandwidth and Link Redundancy |
| QoS | Supports Class of Service, 802.1p/DSCP Priority, 8 Priority Queues and Bandwidth Control |
| ACL | Supports IPv4/IPv6 ACL for Network Traffic Filtering and Security |
| IGMP Snooping | Supports IGMP Snooping with up to 4,093 IGMP Groups |
| Spanning Tree | Supports STP, RSTP and MSTP for Loop Prevention and Network Redundancy |
| ERPS | Supports Ethernet Ring Protection Switching with up to 64 ERPS Rings |
| VRRP | Supports VRRP for Gateway Redundancy and High Availability |
| DHCP | Supports DHCP Server and DHCP Relay |
| Security | Supports 802.1X, MAB, ACL, Port Security, Dynamic ARP Inspection, IP Source Guard and DoS Defense |
| DDM | Supports Digital Diagnostic Monitoring for Compatible Optical Modules |
| Port Mirroring | Supports Port Mirroring for Network Monitoring and Troubleshooting |
| Redundant Power | Supports Dual Field-Replaceable and Hot-Swappable Redundant Power Supplies |
| Redundant Fans | 4 × Field-Replaceable and Hot-Swappable Fans with N+1 Redundancy |
| GENERAL | |
|---|---|
| Switch Type | L3 Managed 10G/25G Fiber Aggregation Switch |
| Network Ports | 26 × 1/10Gbps SFP+ |
| High-Speed Ports | 6 × 10/25Gbps SFP28 |
| RJ45 Network Ports | 1 × RJ45 Management Port |
| PoE | Not Supported |
| Management | Omada SDN, Web GUI, CLI, SNMP and RMON |
| Stacking | Up to 8 Units |
| Stack Bandwidth | Up to 300 Gbps |
| Power Supply | 2 × Field-Replaceable Hot-Swappable Redundant Power Supplies, 100–240V AC, 50/60Hz |
| Included Power Supply | 1 × PSM550-AC Included by Default; Additional Redundant Power Supply Sold Separately |
| Fan | 4 × Field-Replaceable Hot-Swappable Fans, N+1 Redundant |
| Maximum Power Consumption | 86.7 W at 110V/60Hz |
| Dimensions | 440 × 380 × 44 mm |
| Installation Method | 19-Inch Rack Mount |
| Operating Temperature | -5°C to 50°C at 300m -5°C to 45°C at 2,000m -5°C to 40°C at 3,000m |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 90% RH, Non-Condensing |
Note: The TP-Link Omada SX6632YF is a high-performance L3 managed fiber aggregation switch featuring 26 × 1/10Gbps SFP+ slots and 6 × 10/25Gbps SFP28 slots. It provides 820 Gbps switching capacity, 610.1 Mpps packet forwarding performance, a 128K MAC address table and 8 MB packet buffer memory. It is designed for enterprise, SMB and ISP aggregation networks requiring high-speed 10G/25G connectivity, Layer 3 routing and high availability.
Important: The SX6632YF is a fiber-only aggregation switch with 26 × 10G SFP+ and 6 × 25G SFP28 ports. It has no PoE ports. The 25G SFP28 ports can also operate at 10Gbps and are used for high-speed uplinks and physical stacking. Up to 8 units can be physically stacked, with up to 300Gbps stack bandwidth. The switch also supports redundant power supplies and N+1 redundant hot-swappable fans.
