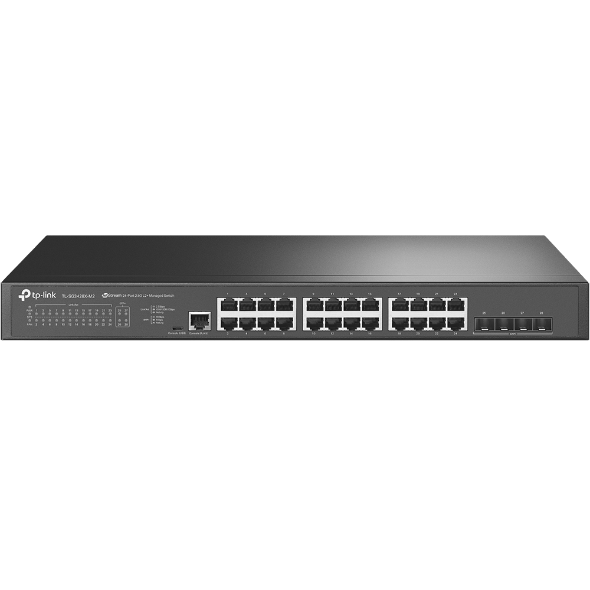

Specifications TP-Link SG3428X-M2
| Features | Description |
|---|---|
| Device Type | 24-Port 2.5GBASE-T L2+ Managed Switch with 4 × 10G SFP+ Slots |
| Network Ports | 24 × 10/100/1000Mbps/2.5Gbps RJ45 Ports |
| Uplink Ports | 4 × 10Gbps SFP+ Slots |
| Switch Type | L2+ Managed Switch |
| Switching Capacity | 200 Gbps |
| Packet Forwarding Rate | 148.80 Mpps |
| MAC Address Table | 32K |
| Packet Buffer Memory | 16 Mbit |
| Jumbo Frame | 9 KB |
| VLAN | 802.1Q VLAN, MAC VLAN, Protocol VLAN, Voice VLAN and Private VLAN |
| Routing | Static IPv4/IPv6 Routing |
| Link Aggregation | Static Link Aggregation and LACP |
| QoS | 802.1p CoS/DSCP Priority, 8 Priority Queues and Bandwidth Control |
| Management | Omada SDN, Web, CLI, SNMP and RMON |
| Design | Metal Housing with Fan Cooling |
| RJ45 Ports | 24 × 10/100/1000Mbps/2.5Gbps |
|---|---|
| SFP+ Slots | 4 × 10Gbps SFP+ |
| Console Ports | 1 × RJ45 Console Port, 1 × Micro-USB Console Port |
| Auto Negotiation | Supported |
| Auto MDI/MDIX | Supported |
| Switching Capacity | 200 Gbps |
| Packet Forwarding Rate | 148.80 Mpps |
| MAC Address Table | 32K |
| Packet Buffer Memory | 16 Mbit |
| Jumbo Frame | 9 KB |
| Transmission Method | Store-and-Forward |
| Flow Control | IEEE 802.3x Flow Control |
| PoE | Not Supported |
| SMART FEATURES | |
|---|---|
| 24-Port 2.5G | Provides 24 × 10/100/1000Mbps/2.5Gbps RJ45 Ports for High-Speed Multi-Gigabit Network Connectivity |
| 10G SFP+ Uplinks | Provides 4 × 10Gbps SFP+ Slots for High-Bandwidth Fiber or DAC Uplink Connections |
| Omada SDN | Supports Centralized Cloud-Based Management and Monitoring Through the Omada Software-Defined Networking Platform |
| 802.1Q VLAN | Supports VLAN Segmentation for Network Isolation and Improved Network Security |
| L2+ Static Routing | Supports IPv4/IPv6 Static Routing for Efficient Internal Network Traffic Management |
| Link Aggregation | Supports Static Link Aggregation and LACP for Increased Bandwidth and Link Redundancy |
| QoS | Supports 802.1p CoS/DSCP Priority, 8 Priority Queues and Bandwidth Control for Traffic Management |
| ACL | Supports Access Control Lists for Controlling Network Traffic and Improving Network Security |
| IGMP Snooping | Supports IGMP Snooping for Optimized Multicast Traffic Delivery |
| Spanning Tree | Supports STP, RSTP and MSTP for Loop Prevention and Network Redundancy |
| ERPS | Supports Ethernet Ring Protection Switching for Rapid Protection and Recovery in Ring Network Topologies |
| OAM | Supports Operations, Administration and Maintenance Functions for Ethernet Network Monitoring |
| DDM | Supports Digital Diagnostic Monitoring for Compatible SFP/SFP+ Modules |
| Port Mirroring | Copies Network Traffic From Selected Ports to a Monitoring Port for Network Analysis and Troubleshooting |
| Security | Supports 802.1X Authentication, DHCP Snooping, IP Source Guard, DoS Protection and Other Network Security Features |
| IPv6 Support | Supports IPv6 Management, IPv6 Interfaces, IPv6 ACL and IPv6 Static Routing |
| GENERAL | |
|---|---|
| Switch Type | L2+ Managed Multi-Gigabit Switch |
| Network Ports | 24 × 10/100/1000Mbps/2.5Gbps RJ45 |
| Uplink Ports | 4 × 10Gbps SFP+ |
| PoE | Not Supported |
| Management | Omada SDN, Web, CLI, SNMP and RMON |
| Installation Method | 19-Inch Rack Mount |
| Enclosure | Metal Housing |
| Fan | 1 × Fan |
| Power Supply | 100–240V AC, 50/60Hz |
| Maximum Power Consumption | 45.1 W |
| Maximum Heat Dissipation | 154.38 BTU/h |
| Dimensions | 440 × 180 × 44 mm |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 90% RH, Non-Condensing |
| Certification | CE, FCC and RoHS |
Note: The TP-Link SG3428X-M2 is a 24-port 2.5GBASE-T L2+ managed switch featuring 24 × 10/100/1000Mbps/2.5Gbps RJ45 ports and 4 × 10Gbps SFP+ slots. It provides 200 Gbps switching capacity, 148.80 Mpps packet forwarding performance, a 32K MAC address table and 16 Mbit packet buffer memory. It is designed for high-speed business networks, Wi-Fi 6/6E/7 access points, NAS, servers, NVRs and 10G backbone networks.
Important: The SG3428X-M2 is a non-PoE switch. All 24 RJ45 ports support up to 2.5Gbps, while all 4 SFP+ slots support up to 10Gbps. It supports Omada centralized management, VLAN, ACL, QoS, IGMP Snooping, Static Routing, LACP, STP/RSTP/MSTP and ERPS.
