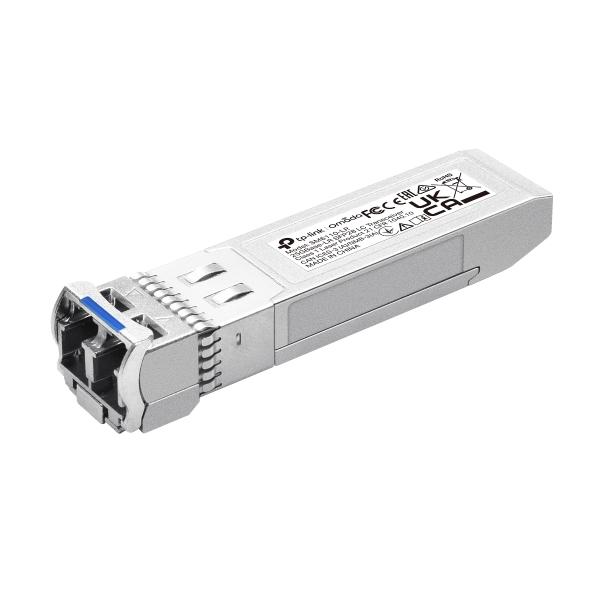

Specifications TP-Link SM6110-LR
| Features | Description |
|---|---|
| Product Type | 25GBase-LR SFP28 LC Transceiver |
| Form Factor | SFP28 |
| Data Rate | 25.78 Gbps / 10.31 Gbps |
| Standard | 10G/25GBASE-LR |
| Wavelength | 1310 nm |
| Fiber Type | 9/125 μm Single-Mode Fiber (SMF) |
| Maximum Cable Length | Up to 10 km |
| Connector | Duplex LC/UPC |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| Power Supply | 3.3 V |
| Power Consumption | ≤ 1.2 W |
| Standards & Compliance | Description |
|---|---|
| Standards | IEEE 802.3ae, IEEE 802.3cc, SFF-8402, SFF-8431, SFF-8432, SFF-8472, eCPRI, CPRI, TCP/IP |
| Regulatory Compliance | CE, FCC, RoHS |
| Physical & Environmental | Description |
|---|---|
| Dimension | 57 × 14 × 12 mm |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 90% RH, Non-Condensing |
Note: The TP-Link SM6110-LR is an Omada 25GBase-LR SFP28 LC Transceiver designed for 10G/25G Ethernet connections over 9/125 μm single-mode fiber. It operates at 1310 nm and supports transmission distances up to 10 km with Duplex LC/UPC connectors. The transceiver supports DDM, SFP-MSA, and hot-swappable installation.
