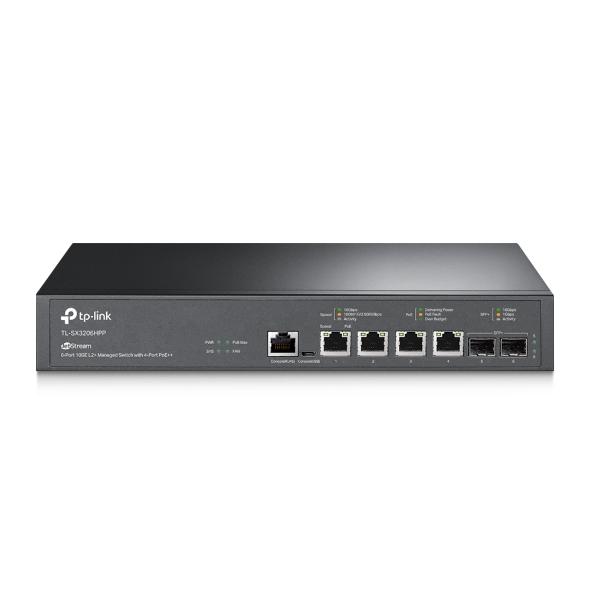

Specifications TP-Link Omada SX3206HPP
| Features | Description |
|---|---|
| Device Type | 6-Port 10GE L2+ Managed Switch with 4-Port PoE++ |
| Network Ports | 4 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps PoE++ RJ45 Ports |
| Uplink Ports | 2 × 10Gbps SFP+ Slots |
| Switch Type | L2+ Managed Switch |
| PoE Standard | IEEE 802.3af/at/bt (Type 3) |
| PoE Power per Port | Up to 60W |
| Total PoE Budget | 200W |
| Switching Capacity | 120 Gbps |
| Packet Forwarding Rate | 89.28 Mpps |
| MAC Address Table | 16K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| VLAN | 802.1Q VLAN, MAC VLAN, Protocol VLAN, Private VLAN and Voice VLAN |
| Routing | IPv4/IPv6 Static Routing |
| Link Aggregation | Static Link Aggregation and LACP |
| QoS | 802.1p CoS/DSCP Priority, 8 Priority Queues and Bandwidth Control |
| Management | Omada SDN, Web GUI, CLI, SNMP and RMON |
| PoE++ RJ45 Ports | 4 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps |
|---|---|
| SFP+ Slots | 2 × 10Gbps SFP+ |
| Console Ports | 1 × RJ45 Console Port, 1 × Micro-USB Console Port |
| PoE Standard | IEEE 802.3af/at/bt (Type 3) |
| PoE Power per Port | Up to 60W |
| Total PoE Budget | 200W |
| Switching Capacity | 120 Gbps |
| Packet Forwarding Rate | 89.28 Mpps |
| MAC Address Table | 16K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| Transmission Method | Store-and-Forward |
| Flow Control | IEEE 802.3x Flow Control |
| SMART FEATURES | |
|---|---|
| 10G Multi-Gigabit PoE++ | Provides 4 × RJ45 Ports Supporting 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps with PoE++ |
| 10G SFP+ Uplinks | Provides 2 × 10Gbps SFP+ Slots for High-Bandwidth Fiber or DAC Connections |
| PoE++ | Supports IEEE 802.3af/at/bt with up to 60W PoE Output per Port |
| 200W PoE Budget | Provides up to 200W Total PoE Power for High-Power Access Points, PTZ Cameras and Other PoE Devices |
| Omada SDN | Supports Centralized Cloud Management and Monitoring Through the Omada Software-Defined Networking Platform |
| Static Routing | Supports IPv4/IPv6 Static Routing for Efficient Internal Network Traffic Management |
| 802.1Q VLAN | Supports VLAN Segmentation for Network Isolation and Traffic Management |
| Link Aggregation | Supports Static Link Aggregation and LACP for Increased Bandwidth and Link Redundancy |
| QoS | Supports 802.1p CoS/DSCP Priority, 8 Priority Queues and Bandwidth Control |
| ACL | Supports Access Control Lists for Network Traffic Filtering and Security |
| IGMP Snooping | Supports IGMP Snooping and MLD Snooping for Optimized Multicast Traffic Delivery |
| Spanning Tree | Supports STP, RSTP and MSTP for Loop Prevention and Network Redundancy |
| ERPS | Supports Ethernet Ring Protection Switching for Rapid Protection and Recovery in Ring Network Topologies |
| OAM | Supports Ethernet Operations, Administration and Maintenance Functions |
| DDM | Supports Digital Diagnostic Monitoring for Compatible SFP+ Modules |
| 802.1X | Supports Port-Based and MAC-Based Authentication with RADIUS |
| DHCP Snooping | Helps Protect the Network Against Unauthorized DHCP Servers and DHCP-Based Attacks |
| IP Source Guard | Helps Prevent IP Address Spoofing and Unauthorized Network Access |
| Port Security | Controls Access to Network Ports Based on MAC Addresses |
| Storm Control | Controls Broadcast, Multicast and Unknown Unicast Traffic to Prevent Network Congestion |
| GENERAL | |
|---|---|
| Switch Type | L2+ Managed 10G Multi-Gigabit PoE++ Switch |
| Network Ports | 4 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps PoE++ RJ45 |
| Uplink Ports | 2 × 10Gbps SFP+ |
| PoE Standard | IEEE 802.3af/at/bt (Type 3) |
| PoE Power per Port | Up to 60W |
| Total PoE Budget | 200W |
| Management | Omada SDN, Web GUI, CLI, SNMP and RMON |
| Installation Method | Desktop or 19-Inch Rack Mount |
| Enclosure | Metal Housing |
| Fan | 2 × Fans |
| Power Supply | 100–240V AC, 50/60Hz |
| Maximum Power Consumption | 244.90W at 110V/60Hz with 200W PoE Load |
| Maximum Heat Dissipation | 835.67 BTU/hr at 110V/60Hz with 200W PoE Load |
| Dimensions | 294 × 180 × 44 mm |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 90% RH, Non-Condensing |
| Certification | CE, FCC and RoHS |
Note: The TP-Link Omada SX3206HPP is a 6-port 10GE L2+ managed switch featuring 4 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps PoE++ RJ45 ports and 2 × 10Gbps SFP+ slots. It provides 120 Gbps switching capacity, 89.28 Mpps packet forwarding performance, a 16K MAC address table and 12 Mbit packet buffer memory. It is designed for high-speed Wi-Fi 6/7 access points, PTZ IP cameras, smart building devices and other high-bandwidth PoE applications.
Important: The SX3206HPP supports 10Gbps on all 4 RJ45 ports and up to 60W PoE++ per port, with a total PoE budget of 200W. The 2 SFP+ slots support 10Gbps connections. It can be installed on a desktop or mounted in a 19-inch rack.
