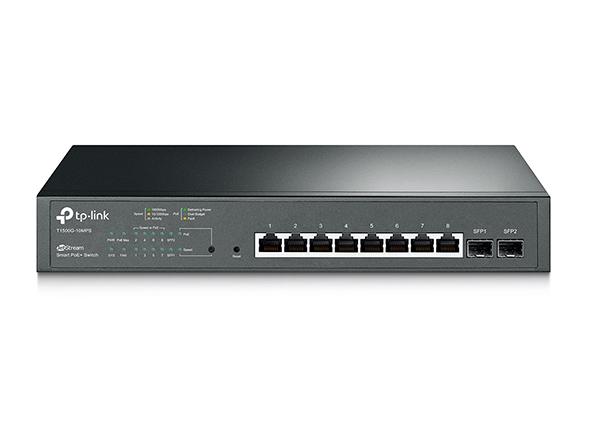

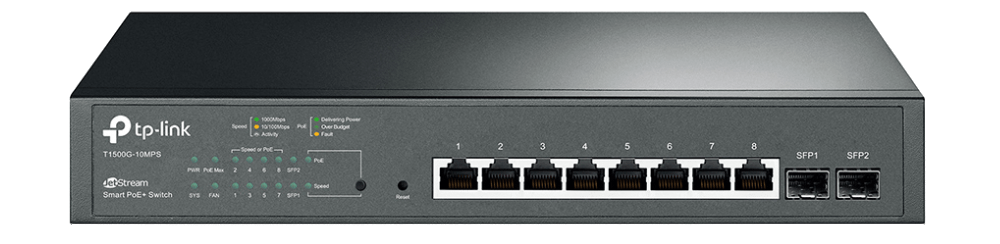

TP-Link T1500G-10MPS

JetStream 8-Port Gigabit Smart PoE+ Switch

8 × 10/100/1000Mbps PoE+ RJ45 ports and 2 × 100/1000Mbps SFP slots
116W total PoE budget with 802.3af/at support
20Gbps switching capacity with 14.9Mpps forwarding rate
Supports 802.1Q VLAN, Link Aggregation, STP/RSTP/MSTP and IGMP Snooping
Supports ACL, 802.1X, DHCP Snooping, Port Security and Storm Control
Web/CLI management with SNMP, RMON and rackmount design

Specifications TP-Link T1500G-10MPS

Features	Description
Product Type	8-Port Gigabit Smart PoE Switch with 2 SFP Slots
Network Ports	8 × 10/100/1000Mbps RJ45
Uplink Ports	2 × Gigabit SFP
PoE Standard	IEEE 802.3af/at
PoE Ports	8 × PoE+ Ports
PoE Budget	116W
Switching Capacity	20Gbps
Forwarding Rate	14.88Mpps
Management	Web-Based Management, CLI and SNMP
VLAN	802.1Q VLAN, Port-Based VLAN and MAC-Based VLAN
Protection	6kV Surge Protection on PoE Ports

HARDWARE
RJ45 Ports	8 × 10/100/1000Mbps Auto-Negotiation RJ45 Ports
SFP Ports	2 × 1000Mbps SFP Slots
Auto-Negotiation	Supported
Auto MDI/MDIX	Supported
PoE Ports	Ports 1–8
PoE Standard	IEEE 802.3af/at
PoE Power Budget	116W
PoE Port Power	Up to 30W per Port
Fan	Built-in Fan

PERFORMANCE
Switching Capacity	20Gbps
Forwarding Rate	14.88Mpps
MAC Address Table	8K Entries
Packet Buffer	2Mb
Jumbo Frame	Up to 9KB
Store-and-Forward	Supported

LAYER 2 FEATURES
VLAN	802.1Q VLAN, Port-Based VLAN, MAC-Based VLAN and Protocol-Based VLAN
VLAN ID	Up to 4094 VLAN IDs
Link Aggregation	LACP / Static Link Aggregation
Spanning Tree	STP / RSTP / MSTP
Loop Prevention	Loopback Detection
IGMP Snooping	IGMP v1/v2/v3 Snooping
MLD Snooping	MLD v1/v2 Snooping
802.3az	Energy Efficient Ethernet

NETWORK MANAGEMENT
Management Interface	Web-Based Management, CLI and SNMP
SNMP	SNMP v1/v2c/v3
RMON	Supported
Firmware Upgrade	Web-Based and TFTP
Configuration	Backup and Restore
Port Mirroring	Supported
System Diagnostics	Ping / Traceroute / Cable Diagnostics

SECURITY
Access Control	802.1X Authentication, MAC Authentication and Web Authentication
ACL	Time-Based ACL, MAC ACL and IP ACL
DoS Protection	Supported
IP-MAC Binding	Supported
DHCP Snooping	Supported
ARP Inspection	Dynamic ARP Inspection
Storm Control	Broadcast / Multicast / Unknown-Unicast Storm Control

POE FEATURES
PoE Standard	IEEE 802.3af / 802.3at
PoE Ports	8 × Gigabit PoE+ Ports
PoE Budget	116W
Maximum Per Port	30W
PoE Management	PoE Scheduling, PoE Priority and Port-Based PoE Control
PoE Auto Recovery	Automatically Detects and Restarts Unresponsive PoE Devices
PoE Protection	6kV Surge Protection

GENERAL

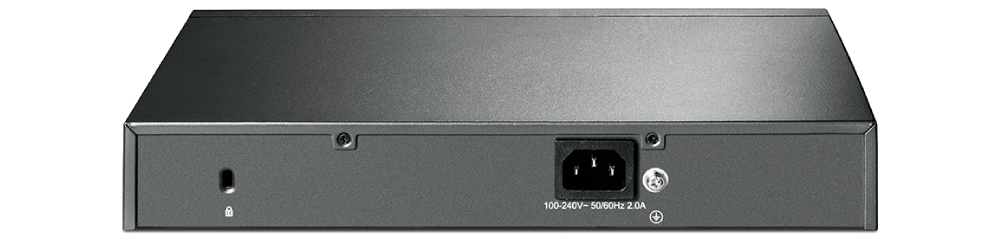

Power Supply	100–240V AC, 50/60Hz
Dimensions	294 × 180 × 44mm
Mounting	Desktop / Rack Mount
Operating Temperature	0°C to 40°C
Operating Humidity	10%–90% RH, Non-Condensing
Storage Temperature	-40°C to 70°C
Storage Humidity	5%–90% RH, Non-Condensing

Note: The TP-Link T1500G-10MPS is an 8-Port Gigabit Smart PoE+ Switch with 2 Gigabit SFP slots, providing a total PoE power budget of 116W. It supports IEEE 802.3af/at PoE, VLAN, STP/RSTP/MSTP, LACP, IGMP Snooping, ACL, 802.1X, DHCP Snooping and SNMP management.

Important: The T1500G-10MPS has 8 Gigabit PoE+ ports and 2 Gigabit SFP uplink slots. The total PoE budget is 116W, with up to 30W per PoE port. It is suitable for IP cameras, wireless access points, VoIP phones and other PoE devices.
