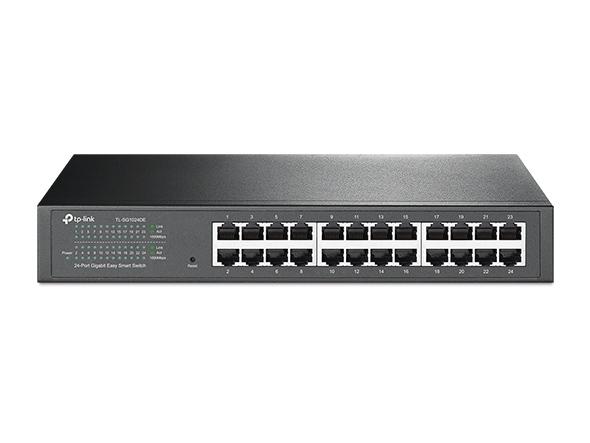

Specifications TP-Link TL-SG1024DE
| Features | Description |
|---|---|
| Device Type | 24-Port Gigabit Easy Smart Switch |
| Network Ports | 24 × 10/100/1000Mbps RJ45 Ports |
| Switch Type | Easy Smart Switch |
| Switching Capacity | 48 Gbps |
| Packet Forwarding Rate | 35.71 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 10 KB |
| VLAN | MTU VLAN, Port-Based VLAN and 802.1Q Tag VLAN; Up to 32 VLANs |
| QoS | Port-Based, 802.1p and DSCP Priority; 4 Priority Queues |
| Management | Web-Based GUI and Easy Smart Configuration Utility |
| Design | Fanless Metal Housing |
| Interface | 24 × 10/100/1000Mbps RJ45 Ports |
|---|---|
| Standards | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Port Speed | 10/100/1000Mbps |
| Auto Negotiation | Supported |
| Auto MDI/MDIX | Supported |
| Network Media | 10BASE-T: UTP Category 3/4/5, up to 100 m 100BASE-TX: UTP Category 5 or above, up to 100 m 1000BASE-T: UTP Category 5e or above, up to 100 m |
| Switching Capacity | 48 Gbps |
| Packet Forwarding Rate | 35.71 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 10 KB |
| Transmission Method | Store-and-Forward |
| Flow Control | IEEE 802.3x Flow Control |
| PoE | Not Supported |
| SMART FEATURES | |
|---|---|
| 24-Port Gigabit | Provides 24 × 10/100/1000Mbps Gigabit Ethernet Ports for High-Speed Wired Network Connectivity |
| 802.1Q VLAN | Supports 802.1Q Tag VLAN for Network Segmentation and Traffic Isolation, with Up to 32 VLANs Simultaneously |
| Port-Based VLAN | Allows Network Traffic to be Separated by Physical Port for Improved Network Organization and Security |
| MTU VLAN | Provides Port Isolation to Separate Network Traffic Between Ports |
| QoS | Supports Port-Based, 802.1p and DSCP Priority with 4 Priority Queues for Traffic Prioritization |
| IGMP Snooping | Supports IGMP Snooping v1/v2/v3 to Optimize Multicast Traffic Delivery |
| Link Aggregation | Supports Static Link Aggregation with Up to 8 Aggregation Groups and Up to 4 Ports per Group |
| Port Mirroring | Supports One-to-One and Many-to-One Port Mirroring for Network Monitoring and Troubleshooting |
| Loop Prevention | Helps Detect and Prevent Network Loops for More Stable Network Operation |
| Storm Control | Controls Excessive Broadcast, Multicast and Unknown-Unicast Traffic to Improve Network Stability |
| Rate Limit | Allows Network Traffic Bandwidth to be Limited on Individual Ports |
| Cable Diagnostics | Helps Detect Cable Connection Problems and Identify Cable Faults |
| Web Management | Provides Web-Based Management and Configuration Through a User Interface |
| Easy Smart Utility | Provides a Dedicated Configuration Utility for Centralized Switch Management |
| Fanless Design | Fanless Construction Provides Silent Operation and Reduced Maintenance Requirements |
| GENERAL | |
|---|---|
| Switch Type | Easy Smart Gigabit Switch |
| Network Ports | 24 × 10/100/1000Mbps RJ45 |
| PoE | Not Supported |
| Management | Web-Based GUI and Easy Smart Configuration Utility |
| Installation Method | Desktop / Rack Mount |
| Enclosure | Metal Housing |
| Fan | Fanless |
| Power Supply | 100–240V AC, 50/60Hz |
| Maximum Power Consumption | 13.66 W |
| Maximum Heat Dissipation | 46.45 BTU/h |
| Dimensions | 294 × 140 × 44 mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 90% RH, Non-Condensing |
| Certification | CE, FCC and RoHS |
Note: The TP-Link TL-SG1024DE is a 24-port Gigabit Easy Smart Switch featuring 24 × 10/100/1000Mbps RJ45 ports, 48 Gbps switching capacity, 35.71 Mpps packet forwarding performance and an 8K MAC address table. It provides VLAN, QoS, IGMP Snooping, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention, Storm Control and Rate Limit features for small and medium business networks.
Important: The TL-SG1024DE is an Easy Smart Switch and does not provide PoE or SFP ports. It supports web-based management and the Easy Smart Configuration Utility, making it more capable than an unmanaged switch while remaining simpler than a fully managed L2/L3 switch.
