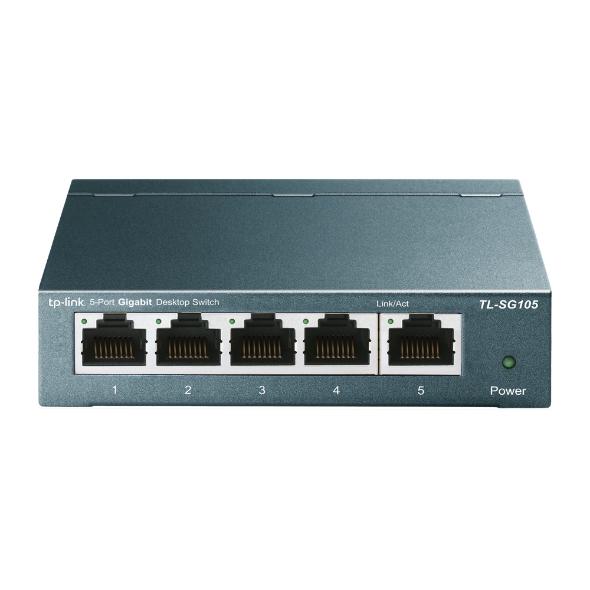

Specifications TP-Link TL-SG105
| Features | Description |
|---|---|
| Device Type | 5-Port 10/100/1000Mbps Gigabit Desktop Switch |
| Network Ports | 5 × 10/100/1000Mbps Auto-Negotiation RJ45 Ports |
| Switch Type | Unmanaged Switch |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 2K |
| Packet Buffer Memory | 1 Mb |
| Jumbo Frame | 16 KB |
| Flow Control | IEEE 802.3x Flow Control |
| QoS | 802.1p/DSCP QoS |
| Multicast | IGMP Snooping |
| Power Efficiency | Green Ethernet Technology |
| Design | Fanless Metal Housing |
| Interface | 5 × 10/100/1000Mbps RJ45 Ports |
|---|---|
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
| Port Speed | 10/100/1000Mbps |
| Auto Negotiation | Supported |
| Auto MDI/MDIX | Supported |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 2K |
| Packet Buffer Memory | 1 Mb |
| Jumbo Frame | 16 KB |
| Transmission Method | Store-and-Forward |
| Flow Control | IEEE 802.3x Flow Control |
| QoS | 802.1p/DSCP QoS |
| IGMP Snooping | Supported |
| PoE | Not Supported |
| SMART FEATURES | |
|---|---|
| 5-Port Gigabit | Provides 5 × 10/100/1000Mbps Gigabit Ethernet Ports for High-Speed Wired Network Connectivity |
| Plug and Play | Unmanaged Design Requires No Configuration and Allows Immediate Network Deployment |
| Green Ethernet | Automatically Adjusts Power Consumption According to Link Status and Cable Length to Reduce Energy Usage |
| 802.3x Flow Control | Provides Reliable Data Transmission by Controlling Network Traffic and Reducing Packet Loss |
| 802.1p/DSCP QoS | Prioritizes Network Traffic to Improve Performance for Delay-Sensitive Applications |
| IGMP Snooping | Optimizes Multicast Traffic Delivery to Reduce Unnecessary Multicast Traffic on the Network |
| Fanless Design | Silent Fanless Construction Provides Quiet and Maintenance-Free Operation |
| Flexible Mounting | Supports Desktop and Wall-Mount Installation |
| GENERAL | |
|---|---|
| Switch Type | Unmanaged Gigabit Desktop Switch |
| Network Ports | 5 × 10/100/1000Mbps RJ45 |
| PoE | Not Supported |
| Installation Method | Desktop / Wall Mount |
| Enclosure | Metal Housing |
| Fan | Fanless |
| Power Supply | External Power Adapter, 5VDC / 0.6A |
| Maximum Power Consumption | 3.0 W |
| Maximum Heat Dissipation | 10.23 BTU/h |
| Dimensions | 100 × 98 × 25 mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 90% RH, Non-Condensing |
| Certification | CE, FCC and RoHS |
Note: The TP-Link TL-SG105 is a 5-port 10/100/1000Mbps Gigabit unmanaged desktop switch featuring 5 Auto-Negotiation and Auto MDI/MDIX RJ45 ports, 10 Gbps switching capacity, 7.4 Mpps packet forwarding performance and a 2K MAC address table. It is suitable for expanding wired networks in homes, offices, workgroups and small businesses.
Important: The TL-SG105 is an unmanaged switch and does not provide PoE. It features Green Ethernet technology, IEEE 802.3x Flow Control, 802.1p/DSCP QoS, IGMP Snooping and a fanless metal housing. The switch supports plug-and-play operation without requiring configuration.
