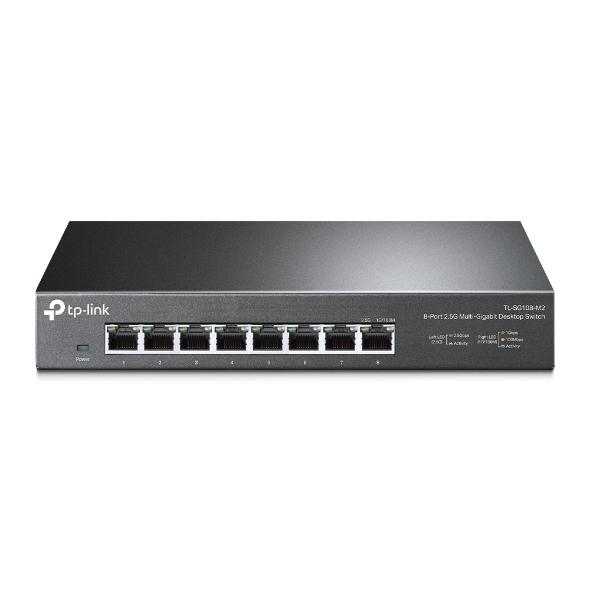

Specifications TP-Link TL-SG108-M2
| Features | Description |
|---|---|
| Device Type | 8-Port 2.5G Multi-Gigabit Desktop Switch |
| Network Ports | 8 × 100Mbps/1Gbps/2.5Gbps Auto-Negotiation RJ45 Ports |
| Switch Type | Unmanaged Switch |
| Switching Capacity | 40 Gbps |
| Packet Forwarding Rate | 29.8 Mpps |
| MAC Address Table | 4K |
| Jumbo Frame | 12 KB |
| Flow Control | IEEE 802.3x Flow Control |
| QoS | 802.1p/DSCP QoS |
| Loop Prevention | Supported |
| Design | Fanless Metal Housing |
| Interface | 8 × 100Mbps/1Gbps/2.5Gbps RJ45 Ports |
|---|---|
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x, IEEE 802.1p |
| Port Speed | 100Mbps / 1Gbps / 2.5Gbps |
| Auto Negotiation | Supported |
| Auto MDI/MDIX | Supported |
| Network Media | 100Base-TX: UTP Category 5 or Above, up to 100 m 1000Base-T: UTP Category 5e or Above, up to 100 m 2.5GBase-T: UTP Category 5e or Above, up to 100 m |
| Switching Capacity | 40 Gbps |
| Packet Forwarding Rate | 29.8 Mpps |
| MAC Address Table | 4K |
| Jumbo Frame | 12 KB |
| Transmission Method | Store-and-Forward |
| Flow Control | IEEE 802.3x Flow Control |
| QoS | 802.1p/DSCP QoS |
| PoE | Not Supported |
| SMART FEATURES | |
|---|---|
| 8-Port 2.5G | Provides Eight 100Mbps/1Gbps/2.5Gbps Multi-Gigabit Ethernet Ports for High-Speed Network Connectivity |
| Multi-Gigabit Compatibility | Supports 100Mbps, 1Gbps and 2.5Gbps Ethernet Speeds with Automatic Negotiation |
| 40Gbps Switching | Provides Up to 40Gbps Switching Capacity for High-Bandwidth Multi-Gigabit Network Traffic |
| Cat5e Compatibility | Supports 2.5Gbps Networking over Existing Cat5e Cabling, Helping Upgrade Network Speed Without Replacing Existing Cables |
| Loop Prevention | Automatically Detects and Blocks Network Loops to Help Maintain Stable Network Operation |
| 802.1p/DSCP QoS | Prioritizes Network Traffic to Improve Performance for Delay-Sensitive Applications |
| 802.3x Flow Control | Provides Reliable Data Transmission by Controlling Network Traffic and Reducing Packet Loss |
| Plug and Play | Unmanaged Design Requires No Configuration and Allows Immediate Network Deployment |
| Fanless Design | Silent Fanless Construction Provides Quiet and Maintenance-Free Operation |
| Flexible Mounting | Supports Desktop and Wall-Mount Installation |
| GENERAL | |
|---|---|
| Switch Type | Unmanaged 2.5G Multi-Gigabit Desktop Switch |
| Network Ports | 8 × 100Mbps/1Gbps/2.5Gbps RJ45 |
| PoE | Not Supported |
| Installation Method | Desktop / Wall Mount |
| Enclosure | Metal Housing |
| Fan | Fanless |
| Power Supply | External Power Adapter, 12VDC / 1A |
| Maximum Power Consumption | 8.93 W |
| Maximum Heat Dissipation | 30.362 BTU/hr |
| Dimensions | 226 × 131 × 35 mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 90% RH, Non-Condensing |
| Certification | CE, FCC and RoHS |
Note: The TP-Link TL-SG108-M2 is an 8-port 2.5G Multi-Gigabit unmanaged desktop switch featuring 8 × 100Mbps/1Gbps/2.5Gbps RJ45 ports, 40 Gbps switching capacity, 29.8 Mpps packet forwarding performance and a 4K MAC address table. It is suitable for 2.5G NAS, servers, workstations, gaming computers, Wi-Fi 6/6E/7 access points and high-speed LAN environments.
Important: The TL-SG108-M2 is an unmanaged switch and does not provide PoE. All eight ports support up to 2.5Gbps and can use existing Cat5e cabling for 2.5G connections up to 100 m. The switch features Loop Prevention, 802.1p/DSCP QoS, IEEE 802.3x Flow Control, Plug-and-Play operation and a fanless metal design.
