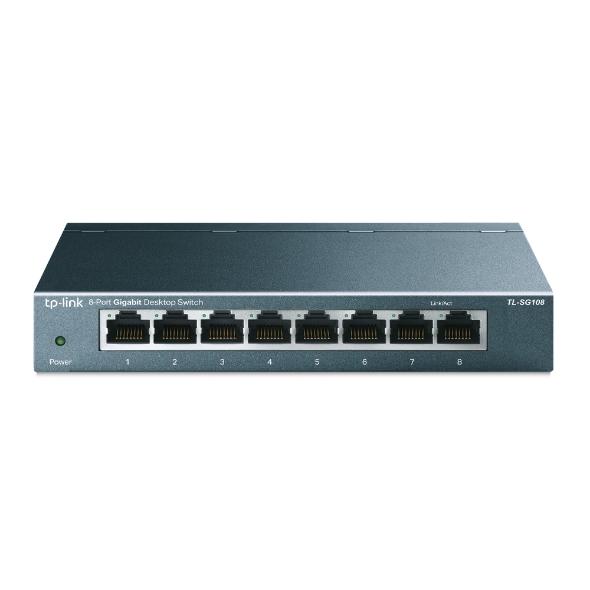

Specifications TP-Link TL-SG108
| Features | Description |
|---|---|
| Device Type | 8-Port 10/100/1000Mbps Gigabit Desktop Switch |
| Network Ports | 8 × 10/100/1000Mbps Auto-Negotiation RJ45 Ports |
| Switch Type | Unmanaged Switch |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4K |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 16 KB |
| Flow Control | IEEE 802.3x Flow Control |
| QoS | 802.1p/DSCP QoS |
| Multicast | IGMP Snooping |
| Power Efficiency | Green Ethernet Technology |
| Design | Fanless Steel Housing |
| Interface | 8 × 10/100/1000Mbps RJ45 Ports |
|---|---|
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
| Port Speed | 10/100/1000Mbps |
| Auto Negotiation | Supported |
| Auto MDI/MDIX | Supported |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4K |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 16 KB |
| Transmission Method | Store-and-Forward |
| Flow Control | IEEE 802.3x Flow Control |
| QoS | 802.1p/DSCP QoS |
| IGMP Snooping | Supported |
| Green Technology | Supported |
| PoE | Not Supported |
| SMART FEATURES | |
|---|---|
| 8-Port Gigabit | Provides 8 × 10/100/1000Mbps Gigabit Ethernet Ports for High-Speed Wired Network Connectivity |
| Plug and Play | Unmanaged Design Requires No Configuration and Allows Immediate Network Deployment |
| Green Ethernet | Automatically Adjusts Power Consumption According to Link Status and Cable Length to Reduce Energy Usage |
| 802.3x Flow Control | Provides Reliable Data Transmission by Controlling Network Traffic and Reducing Packet Loss |
| 802.1p/DSCP QoS | Prioritizes Network Traffic to Improve Performance for Delay-Sensitive Applications |
| IGMP Snooping | Optimizes Multicast Traffic Delivery to Prevent Unnecessary Multicast Data from Flooding the Network |
| Fanless Design | Silent Fanless Construction Provides Quiet and Maintenance-Free Operation |
| GENERAL | |
|---|---|
| Switch Type | Unmanaged Gigabit Desktop Switch |
| Network Ports | 8 × 10/100/1000Mbps RJ45 |
| Port Speed | 10/100/1000Mbps |
| PoE | Not Supported |
| Installation Method | Desktop / Wall Mount |
| Enclosure | Steel Housing |
| Fan | Fanless |
| Power Supply | External Power Adapter, 5VDC / 0.6A |
| Maximum Power Consumption | 3.75 W |
| Maximum Heat Dissipation | 10.79 BTU/h |
| Dimensions | 158 × 101 × 25 mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 90% RH, Non-Condensing |
| Certification | CE, FCC and RoHS |
Note: The TP-Link TL-SG108 is an 8-port 10/100/1000Mbps Gigabit unmanaged desktop switch featuring 8 Auto-Negotiation and Auto MDI/MDIX RJ45 ports, 16 Gbps switching capacity, 11.9 Mpps packet forwarding performance and a 4K MAC address table. It is suitable for expanding wired networks in homes, offices, workgroups and small businesses.
Important: The TL-SG108 is an unmanaged switch and does not provide PoE. It features Green Ethernet technology, IEEE 802.3x Flow Control, 802.1p/DSCP QoS, IGMP Snooping and a fanless steel housing. The switch supports desktop or wall-mount installation and requires no configuration.
