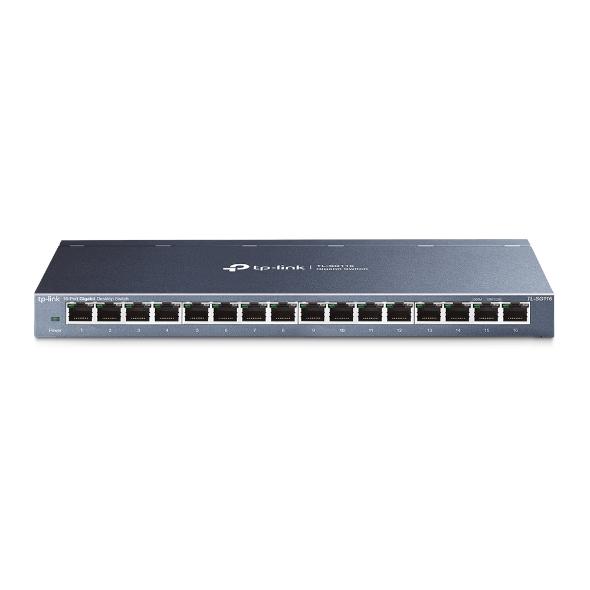

Specifications TP-Link TL-SG116
| Features | Description |
|---|---|
| Device Type | 16-Port 10/100/1000Mbps Gigabit Desktop Switch |
| Network Ports | 16 × 10/100/1000Mbps Auto-Negotiation RJ45 Ports |
| Switch Type | Unmanaged Switch |
| Switching Capacity | 32 Gbps |
| Packet Forwarding Rate | 23.8 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10 KB |
| Flow Control | IEEE 802.3x Flow Control |
| QoS | 802.1p/DSCP QoS |
| Multicast | IGMP Snooping |
| Power Efficiency | Green Ethernet Technology |
| Design | Fanless Steel Housing |
| Interface | 16 × 10/100/1000Mbps RJ45 Ports |
|---|---|
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
| Port Speed | 10/100/1000Mbps |
| Auto Negotiation | Supported |
| Auto MDI/MDIX | Supported |
| Switching Capacity | 32 Gbps |
| Packet Forwarding Rate | 23.8 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mb |
| Jumbo Frame | 10 KB |
| Transmission Method | Store-and-Forward |
| Flow Control | IEEE 802.3x Flow Control |
| QoS | 802.1p/DSCP QoS |
| IGMP Snooping | Supported |
| Green Technology | Supported |
| PoE | Not Supported |
| SMART FEATURES | |
|---|---|
| 16-Port Gigabit | Provides 16 × 10/100/1000Mbps Gigabit Ethernet Ports for High-Speed Wired Network Connectivity |
| Plug and Play | Unmanaged Design Requires No Configuration and Allows Immediate Network Deployment |
| Green Ethernet | Automatically Adjusts Power Consumption According to Link Status and Cable Length to Reduce Energy Usage |
| 802.3x Flow Control | Provides Reliable Data Transmission by Controlling Network Traffic and Reducing Packet Loss |
| 802.1p/DSCP QoS | Prioritizes Network Traffic to Improve Performance for Delay-Sensitive Applications |
| IGMP Snooping | Optimizes Multicast Traffic Delivery to Prevent Unnecessary Multicast Data from Flooding the Network |
| Fanless Design | Silent Fanless Construction Provides Quiet and Maintenance-Free Operation |
| GENERAL | |
|---|---|
| Switch Type | Unmanaged Gigabit Desktop Switch |
| Network Ports | 16 × 10/100/1000Mbps RJ45 |
| Port Speed | 10/100/1000Mbps |
| PoE | Not Supported |
| Installation Method | Desktop / Wall Mount |
| Enclosure | Steel Housing |
| Fan | Fanless |
| Power Supply | External Power Adapter, 12VDC / 1.0A |
| Maximum Power Consumption | 9.67 W |
| Maximum Heat Dissipation | 32.88 BTU/h |
| Dimensions | 286 × 111.7 × 25.4 mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 90% RH, Non-Condensing |
| Certification | CE, FCC and RoHS |
Note: The TP-Link TL-SG116 is a 16-port 10/100/1000Mbps Gigabit unmanaged desktop switch featuring 16 Auto-Negotiation and Auto MDI/MDIX RJ45 ports, 32 Gbps switching capacity, 23.8 Mpps packet forwarding performance and an 8K MAC address table. It is suitable for expanding wired networks in homes, offices, workgroups and small businesses.
Important: The TL-SG116 is an unmanaged switch and does not provide PoE. It features Green Ethernet technology, 802.3x Flow Control, 802.1p/DSCP QoS, IGMP Snooping and a fanless steel housing for quiet operation.
