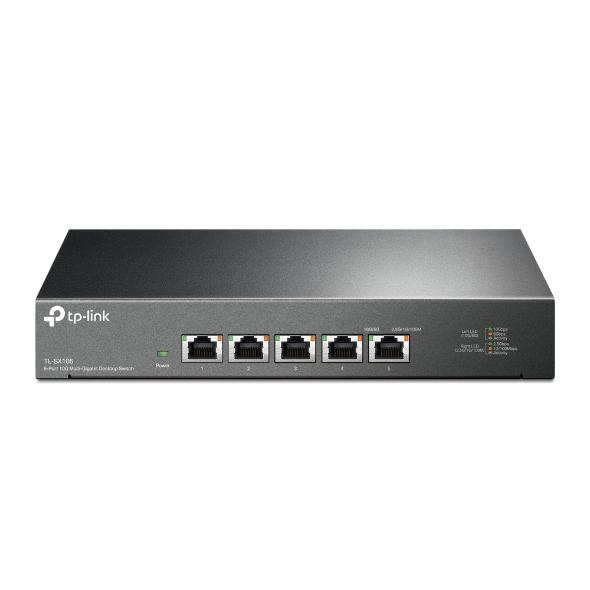

Specifications TP-Link TL-SX105
| Features | Description |
|---|---|
| Device Type | 5-Port 10G Multi-Gigabit Desktop Switch |
| Network Ports | 5 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports |
| Switch Type | Unmanaged Switch |
| Switching Capacity | 100 Gbps |
| Packet Forwarding Rate | 74.4 Mpps |
| MAC Address Table | 32K |
| Packet Buffer Memory | 2 Mb |
| Jumbo Frame | 10 KB |
| QoS | 802.1p/DSCP QoS |
| Flow Control | IEEE 802.3x Flow Control |
| Design | Fanless Metal Housing |
| Interface | 5 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports |
|---|---|
| Port Speed | 100Mbps / 1Gbps / 2.5Gbps / 5Gbps / 10Gbps |
| Auto Negotiation | Supported |
| Auto MDI/MDIX | Supported |
| Switching Capacity | 100 Gbps |
| Packet Forwarding Rate | 74.4 Mpps |
| MAC Address Table | 32K |
| Packet Buffer Memory | 2 Mb |
| Jumbo Frame | 10 KB |
| Transmission Method | Store-and-Forward |
| Flow Control | IEEE 802.3x Flow Control |
| QoS | 802.1p/DSCP QoS |
| PoE | Not Supported |
| SMART FEATURES | |
|---|---|
| 5-Port 10G | Provides Five 10Gbps Multi-Gigabit Ethernet Ports for High-Speed Network Connectivity |
| 5-Speed Multi-Gigabit | Supports 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps with Automatic Speed Negotiation |
| 100Gbps Switching | Provides Up to 100Gbps Switching Capacity for High-Bandwidth 10G Network Traffic |
| 10G Connectivity | Suitable for 10G NAS, Servers, Workstations, Gaming PCs, 10G Network Adapters and 2.5G/5G/10G Wi-Fi Access Points |
| 802.1p/DSCP QoS | Prioritizes Network Traffic to Improve Performance for Delay-Sensitive Applications |
| 802.3x Flow Control | Provides Reliable Data Transmission by Controlling Network Traffic and Reducing Packet Loss |
| Plug and Play | Unmanaged Design Requires No Configuration and Allows Immediate Network Deployment |
| Fanless Design | Fanless Construction Provides Silent Operation Without Fan Noise |
| Flexible Mounting | Supports Desktop and Wall-Mount Installation |
| GENERAL | |
|---|---|
| Switch Type | Unmanaged 10G Multi-Gigabit Desktop Switch |
| Network Ports | 5 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 |
| PoE | Not Supported |
| Installation Method | Desktop / Wall Mount |
| Enclosure | Metal Housing |
| Fan | Fanless |
| Power Supply | External Power Adapter, 12VDC / 2.0A |
| Maximum Power Consumption | 21.4 W |
| Dimensions | 226 × 131 × 35 mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 90% RH, Non-Condensing |
| Certification | CE, FCC and RoHS |
Note: The TP-Link TL-SX105 is a 5-port 10G Multi-Gigabit unmanaged desktop switch featuring 5 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 ports, 100 Gbps switching capacity, 74.4 Mpps packet forwarding performance and a 32K MAC address table. It is suitable for 10G NAS, servers, workstations, gaming computers, high-speed Wi-Fi access points and 8K video applications.
Important: The TL-SX105 is an unmanaged switch and does not provide PoE. All five ports support up to 10Gbps and automatically negotiate among five speeds: 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps. The switch uses a fanless metal design and supports desktop or wall-mount installation.
