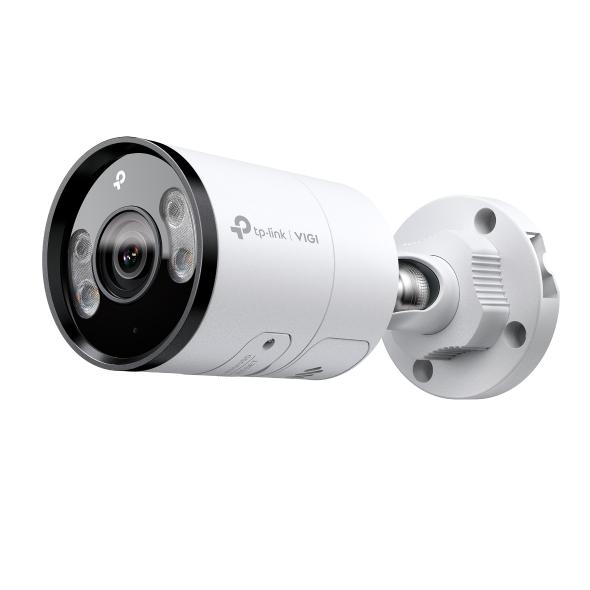

Specifications TP-Link VIGI C345
| Features |
Description |
| Product Type |
4MP Outdoor Full-Color Bullet Network Camera |
| Resolution |
4MP (2688 × 1520) |
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Lens |
Fixed Focal Lens, 2.8 / 4 / 6 mm |
| Aperture |
F1.6 |
| Full-Color Night Vision |
24-Hour Full-Color with IR and White Light |
| AI Detection |
Human & Vehicle Classification, People & Vehicle Analytics |
| Smart Detection |
Intrusion, Line-Crossing, Region Entering/Exiting, Loitering and Object Abandoned/Removal |
| Audio |
Two-Way Audio with Built-in Microphone and Speaker |
| Connectivity |
10/100 Mbps Ethernet with PoE |
| Storage |
MicroSD Card up to 512GB |
| Weather Protection |
IP67 |
| CAMERA |
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Maximum Resolution |
2688 × 1520 |
| Shutter Speed |
1/3 to 1/10000 s |
| Minimum Illumination |
0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism |
IR Cut Filter |
| Day/Night Switch |
Unified / Scheduled / Auto |
| LENS |
| Lens Type |
Fixed Focal Lens |
| Focal Length |
2.8 mm / 4 mm / 6 mm |
| Aperture |
F1.6 |
| Lens Mount |
M12 × P0.5 |
| FOV – 2.8 mm |
Horizontal 100° / Vertical 54° / Diagonal 118° |
| FOV – 4 mm |
Horizontal 80.4° / Vertical 41.8° / Diagonal 98.7° |
| FOV – 6 mm |
Horizontal 52.7° / Vertical 29° / Diagonal 60.8° |
| DORI DISTANCE |
| 2.8 mm |
Detect 64 m / Observe 27 m / Recognize 13 m / Identify 6 m |
| 4 mm |
Detect 80 m / Observe 33 m / Recognize 16 m / Identify 8 m |
| 6 mm |
Detect 120 m / Observe 50 m / Recognize 24 m / Identify 12 m |
| IMAGE & NIGHT VISION |
| IR LED |
2 × IR LEDs, 850 nm, up to 30 m |
| White LED |
2 × White LEDs, up to 30 m |
| Full-Color Night Vision |
Supported |
| Image Enhancement |
BLC / 3D DNR / HLC / SmartIR |
| WDR |
120 dB |
| SNR |
≥ 52 dB |
| Privacy Mask |
Up to 4 Masks |
| ROI |
1 Region |
| VIDEO |
| Main Stream Resolution |
2688 × 1520 / 2560 × 1440 / 2304 × 1296 / 2048 × 1280 / 1920 × 1080 / 1280 × 720 |
| Frame Rate |
Up to 30 fps at 60Hz |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Sub-Stream Compression |
H.265 / H.264 |
| Bit Rate Control |
CBR / VBR |
| Main Stream Bit Rate |
256 Kbps to 6 Mbps |
| Sub-Stream Bit Rate |
64 Kbps to 512 Kbps |
| AUDIO |
| Two-Way Audio |
Supported |
| Microphone |
Built-in Microphone |
| Speaker |
Built-in Speaker |
| Audio Sampling Rate |
8 kHz |
| Audio Bit Rate |
64 Kbps (G.711 A-law) |
| Noise Filtering |
Supported |
| AI & SMART DETECTION |
| People & Vehicle Analytics |
Supported |
| Human & Vehicle Classification |
Supported |
| People Detection |
Supported |
| Vehicle Detection |
Supported |
| Intrusion Detection |
Supported |
| Line-Crossing Detection |
Supported |
| Region Entering Detection |
Supported |
| Region Exiting Detection |
Supported |
| Loitering Detection |
Supported |
| Object Abandoned Detection |
Supported |
| Object Removal Detection |
Supported |
| Motion Detection |
Supported |
| Video Tampering Detection |
Supported |
| Scene Change Detection |
Supported |
| NETWORK |
| Network Interface |
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port |
| PoE |
IEEE 802.3af/at, Class 0 |
| ONVIF |
Profile S |
| Network Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, RTMP, SMTP, 802.1X, SNMP |
| Cloud |
Supported |
| Simultaneous Live View |
3 Main Streams + 3 Sub-Streams |
| Management |
VIGI App / VIGI Security Manager / Web UI / VIGI VMS |
| STORAGE |
| MicroSD |
Built-in MicroSD Card Slot, up to 512GB |
| Local Recording |
Supported |
| INTERFACE |
| Ethernet |
1 × 10/100 Mbps RJ45 with PoE |
| Power |
12V DC Power Port |
| Reset |
1 × Reset Button |
| Built-in Microphone |
Supported |
| Built-in Speaker |
Supported |
| GENERAL |
| Material |
Metal |
| Protection |
IP67 |
| Operating Temperature |
-30°C to 60°C |
| Operating Humidity |
95% RH or Less, Non-Condensing |
| Power Supply |
12V DC ±5%, Max. 9.7W / PoE 802.3af/at, Class 0, Max. 10.7W |
| Dimensions |
74 × 184 × 74 mm |
| Net Weight |
0.525 kg |
Note: The TP-Link VIGI C345 is a 4MP outdoor full-color bullet network camera featuring a 1/2.7″ Progressive Scan CMOS sensor, F1.6 lens, 24-hour full-color imaging, up to 30 m IR/white-light illumination, People & Vehicle Analytics, Human & Vehicle Classification, smart detection, two-way audio, MicroSD storage up to 512GB and IP67 weather protection.
Important: The VIGI C345 supports both 12V DC power and 802.3af/at PoE. Its Ethernet interface is 10/100 Mbps, and the camera supports three lens options: 2.8 mm, 4 mm and 6 mm.
