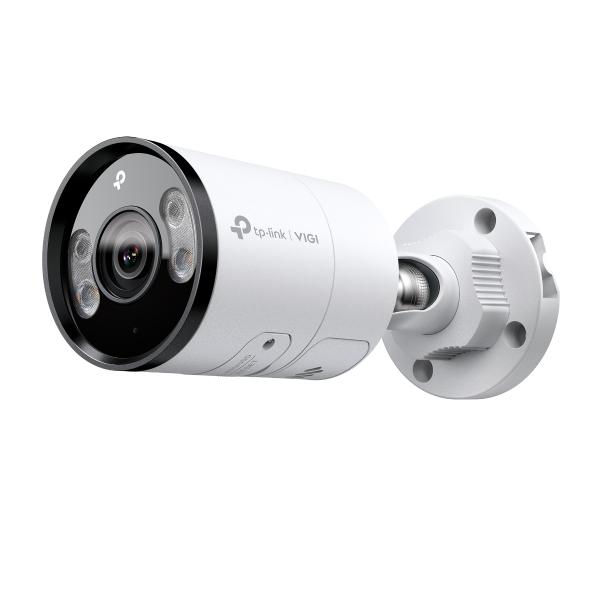

Specifications TP-Link VIGI C385
| Features |
Description |
| Product Type |
8MP Outdoor Full-Color Bullet Network Camera |
| Resolution |
8MP (3840 × 2160) |
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Lens |
Fixed Focal Lens, 2.8 mm / 4 mm |
| Aperture |
F1.6 |
| Full-Color Night Vision |
24-Hour Full-Color |
| IR / White Light Range |
Up to 30 m |
| AI Detection |
Human & Vehicle Classification |
| Smart Detection |
Intrusion, Line-Crossing, Region Entering/Exiting, Object Abandoned/Removal, Loitering, People, Vehicle, Abnormal Sound and Scene Change Detection |
| Active Defense |
White Light Flashing and Audible Warning |
| Audio |
Two-Way Audio with Built-in Microphone and Speaker |
| Connectivity |
10/100 Mbps Ethernet with PoE |
| Storage |
MicroSD Card up to 512GB |
| Weather Protection |
IP67 |
| CAMERA |
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Maximum Resolution |
3840 × 2160 |
| Shutter Speed |
1/3 to 1/10000 s |
| Minimum Illumination |
0.005 Lux; 0 Lux with IR/White Light |
| Slow Shutter |
Yes |
| Day/Night Mechanism |
IR Cut Filter |
| Day/Night Switch |
Unified / Scheduled / Auto |
| LENS |
| Lens Type |
Fixed Focal Lens |
| Focal Length |
2.8 mm / 4 mm |
| Aperture |
F1.6 |
| Lens Mount |
M12 |
| FOV – 2.8 mm |
Horizontal 111.4° / Vertical 58.8° / Diagonal 134° |
| FOV – 4 mm |
Horizontal 91.5° / Vertical 46.1° / Diagonal 109.6° |
| DORI DISTANCE |
| 2.8 mm |
Detect 85 m / Observe 35 m / Recognize 17 m / Identify 8 m |
| 4 mm |
Detect 107 m / Observe 44 m / Recognize 21 m / Identify 11 m |
| ANGLE ADJUSTMENT |
| Pan |
0° to 360° |
| Tilt |
0° to 90° |
| Rotation |
0° to 360° |
| ILLUMINATOR |
| IR LED |
2 LEDs, 850 nm, up to 30 m |
| White LED |
2 LEDs, up to 30 m |
| Illuminator Control |
Auto / Scheduled / Always On / Always Off |
| IMAGE & VIDEO |
| Maximum Resolution |
3840 × 2160 |
| Main Stream Frame Rate |
Up to 25fps |
| Main Stream Resolution |
3840 × 2160 / 2560 × 1440 / 2304 × 1296 / 2048 × 1280 / 1920 × 1080 / 1280 × 720 |
| Sub-Stream Frame Rate |
Up to 25fps |
| Sub-Stream Resolution |
704 × 576 / 640 × 480 / 352 × 288 / 320 × 240 |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Bit Rate Control |
CBR / VBR |
| Main Stream Bit Rate |
256 Kbps to 6 Mbps |
| Sub-Stream Bit Rate |
64 Kbps to 512 Kbps |
| Image Enhancement |
BLC / 3D DNR / HLC / SmartIR |
| WDR |
120 dB |
| SNR |
≥ 52 dB |
| Privacy Mask |
Up to 4 Masks |
| ROI |
1 Region |
| OSD |
Supported |
| AUDIO |
| Audio Communication |
Two-Way Audio |
| Audio Input |
Supported |
| Audio Output |
Supported |
| Audio Sampling Rate |
8 kHz |
| Audio Bit Rate |
64 Kbps (G.711 A-law) |
| Noise Filtering |
Supported |
| AI & SMART DETECTION |
| Human & Vehicle Classification |
Supported |
| People Detection |
Supported |
| Vehicle Detection |
Supported |
| Intrusion Detection |
Supported |
| Line-Crossing Detection |
Supported |
| Region Entering Detection |
Supported |
| Region Exiting Detection |
Supported |
| Loitering Detection |
Supported |
| Object Abandoned Detection |
Supported |
| Object Removal Detection |
Supported |
| Abnormal Sound Detection |
Supported |
| Scene Change Detection |
Supported |
| Motion Detection |
Supported |
| Video Tampering Detection |
Supported |
| ACTIVE DEFENSE |
| Audible Warning |
Supported |
| White Light Flashing |
Supported |
| Alarm Linkage |
Memory Card Video Recording / Message Push / Audible Warning / White Light Flashing |
| NETWORK |
| Network Interface |
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port with PoE |
| PoE |
IEEE 802.3af/at, Class 0 |
| ONVIF |
Profile S |
| Network Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, IEEE 802.1X |
| Cloud |
Supported |
| Simultaneous Live View |
3 Main Streams & 3 Sub-Streams |
| Management |
VIGI App / VIGI Security Manager / Web UI / VIGI VMS |
| STORAGE |
| MicroSD |
Built-in MicroSD Card Slot, up to 512GB |
| Local Recording |
Supported |
| INTERFACES |
| Ethernet |
1 × 10/100 Mbps RJ45 with PoE |
| Power |
12V DC Power Port |
| Reset |
1 × Reset Button |
| Built-in Microphone |
Supported; recording within approximately 5 m radius |
| Built-in Speaker |
Supported |
| Alarm Interface |
N/A |
| GENERAL |
| Material |
Metal |
| Protection |
IP67 |
| Operating Temperature |
-30°C to 60°C |
| Storage Temperature |
-40°C to 60°C |
| Operating Humidity |
95% RH or Less, Non-Condensing |
| Storage Humidity |
95% RH or Less, Non-Condensing |
| Power Supply |
12V DC ±5%, Max. 10.5W / PoE 802.3af/at, Class 0, Max. 11.5W |
| Dimensions |
74 × 184 × 74 mm |
| Net Weight |
0.525 kg |
| Certifications |
CE, NTRA, VCCI, KC, BSMI, FCC, IC |
Note: The TP-Link VIGI C385 is an 8MP 4K Outdoor Full-Color Bullet Network Camera featuring a 1/2.7″ Progressive Scan CMOS sensor, F1.6 aperture, 24-hour full-color imaging, 30 m IR and white-light illumination, Human & Vehicle Classification, Smart Detection, Active Defense, Two-Way Audio, MicroSD storage up to 512GB, PoE 802.3af/at and IP67 weather protection.
Important: The VIGI C385 supports 2.8 mm and 4 mm fixed lenses. The 2.8 mm version provides a 111.4° horizontal FOV, while the 4 mm version provides a 91.5° horizontal FOV. The camera supports both 12V DC and 802.3af/at PoE.
