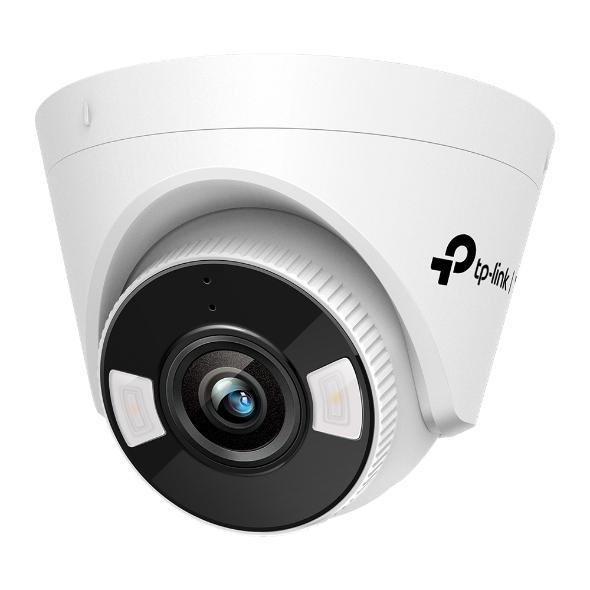

Specifications TP-Link VIGI C450
| Features | Description |
|---|---|
| Product Type | 5MP Full-Color Turret Network Camera |
| Resolution | 5MP (2880 × 1620) |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Lens | Fixed Focal Lens, 2.8 mm / 4 mm |
| Aperture | F1.6 |
| Full-Color Night Vision | 24-Hour Full-Color |
| IR / White Light Range | Up to 30 m |
| AI Detection | People & Vehicle Analytics, Human & Vehicle Classification |
| Smart Detection | Intrusion, Line-Crossing, People, Vehicle, Region Entering/Exiting, Loitering and Object Abandoned/Removal Detection |
| Active Defense | White Light Flashing and Audible Warning |
| Audio | Two-Way Audio with Built-in Microphone and Speaker |
| Connectivity | 10/100 Mbps Ethernet with PoE |
| Storage | MicroSD Card up to 512GB |
| CAMERA | |
|---|---|
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Maximum Resolution | 2880 × 1620 |
| Shutter Speed | 1/3 to 1/10000 s |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Slow Shutter | Yes |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified / Scheduled / Auto |
| LENS | |
|---|---|
| Lens Type | Fixed Focal Lens |
| Focal Length | 2.8 mm / 4 mm |
| Aperture | F1.6 |
| Lens Mount | M12 × P0.5 |
| FOV – 2.8 mm | Horizontal 109° / Vertical 57° / Diagonal 128° |
| FOV – 4 mm | Horizontal 90° / Vertical 48° / Diagonal 107° |
| DORI DISTANCE | |
|---|---|
| 2.8 mm | Detect 64 m / Observe 27 m / Recognize 13 m / Identify 6 m |
| 4 mm | Detect 80 m / Observe 33 m / Recognize 16 m / Identify 8 m |
| ANGLE ADJUSTMENT | |
|---|---|
| Pan | 0° to 360° |
| Tilt | 0° to 85° |
| ILLUMINATOR | |
|---|---|
| IR LED | 2 × IR LEDs, 850 nm, up to 30 m |
| White LED | 2 × White LEDs, up to 30 m |
| Illuminator Control | Auto / Scheduled / Always On / Always Off |
| IMAGE & VIDEO | |
|---|---|
| Maximum Resolution | 2880 × 1620 |
| Main Stream Frame Rate | 50Hz: up to 25fps / 60Hz: up to 30fps |
| Main Stream Resolution | 2880 × 1620 / 2688 × 1520 / 2304 × 1296 / 2048 × 1280 / 1920 × 1080 / 1280 × 720 |
| Sub-Stream Resolution | 704 × 576 / 640 × 480 / 352 × 288 / 320 × 240 |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Bit Rate Control | CBR / VBR |
| Main Stream Bit Rate | 256 Kbps to 6 Mbps |
| Sub-Stream Bit Rate | 64 Kbps to 512 Kbps |
| Image Enhancement | BLC / 3D DNR / HLC / SmartIR |
| WDR | 120 dB |
| SNR | ≥ 52 dB |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| Image Rotation | 90° / 270° |
| AUDIO | |
|---|---|
| Audio Communication | Two-Way Audio |
| Audio Input | Built-in Microphone |
| Audio Output | Built-in Speaker |
| Audio Sampling Rate | 8 kHz |
| Audio Bit Rate | 64 Kbps (G.711 A-law) |
| Noise Filtering | Supported |
| AI & SMART DETECTION | |
|---|---|
| People & Vehicle Analytics | Supported |
| Human & Vehicle Classification | Supported |
| People Detection | Supported |
| Vehicle Detection | Supported |
| Area Intrusion Detection | Supported |
| Line-Crossing Detection | Supported |
| Region Entering Detection | Supported |
| Region Exiting Detection | Supported |
| Loitering Detection | Supported |
| Object Abandoned Detection | Supported |
| Object Removal Detection | Supported |
| Motion Detection | Supported |
| Video Tampering Detection | Supported |
| Scene Change Detection | Supported |
| Abnormal Sound Detection | Supported |
| ACTIVE DEFENSE | |
|---|---|
| Audible Warning | Supported |
| White Light Flashing | Supported |
| Alarm Linkage | Memory Card Video Recording / Message Push / Audible Warning / White Light Flashing |
| NETWORK | |
|---|---|
| Network Interface | 1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port with PoE |
| PoE | IEEE 802.3af/at, Class 0 |
| ONVIF | Profile S |
| Network Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, 802.1X, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP |
| Cloud | Supported |
| Simultaneous Live View | 3 Main Streams + 3 Sub-Streams |
| Management | VIGI App / VIGI Security Manager / Web UI / NVR UI |
| STORAGE | |
|---|---|
| MicroSD | Built-in MicroSD Card Slot, up to 512GB |
| Local Recording | Supported |
| INTERFACE | |
|---|---|
| Ethernet | 1 × 10/100 Mbps RJ45 with PoE |
| Power | 12V DC Power Port |
| Reset | 1 × Reset Button |
| Built-in Microphone | Supported; recording within approximately 5 m radius |
| Built-in Speaker | Supported |
| Alarm Interface | N/A |
| GENERAL | |
|---|---|
| Material | Plastic |
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -40°C to 60°C |
| Operating Humidity | 95% RH or Less, Non-Condensing |
| Storage Humidity | 95% RH or Less, Non-Condensing |
| Power Supply | 12V DC ±5%, Max. 9W / PoE 802.3af/at, Class 0, Max. 10.5W |
| Dimensions | Φ123 × 84 mm |
| Net Weight | 0.24 kg |
| Gross Weight | 0.40 kg |
| Protection | N/A |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
Note: The TP-Link VIGI C450 is a 5MP Full-Color Turret Network Camera featuring a 1/2.7″ Progressive Scan CMOS sensor, F1.6 aperture, 24-hour full-color imaging, 30 m IR and white-light illumination, People & Vehicle Analytics, Human & Vehicle Classification, Smart Detection, Active Defense, Two-Way Audio, MicroSD storage up to 512GB and PoE support.
Important: The VIGI C450 supports 2.8 mm and 4 mm fixed lenses. The 2.8 mm lens provides a 109° horizontal FOV, while the 4 mm lens provides a 90° horizontal FOV. The camera supports both 12V DC and 802.3af/at PoE.
