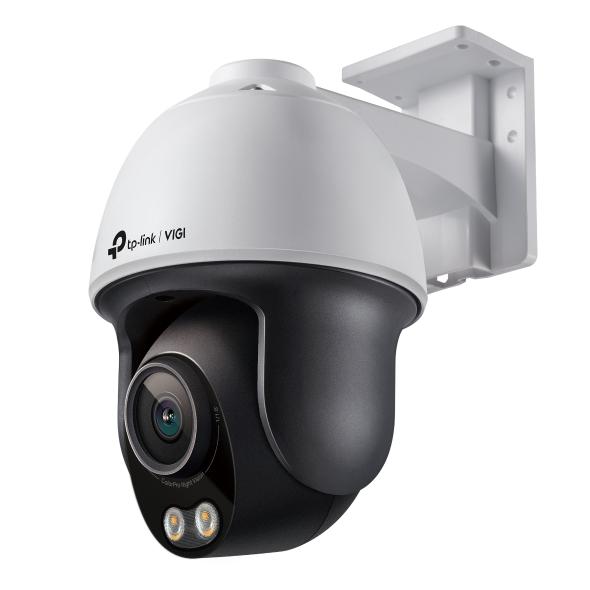

Specifications TP-Link VIGI C540S
| Features |
Description |
| Product Type |
4MP Outdoor ColorPro Night Vision Pan Tilt Network Camera |
| Resolution |
4MP (2688 × 1520) |
| Image Sensor |
1/1.79″ Progressive Scan CMOS |
| Lens |
Fixed Focal Lens, 4 mm |
| Aperture |
F1.0 ±5% |
| Night Vision |
ColorPro Night Vision, Ultra-Low Light Color Imaging |
| White Light Range |
Up to 30 m |
| Pan/Tilt |
Pan 0°–348°, Tilt 0°–105° |
| AI Detection |
People & Vehicle Analytics, Human & Vehicle Classification |
| Smart Detection |
People, Vehicle, Intrusion, Line-Crossing, Region Entering/Exiting, Loitering, Object Abandoned/Removal, Abnormal Sound and Scene Change |
| Active Defense |
White Light Flashing and Audible Warning |
| Audio |
Two-Way Audio with Built-in Microphone and Speaker |
| Connectivity |
10/100 Mbps Ethernet with PoE |
| Storage |
MicroSD Card up to 512GB |
| Weather Protection |
IP66 |
| CAMERA |
| Image Sensor |
1/1.79″ Progressive Scan CMOS |
| Maximum Resolution |
2688 × 1520 |
| Shutter Speed |
1/3 to 1/10000 s |
| Minimum Illumination |
0.0005 Lux; 0 Lux with White Light |
| Slow Shutter |
Yes |
| Day/Night Mechanism |
N/A |
| Day/Night Switch |
Unified / Scheduled / Auto |
| COLORPRO NIGHT VISION |
| Technology |
VIGI ColorPro Night Vision |
| Ultra-Low Light |
Color imaging in extremely low-light conditions |
| Sensor Size |
1/1.79″ |
| Aperture |
F1.0 ±5% |
| White Light |
2 LEDs, up to 30 m |
| LENS |
| Lens Type |
Fixed Focal Lens |
| Focal Length |
4 mm |
| Aperture |
F1.0 ±5% |
| Lens Mount |
M16 × P0.5 |
| Horizontal FOV |
104° |
| Vertical FOV |
55° |
| Diagonal FOV |
127° |
| DORI DISTANCE |
| Detect |
63 m |
| Observe |
26 m |
| Recognize |
13 m |
| Identify |
6 m |
| PTZ |
| Pan Range |
0° to 348° |
| Tilt Range |
0° to 105° |
| Pan Speed |
Configurable 8° to 44°/s; Preset Speed 44°/s |
| Tilt Speed |
Configurable 8° to 44°/s; Preset Speed 44°/s |
| Manual Control Speed |
Configurable 8° to 35°/s |
| Presets |
300 |
| Patrol Scan |
8 Patrols, up to 8 Presets per Patrol |
| Power-Off Memory |
Yes |
| Park Action |
Preset / Patrol Scan |
| 3D Positioning |
Supported |
| ILLUMINATOR |
| IR LED |
N/A |
| White LED |
2 LEDs, up to 30 m |
| Illuminator Control |
Auto / Scheduled / Always On / Always Off |
| IMAGE & VIDEO |
| Maximum Resolution |
2688 × 1520 |
| Main Stream Frame Rate |
50Hz: Up to 25fps / 60Hz: Up to 30fps |
| Main Stream Resolution |
2688 × 1520 / 2560 × 1440 / 2304 × 1296 / 2048 × 1280 / 1920 × 1080 / 1280 × 720 |
| Sub-Stream Frame Rate |
50Hz: Up to 25fps / 60Hz: Up to 30fps |
| Sub-Stream Resolution |
704 × 576 / 640 × 480 / 352 × 288 / 320 × 240 |
| Third Stream |
1280 × 720 at 15fps |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Bit Rate Control |
CBR / VBR |
| Main Stream Bit Rate |
256 Kbps to 6 Mbps |
| Sub-Stream Bit Rate |
64 Kbps to 512 Kbps |
| Image Enhancement |
BLC / 3D DNR / HLC |
| WDR |
120 dB |
| SNR |
≥ 52 dB |
| Privacy Mask |
Up to 4 Masks |
| ROI |
1 Region |
| OSD |
Supported |
| AUDIO |
| Audio Communication |
Two-Way Audio |
| Audio Input |
Supported |
| Audio Output |
Supported |
| Audio Sampling Rate |
8 kHz |
| Audio Bit Rate |
64 Kbps (G.711 A-law) |
| Noise Filtering |
Supported |
| AI & SMART DETECTION |
| People & Vehicle Analytics |
Supported |
| Human & Vehicle Classification |
Supported |
| People Detection |
Supported |
| Vehicle Detection |
Supported |
| Intrusion Detection |
Supported |
| Line-Crossing Detection |
Supported |
| Region Entering Detection |
Supported |
| Region Exiting Detection |
Supported |
| Loitering Detection |
Supported |
| Object Abandoned Detection |
Supported |
| Object Removal Detection |
Supported |
| Abnormal Sound Detection |
Supported |
| Scene Change Detection |
Supported |
| Motion Detection |
Supported |
| Video Tampering Detection |
Supported |
| ACTIVE DEFENSE |
| Audible Warning |
Supported |
| White Light Flashing |
Supported |
| Alarm Linkage |
Memory Card Video Recording / Message Push / Audible Warning / White Light Flashing |
| NETWORK |
| Network Interface |
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port with PoE |
| PoE |
IEEE 802.3at, Class 4 |
| ONVIF |
Profile S |
| Network Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, IEEE 802.1X |
| Cloud |
Supported |
| Simultaneous Live View |
3 Main Streams + 3 Sub-Streams |
| Management |
VIGI App / VIGI Security Manager / Web UI |
| STORAGE |
| MicroSD |
Built-in MicroSD Card Slot, up to 512GB |
| Local Recording |
Supported |
| INTERFACES |
| Ethernet |
1 × 10/100 Mbps RJ45 with PoE |
| Power |
12V DC Power Port |
| Reset |
1 × Reset Button |
| Built-in Microphone |
Supported; recording within approximately 5 m radius |
| Built-in Speaker |
Supported |
| Alarm Interface |
N/A |
| GENERAL |
| Material |
Plastic |
| Protection |
IP66 |
| Operating Temperature |
-30°C to 60°C |
| Storage Temperature |
-40°C to 60°C |
| Operating Humidity |
95% RH or Less, Non-Condensing |
| Storage Humidity |
95% RH or Less, Non-Condensing |
| Power Supply |
12V DC ±5%, Max. 13.13W / PoE 802.3at, Class 4, Max. 16.47W |
| Dimensions |
120 × 172 × 203 mm |
| Net Weight |
Not specified |
Note: The TP-Link VIGI C540S is a 4MP Outdoor ColorPro Night Vision Pan Tilt Network Camera featuring a 1/1.79″ Progressive Scan CMOS sensor, F1.0 aperture, ultra-low-light color imaging, 4 mm fixed lens, 348° pan and 105° tilt, People & Vehicle Analytics, Human & Vehicle Classification, Smart Detection, Active Defense, Two-Way Audio, MicroSD storage up to 512GB, PoE 802.3at and IP66 weather protection.
Important: Unlike many VIGI Full-Color models that rely on conventional IR illumination, the C540S uses ColorPro Night Vision with a large 1/1.79″ sensor and F1.0 aperture for color imaging in very low-light conditions. The camera has no IR LED and uses 2 white LEDs with up to 30 m illumination.
