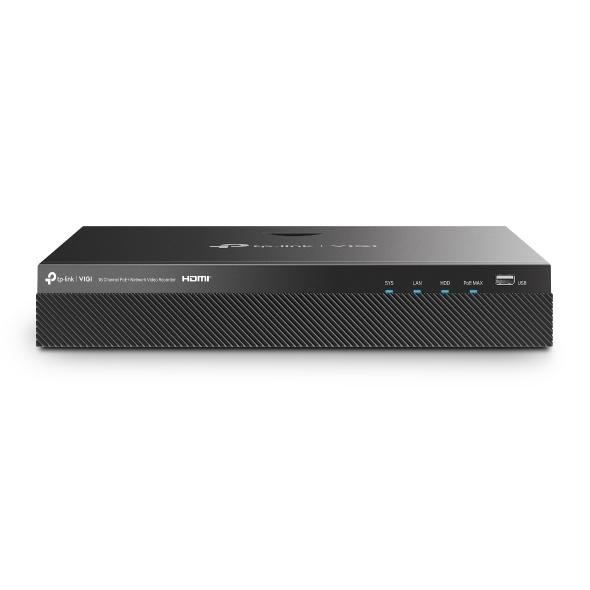

Specifications TP-Link VIGI NVR2016H-16P
| Features | Description |
|---|---|
| Product Type | 16-Channel PoE+ Network Video Recorder |
| IP Video Input | 16-Channel |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| PoE Ports | 16 × 10/100 Mbps PoE+ Ports |
| PoE Standard | IEEE 802.3af/at |
| PoE Budget | 90W Total |
| HDMI Output | Up to 3840 × 2160 @ 30Hz |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution | Up to 8MP |
| SATA Interfaces | 2 × SATA |
| HDD Capacity | Up to 16TB for Each HDD |
| ONVIF | ONVIF Profile S/T |
| VIDEO & AUDIO | |
|---|---|
| IP Video Input | 16-Channel |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Audio Compression | G.711A / G.711U / G.726 |
| Record Resolution | 8MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Synchronous Playback | 16-Channel |
| Multi-View Display | 1 / 4 / 6 / 8 / 9 / 16 |
| DECODING & PLAYBACK | |
|---|---|
| Decoding Capability | 25fps: 10-ch @ 1080p |
| Decoding Capability | 30fps: 2-ch @ 8MP, 4-ch @ 5MP, 5-ch @ 4MP, 6-ch @ 3MP |
| Playback Modes | Instant Playback, Regular Playback, Tag Playback and Event Playback |
| Backup | Regular Backup and Video Clip Backup |
| Playback Functions | Play, Pause, Stop, Fast Forward, Fast Backward, Frame-by-Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording and Audio On/Off |
| VIDEO OUTPUT | |
|---|---|
| HDMI | 1 × HDMI, up to 3840 × 2160 @ 30Hz |
| VGA | 1 × VGA, up to 1920 × 1080 @ 60Hz |
| Output Mode | HDMI and VGA Independent / Simultaneous Output |
| PoE | |
|---|---|
| PoE Ports | 16 × RJ45 10/100 Mbps PoE+ Ports |
| PoE Standard | IEEE 802.3af/at |
| Total PoE Budget | 90W |
| Maximum Power per Port | 30W |
| PoE Management | Auto Detection and Power Management |
| NETWORK | |
|---|---|
| Network Interface | 1 × RJ45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
| Network Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, SSL/TLS, RTP, IPv4, ARP, IPv6 and SNMP |
| Interoperability | ONVIF Profile S/T, CGI |
| Mobile Access | Android and iOS |
| Web Browser | Chrome, Firefox, Edge and Safari |
| STORAGE | |
|---|---|
| SATA Interface | 2 × SATA |
| HDD Capacity | Up to 16TB for Each HDD |
| Maximum Total Capacity | Up to 32TB with 2 × 16TB HDDs |
| Recording Mode | Manual, Scheduled and Motion Detection Recording |
| SMART VIDEO & ALARM | |
|---|---|
| Human Detection | Supported |
| Vehicle Detection | Supported |
| Motion Detection | Supported |
| Video Tampering Detection | Supported |
| Line-Crossing Detection | Supported |
| Intrusion Detection | Supported |
| Region Entering Detection | Supported |
| Region Exiting Detection | Supported |
| Loitering Detection | Supported |
| Object Abandoned/Removal Detection | Supported |
| Abnormal Sound Detection | Supported |
| Video Loss | Supported |
| Disk Exception | Supported |
| Login Exception | Supported |
| EXTERNAL INTERFACE | |
|---|---|
| Network Port | 1 × RJ45 Gigabit Ethernet |
| PoE Ports | 16 × RJ45 10/100 Mbps |
| USB | 1 × USB 2.0 Front + 1 × USB 2.0 Rear |
| Audio | 1 × RCA Audio Input + 1 × RCA Audio Output |
| HDMI | 1 × HDMI |
| VGA | 1 × VGA |
| Reset | 1 × Reset Button |
| GENERAL | |
|---|---|
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 10%–90% RH, Non-Condensing |
| Storage Temperature | -40°C to 70°C |
| Power Supply | 53.5V DC / 2.43A |
| Dimensions | 330 × 285 × 45 mm |
Note: The TP-Link VIGI NVR2016H-16P is a 16-channel PoE+ Network Video Recorder featuring 16 × PoE+ ports, a 90W total PoE budget, 160 Mbps incoming and outgoing bandwidth, 4K HDMI output, H.265+ video compression, 2 × SATA interfaces supporting up to 16TB per HDD, ONVIF Profile S/T and 16-channel synchronous playback.
Important: The 90W PoE budget is shared across all 16 PoE ports. Although each port can provide up to 30W, the total available power for all connected cameras is 90W.
