UA520C | USB Type-C to HDMI Adapter

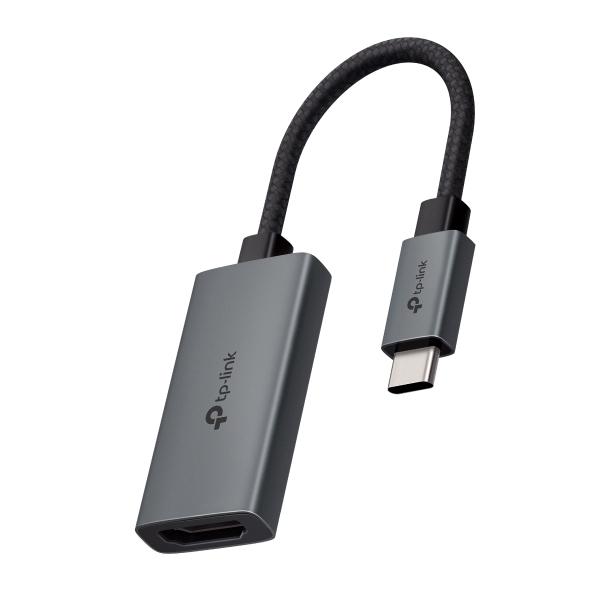

TP-Link UA520C

USB Type-C to HDMI Adapter

1 × USB Type-C input and 1 × HDMI output up to 4K@60Hz
Supports USB-C devices with DisplayPort Alt Mode
Plug-and-Play without additional driver installation
Compatible with Windows, macOS, iPadOS, iOS, Android, Linux and Chrome OS
100mm braided cable with durable aluminum alloy housing
Compact 49.7 × 22.5 × 10.5mm design for portable use

Specifications TP-Link UA520C

Features	Description
Product Type	USB Type-C to HDMI Adapter
Host Interface	1 × USB Type-C
Video Interface	1 × HDMI
Maximum Resolution	Up to 4K@60Hz
USB-C Video Standard	DisplayPort Alternate Mode (DP Alt Mode)
Installation	Plug and Play
Cable	100mm Braided Cable

HARDWARE
Connector	1 × USB Type-C
Video Interface	1 × HDMI, up to 4K@60Hz
USB-C Connector Input	5V/0.2A
Plug and Play	Supported

VIDEO
HDMI Interface	1 × HDMI
Maximum Resolution	4K@60Hz
Video Output	Ultra High-Definition Video Output
Video Input	USB Type-C with DP Alt Mode

COMPATIBILITY
Windows	Supported
macOS	Supported
iPadOS	Supported
iOS	Supported
Android	Supported
Linux OS	Supported
Chrome OS	Supported

FEATURES
Plug and Play	Supported
DP Alt Mode	Required
External Display	Supported
Portable Design	Supported

PHYSICAL
Dimensions	49.7 × 22.5 × 10.5mm
Cable Length	100mm
Cable Type	Braided Cable
Case	Aluminum Alloy
Design	Compact and Portable

ENVIRONMENT
Operating Temperature	0°C to 40°C
Operating Humidity	10%–90% RH, Non-Condensing
Storage Humidity	5%–90% RH, Non-Condensing

CERTIFICATIONS
Certifications	CE / FCC / RoHS / HDMI / BSMI

Note: The TP-Link UA520C is a USB Type-C to HDMI Adapter that converts a compatible USB Type-C port into an HDMI output supporting resolutions up to 4K@60Hz. It requires the USB-C port of the connected device to support DisplayPort Alternate Mode (DP Alt Mode). The adapter supports Windows, macOS, iPadOS, iOS, Android, Linux OS and Chrome OS. It features a compact aluminum alloy case and a 100mm braided cable for improved flexibility and portability.

Important: The UA520C is a USB Type-C to HDMI Adapter featuring 1 × USB Type-C connector and 1 × HDMI output supporting up to 4K@60Hz. The connected USB-C device must support DisplayPort Alternate Mode (DP Alt Mode) for video output. It supports Plug and Play operation and is compatible with Windows, macOS, iPadOS, iOS, Android, Linux OS and Chrome OS. The adapter features a 100mm braided cable and aluminum alloy case.
