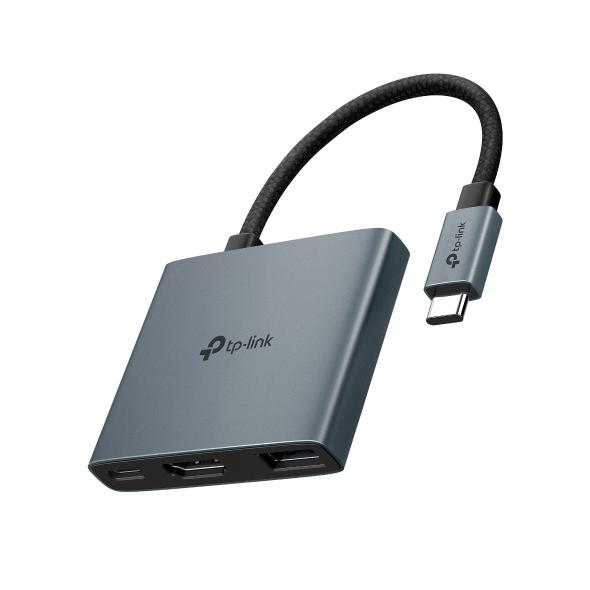

Specifications TP-Link UH3020C
| Features |
Description |
| Product Type |
USB Type-C 3-in-1 Hub |
| Host Interface |
1 × USB Type-C |
| HDMI Port |
1 × HDMI, up to 4K@60Hz |
| USB-A Port |
1 × USB-A, up to 5Gbps |
| Power Delivery |
1 × USB-C PD, up to 100W |
| USB Standard |
USB 3.0 |
| Installation |
Plug and Play |
| HARDWARE |
| Connector |
1 × USB Type-C |
| Number of Ports |
3 |
| Video Interface |
1 × HDMI 4K@60Hz |
| Power Delivery Interface |
1 × USB-C PD 100W |
| USB Interface |
1 × USB-A 5Gbps |
| VIDEO |
| HDMI Interface |
1 × HDMI |
| Maximum Resolution |
4K@60Hz |
| Video Output |
Ultra High-Definition Video Output |
| USB |
| USB Interface |
1 × USB-A 3.0 |
| Data Transfer Speed |
Up to 5Gbps |
| Backward Compatibility |
USB 2.0 / USB 1.1 |
| POWER DELIVERY |
| PD Interface |
1 × USB-C |
| PD Standard |
USB PD 3.0 |
| Maximum Power |
Up to 100W |
| PD Input |
5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A |
| USB-C Connector Input |
5V/3A |
| COMPATIBILITY |
| Windows |
Windows 11 / 10 / 8.1 / 8 / 7 |
| macOS |
Supported |
| Linux |
Supported |
| iPadOS |
Supported |
| iOS |
Supported |
| Android |
Supported |
| Chrome OS |
Supported |
| Nintendo OS |
Supported |
| PHYSICAL |
| Case |
Aluminum Alloy Case |
| Cable |
180mm Braided Cable |
| Dimensions |
52.7 × 60.5 × 12.2mm |
| Design |
Self-Storing Cable Design |
| ENVIRONMENT |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10%–90% RH, Non-Condensing |
| Storage Humidity |
5%–90% RH, Non-Condensing |
| CERTIFICATIONS |
| Certifications |
CE / FCC / RoHS / HDMI / BSMI |
Note: The TP-Link UH3020C is a USB Type-C 3-in-1 Hub that expands a single USB-C port into 3 connections, including 1 × HDMI supporting up to 4K@60Hz, 1 × USB-A 5Gbps data port and 1 × USB-C PD port supporting up to 100W. It supports USB 3.0 SuperSpeed data transfer up to 5Gbps and is compatible with Windows, macOS, Linux, iPadOS, iOS, Android, Chrome OS and Nintendo OS. The hub features an aluminum alloy case, 180mm braided cable and a compact self-storing design.
Important: The UH3020C is a USB Type-C 3-in-1 Hub featuring 1 × HDMI supporting up to 4K@60Hz, 1 × USB-A 5Gbps and 1 × USB-C PD supporting up to 100W. It supports USB 3.0 SuperSpeed data transfer up to 5Gbps and Plug and Play operation. The hub uses an aluminum alloy housing with a 180mm braided cable and supports Windows, macOS, Linux, iPadOS, iOS, Android, Chrome OS and Nintendo OS.
