UH5020C | USB Type-C 5 in 1 Hub

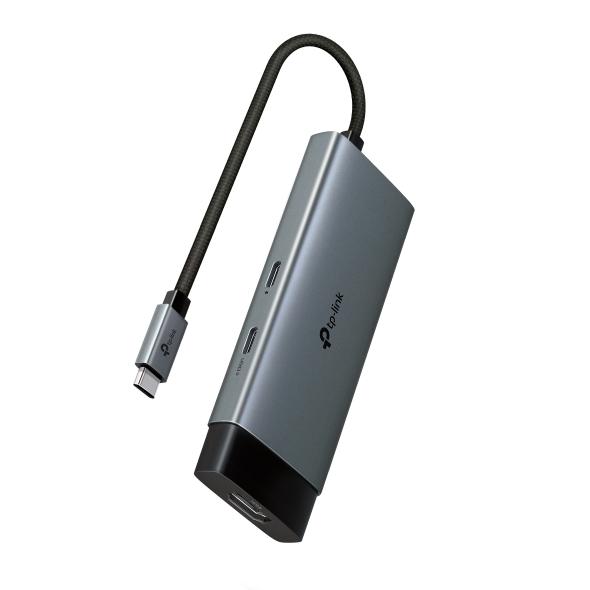

TP-Link UH5020C

USB Type-C 5-in-1 Hub

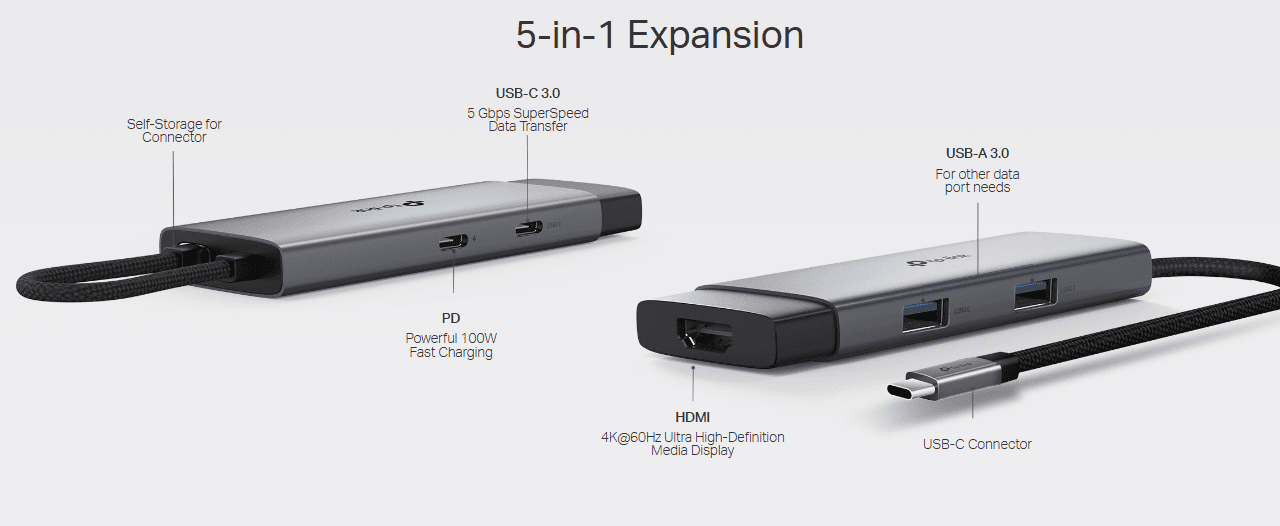

1 × HDMI port supporting up to 4K@60Hz
1 × USB-C PD supporting up to 100W power delivery
1 × USB-C and 2 × USB-A ports with 5Gbps data transfer
Supports Plug-and-Play without additional drivers
Compatible with Windows, macOS, Linux, iPadOS, iOS, Android and Chrome OS
Aluminum alloy housing with 180mm braided cable and self-storing design

Specifications TP-Link UH5020C

Features	Description
Product Type	USB Type-C 5-in-1 Hub
Host Interface	1 × USB Type-C
HDMI Port	1 × HDMI, up to 4K@60Hz
USB-C Data Port	1 × USB-C, up to 5Gbps
USB-A Data Ports	2 × USB-A, up to 5Gbps
Power Delivery	1 × USB-C PD, up to 100W
Installation	Plug and Play

HARDWARE
Connector	1 × USB Type-C
Number of Ports	5
Video Interface	1 × HDMI 4K@60Hz
Power Delivery Interface	1 × PD 100W
USB Interface	1 × USB-C 5Gbps + 2 × USB-A 5Gbps

VIDEO
HDMI Interface	1 × HDMI
Maximum Resolution	4K@60Hz
Video Output	Ultra High-Definition Video Output

USB
USB-C Data	1 × USB-C, up to 5Gbps
USB-A Data	2 × USB-A, up to 5Gbps
Total USB Data Ports	3
Data Transfer Speed	Up to 5Gbps
Backward Compatibility	USB 2.0 / USB 1.1

POWER DELIVERY
PD Interface	1 × USB-C
Maximum Power	Up to 100W
PD Input	5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A
USB-C Connector Input	5V/3A
Charging Function	Power delivery to connected PC

COMPATIBILITY
Windows	Windows 11 / 10 / 8.1 / 8 / 7
macOS	Supported
Linux	Supported
iPadOS	Supported
iOS	Supported
Android	Supported
Chrome OS	Supported
Nintendo OS	Supported

PHYSICAL
Case	Aluminum Alloy Case
Cable	180mm Braided Cable
Dimensions	108.2 × 40 × 12.2mm
Design	Self-Storing Cable Design

ENVIRONMENT
Operating Temperature	0°C to 40°C
Operating Humidity	10%–90% RH, Non-Condensing
Storage Humidity	5%–90% RH, Non-Condensing

CERTIFICATIONS
Certifications	CE / FCC / RoHS / HDMI / BSMI

Note: The TP-Link UH5020C is a USB Type-C 5-in-1 Hub that expands a single USB-C port into 5 ports, including 1 × HDMI supporting up to 4K@60Hz, 1 × USB-C 5Gbps data port, 2 × USB-A 5Gbps data ports and 1 × USB-C PD port supporting up to 100W. It features an aluminum alloy case, 180mm braided cable and a compact self-storing design. The hub supports Plug and Play operation across Windows, macOS, Linux, iPadOS, iOS, Android and Chrome OS.

Important: The UH5020C is a USB Type-C 5-in-1 Hub featuring 1 × HDMI supporting up to 4K@60Hz, 1 × USB-C 5Gbps, 2 × USB-A 5Gbps and 1 × USB-C PD supporting up to 100W. It supports high-speed data transfer up to 5Gbps, Plug and Play operation, and uses an aluminum alloy case with a 180mm braided cable.
