UH6120C | USB Type-C 6 in 1 Hub

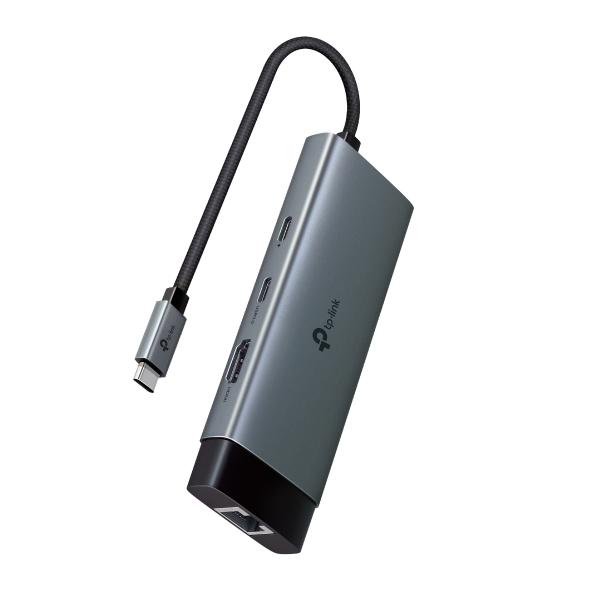

TP-Link UH6120C

USB Type-C 6-in-1 Hub

1 × HDMI supporting up to 4K@60Hz
1 × Gigabit Ethernet RJ45 port
1 × USB-C PD with up to 100W power delivery
1 × USB-C and 2 × USB-A ports with 5Gbps data transfer
Plug-and-play design compatible with Windows, macOS, Linux, Android and Chrome OS
Compact aluminum alloy housing with 180mm braided cable

Specifications TP-Link UH6120C

Features	Description
Product Type	USB Type-C 6-in-1 Hub
Host Interface	1 × USB Type-C
HDMI Port	1 × HDMI, up to 4K@60Hz
Ethernet Port	1 × Gigabit RJ45
USB-C Data Port	1 × USB-C, up to 5Gbps
USB-A Data Ports	2 × USB-A, up to 5Gbps
Power Delivery	1 × USB-C PD, up to 100W
Installation	Plug and Play

HARDWARE
Connector	1 × USB Type-C
Number of Ports	6
Video Interface	1 × HDMI 4K@60Hz
Ethernet Interface	1 × RJ45 Gigabit Ethernet
Power Delivery Interface	1 × USB-C PD, up to 100W
USB Interface	1 × USB-C 5Gbps + 2 × USB-A 5Gbps

VIDEO
HDMI Interface	1 × HDMI
Maximum Resolution	4K@60Hz
Display Output	Ultra High Definition Video Output

USB
USB-C Data	1 × USB-C, up to 5Gbps
USB-A Data	2 × USB-A, up to 5Gbps
Total USB Data Ports	3
Data Transfer Speed	Up to 5Gbps

NETWORK
Ethernet Interface	1 × RJ45 Gigabit Ethernet
Ethernet Speed	10/100/1000Mbps
Connection Type	Wired Gigabit Ethernet

POWER DELIVERY
PD Interface	1 × USB-C
Maximum Power	Up to 100W
Charging Function	Power delivery to connected PC

COMPATIBILITY
Windows	Windows 7 and later
Mac	Mac OS X 10.9 and later
Linux	Supported
iPadOS	Supported
iOS	Supported
Android	Supported
Chrome OS	Supported
Nintendo OS	Supported

PHYSICAL
Case	Aluminum Alloy
Cable	180mm Braided Cable
Dimensions	118.2 × 43 × 14.3mm
Design	Self-Storing Cable Design

ENVIRONMENT
Operating Temperature	0°C to 40°C
Operating Humidity	10%–90% RH, Non-Condensing
Storage Humidity	5%–90% RH, Non-Condensing

CERTIFICATIONS
Certifications	CE / FCC / RoHS / HDMI / BSMI

Note: The TP-Link UH6120C is a USB Type-C 6-in-1 Hub that expands a single USB-C port into 6 connections, including 1 × HDMI port supporting up to 4K@60Hz, 1 × Gigabit RJ45 Ethernet port, 1 × USB-C 5Gbps data port, 2 × USB-A 5Gbps data ports and 1 × USB-C PD port supporting up to 100W power delivery. It features an aluminum alloy case and 180mm braided cable with a compact self-storing design. It supports Windows, macOS, Linux, iPadOS, iOS, Android, Chrome OS and Nintendo OS.

Important: The UH6120C is a USB Type-C 6-in-1 Hub featuring 1 × HDMI supporting up to 4K@60Hz, 1 × Gigabit RJ45 Ethernet, 1 × USB-C 5Gbps, 2 × USB-A 5Gbps and 1 × USB-C PD supporting up to 100W. It provides stable Gigabit Ethernet connectivity and supports high-speed USB data transfer up to 5Gbps. The hub uses an aluminum alloy housing with a 180mm braided cable and supports Plug and Play operation across Windows, macOS, Linux, iPadOS, iOS, Android, Chrome OS and Nintendo OS.
