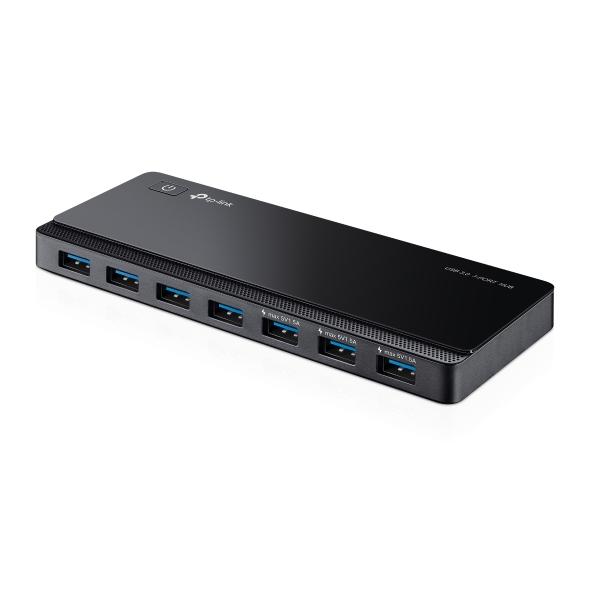

Specifications TP-Link UH700
| Features | Description |
|---|---|
| Product Type | 7-Port USB 3.0 Hub |
| Host Interface | 1 × USB 3.0 Micro-B |
| USB Ports | 7 × USB 3.0 Type-A |
| Data Transfer Speed | Up to 5Gbps |
| Power Supply | 12V / 2A External Power Adapter |
| USB Charging | Supports charging for mobile devices |
| Plug and Play | Supported |
| HARDWARE | |
|---|---|
| Host Interface | 1 × USB 3.0 Micro-B |
| USB Ports | 7 × USB 3.0 Type-A |
| USB Standard | USB 3.0 |
| Maximum Transfer Speed | Up to 5Gbps |
| LED Indicator | Power / USB Status |
| Power Button | Supported |
| USB | |
|---|---|
| USB Interface | 7 × USB 3.0 Type-A |
| Host Connection | USB 3.0 Micro-B |
| Data Transfer Speed | Up to 5Gbps |
| Backward Compatibility | USB 2.0 / USB 1.1 |
| USB Charging | Supported |
| POWER | |
|---|---|
| Power Adapter | 12V / 2A |
| Input | 100–240V AC, 50/60Hz |
| Output | 12V / 2A DC |
| External Power Supply | Required |
| COMPATIBILITY | |
|---|---|
| Windows | Windows 11 / 10 / 8.1 / 8 / 7 / Vista / XP |
| macOS | Supported |
| Linux | Supported |
| FEATURES | |
|---|---|
| Plug and Play | Supported |
| Over-Current Protection | Supported |
| Over-Voltage Protection | Supported |
| Short-Circuit Protection | Supported |
| Hot-Swappable | Supported |
| PHYSICAL | |
|---|---|
| Dimensions | 165 × 65.5 × 17.5mm |
| Design | Desktop |
| Installation | Plug and Play |
| ENVIRONMENT | |
|---|---|
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10%–90% RH, Non-Condensing |
| Storage Humidity | 5%–90% RH, Non-Condensing |
| CERTIFICATIONS | |
|---|---|
| Certifications | CE / FCC / RoHS |
Note: The TP-Link UH700 is a 7-Port USB 3.0 Hub designed to expand a computer’s USB connectivity with 7 × USB 3.0 Type-A ports. It supports data transfer speeds of up to 5Gbps and includes an external 12V/2A power adapter for stable operation when multiple USB devices are connected. The hub supports Plug and Play, hot-swapping and multiple protection features including over-current, over-voltage and short-circuit protection. It is compatible with Windows, macOS and Linux operating systems.
Important: The UH700 is a 7-Port USB 3.0 Hub featuring 7 × USB 3.0 Type-A ports with data transfer speeds of up to 5Gbps. It uses an external 12V/2A power adapter to provide stable power when multiple devices are connected and supports Plug and Play, hot-swapping, over-current protection, over-voltage protection and short-circuit protection. The hub is compatible with Windows, macOS and Linux.
