UH7020C | USB Type-C 7 in 1 Hub

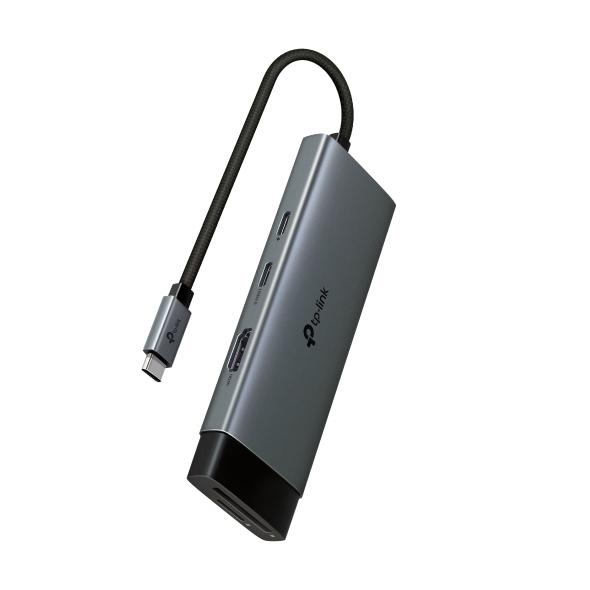

TP-Link UH7020C

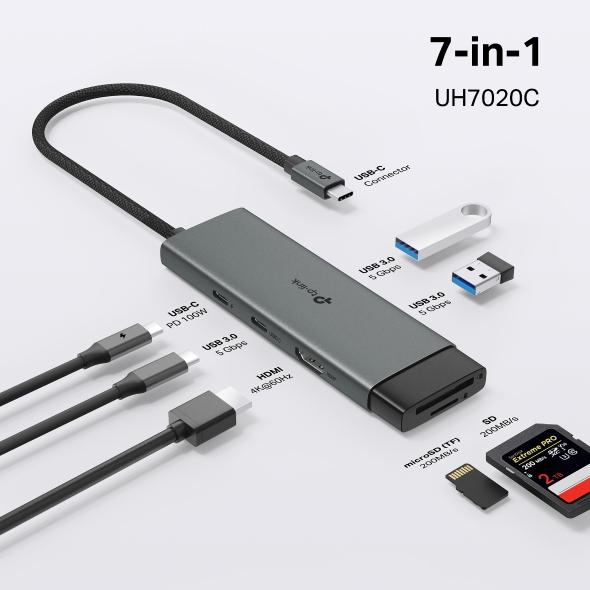

USB Type-C 7-in-1 Hub

1 × HDMI supporting up to 4K@60Hz
1 × USB-C PD supporting up to 100W charging
1 × USB-C and 2 × USB-A ports with 5Gbps data transfer

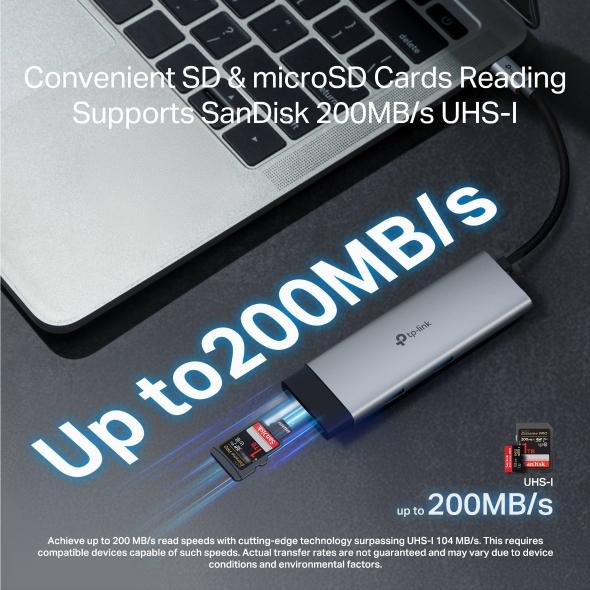

1 × SD and 1 × microSD card slot supporting UHS-I up to 200MB/s
Supports simultaneous SD and microSD card read/write
Aluminum alloy housing with 180mm braided cable and Plug-and-Play design

Specifications TP-Link UH7020C

Features	Description
Product Type	USB Type-C 7-in-1 Hub
Host Interface	1 × USB Type-C
HDMI Port	1 × HDMI, up to 4K@60Hz
SD Card Slot	1 × SD, UHS-I, up to 200MB/s
microSD Card Slot	1 × microSD, UHS-I, up to 200MB/s
USB-C Data Port	1 × USB-C, up to 5Gbps
USB-A Data Ports	2 × USB-A, up to 5Gbps
Power Delivery	1 × USB-C PD, up to 100W
Installation	Plug and Play

HARDWARE
Connector	1 × USB Type-C
Number of Ports	7
Video Interface	1 × HDMI 4K@60Hz
SD Interface	1 × SD, UHS-I, up to 200MB/s
microSD Interface	1 × microSD, UHS-I, up to 200MB/s
Power Delivery Interface	1 × USB-C PD 100W
USB Interface	1 × USB-C 5Gbps + 2 × USB-A 5Gbps

VIDEO
HDMI Interface	1 × HDMI
Maximum Resolution	4K@60Hz
Video Output	Ultra High-Definition Video Output

USB
USB-C Data	1 × USB-C, up to 5Gbps
USB-A Data	2 × USB-A, up to 5Gbps
Total USB Data Ports	3
Data Transfer Speed	Up to 5Gbps

SD & microSD
SD Standard	UHS-I
microSD Standard	UHS-I
Maximum Transfer Speed	Up to 200MB/s
Simultaneous Card Access	Supports simultaneous reading and writing of SD and microSD cards

POWER DELIVERY
PD Interface	1 × USB-C
PD Standard	USB PD 3.0
Maximum Power	Up to 100W
PD Input	5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A

COMPATIBILITY
Windows	Windows 7 and later
Mac	Mac OS X 10.9 and later
Linux	Supported
iPadOS	Supported
iOS	Supported
Android	Supported
Chrome OS	Supported
Nintendo OS	Supported

PHYSICAL
Case	Aluminum Alloy
Cable	180mm Braided Cable
Dimensions	127 × 40 × 12.2mm
Design	Self-Storing Cable Design

ENVIRONMENT
Operating Temperature	0°C to 40°C
Operating Humidity	10%–90% RH, Non-Condensing
Storage Humidity	5%–90% RH, Non-Condensing

CERTIFICATIONS
Certifications	CE / FCC / RoHS / HDMI / BSMI

Note: The TP-Link UH7020C is a USB Type-C 7-in-1 Hub that expands a single USB-C port into 7 ports, including 1 × HDMI supporting up to 4K@60Hz, 1 × SD card slot, 1 × microSD card slot, 1 × USB-C 5Gbps data port, 2 × USB-A 5Gbps data ports and 1 × USB-C PD port supporting up to 100W. The SD and microSD card slots support UHS-I with transfer speeds of up to 200MB/s and simultaneous reading and writing of both cards. The hub features an aluminum alloy housing, 180mm braided cable and Plug and Play operation.

Important: The UH7020C is a USB Type-C 7-in-1 Hub featuring 1 × HDMI supporting up to 4K@60Hz, 1 × SD card slot, 1 × microSD card slot, 1 × USB-C 5Gbps, 2 × USB-A 5Gbps and 1 × USB-C PD supporting up to 100W. The SD and microSD interfaces support UHS-I with transfer speeds up to 200MB/s and can read/write both cards simultaneously. It uses an aluminum alloy housing with a 180mm braided cable and supports Plug and Play operation.
