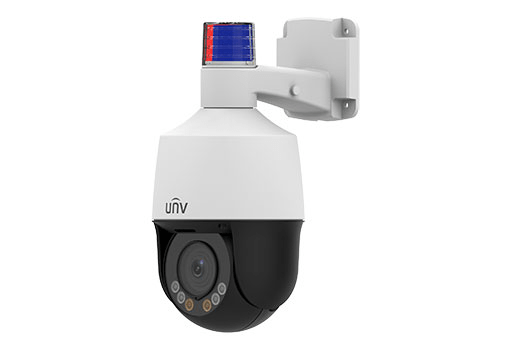

Specifications Uniview IPC6312LFW-AX4C-VG
| Features | Description |
|---|---|
| Product Type | 2MP 4X ColorHunter Tri-Guard Dual-Light Network PTZ Camera |
| Image Sensor | 1/2.7″ CMOS |
| Max. Resolution | 1920 × 1080 |
| Frame Rate | Up to 30 fps |
| Minimum Illumination | Color: 0.002 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR |
| Lens Type | Motorized Varifocal Lens |
| Focal Length | 2.8 to 12 mm |
| Optical Zoom | 4X |
| Horizontal Field of View | 105.2° to 29.32° |
| WDR | 120 dB Optical WDR |
| IR Distance | Up to 50 m |
| Warm Light Distance | Up to 10 m |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Smart Features | Smart Intrusion Prevention, Auto Tracking, People Counting, Crowd Density Detection, and False Alarm Filtering |
| Audio | Built-in Microphone and Speaker, Two-way Audio |
| Storage | MicroSD up to 512 GB |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| PTZ Presets | Up to 256 Presets |
| Pan Range | 0° to 345° |
| Tilt Range | -10° to 110° |
| Power Supply | 12 VDC or PoE (IEEE 802.3af) |
| Power Consumption | Max. 15 W |
| Protection | IP66 |
| SMART FEATURES | Description |
|---|---|
| Smart Intrusion Prevention | Cross Line Detection, Intrusion Detection, Enter Area Detection, and Leave Area Detection |
| Target Classification | Human, Vehicle, and Non-Motor Vehicle Classification |
| Auto Tracking | Supports automatic target tracking with human target filtering |
| People Counting | Supports people flow counting and crowd density monitoring |
| LightHunter Technology | Enhances image quality and color performance in low-light environments |
| Active Deterrence | Built-in speaker and warning light for active deterrence |
| PTZ CHARACTERISTICS | Description |
|---|---|
| Pan Speed | 1°/s to 50°/s |
| Tilt Speed | 1°/s to 40°/s |
| Preset Patrol | 16 Patrols, up to 64 Presets per Patrol |
| Home Position | Support |
| GENERAL | Description |
|---|---|
| Dimensions | 133 mm × 185 mm × 276 mm |
| Weight | Approx. 0.87 kg |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | ≤ 95% RH, non-condensing |
| Network Protocols | IPv4, IPv6, TCP, UDP, DHCP, DNS, RTSP, HTTP, HTTPS, FTP, NTP, SMTP, SNMP, and ONVIF |
| ONVIF | Profile S, Profile G, Profile T |
| Protection | IP66 |
Note: The Uniview IPC6312LFW-AX4C-VG is a 2MP 4X optical zoom PTZ network camera featuring LightHunter technology, 120 dB Optical WDR, Smart IR up to 50 m, warm light up to 10 m, smart intrusion prevention, auto tracking, people counting, and built-in microphone and speaker.
Important: The camera supports both 12 VDC and IEEE 802.3af PoE power, making it suitable for outdoor surveillance applications requiring PTZ control, intelligent detection, and active deterrence.
