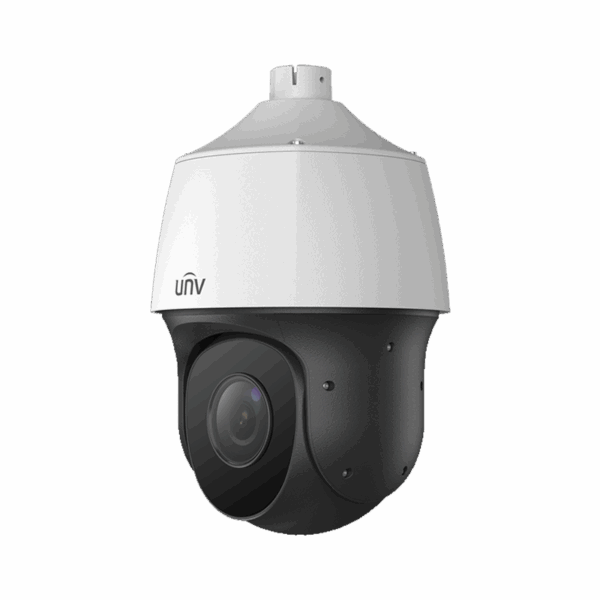

Specifications Uniview IPC6322SR-X22P-D
| Features | Description |
|---|---|
| Product Type | 2MP 22X LightHunter Network PTZ Dome Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Frame Rate | Up to 60 fps |
| Lens Type | Auto Focus and Motorized Zoom Lens |
| Focal Length | 5.2 to 114.4 mm |
| Optical Zoom | 22X |
| Digital Zoom | 16X |
| Horizontal Field of View | 53.4° to 2.7° |
| Minimum Illumination | Color: 0.001 Lux @ F1.5, AGC ON; B/W: 0 Lux with IR |
| IR Range | Up to 150 m |
| WDR | 120 dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Image Stabilization | EIS (Electronic Image Stabilization) |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| Audio | 1 Audio Input / 1 Audio Output |
| Alarm | 1 Alarm Input / 1 Alarm Output |
| Storage | MicroSD Card, up to 128 GB |
| Power Supply | DC 12V ±10% or PoE |
| Power Consumption | 16 to 30 W |
| Protection | IP66 |
| PTZ CHARACTERISTICS | Description |
|---|---|
| Pan Range | 360° |
| Pan Speed | 0.1°/s to 240°/s |
| Preset Pan Speed | 300°/s |
| Tilt Range | -15° to +90° with Auto Reverse |
| Tilt Speed | 0.1°/s to 80°/s |
| Preset Tilt Speed | 80°/s |
| Number of Presets | Up to 1024 Presets |
| Patrol | Preset Patrol, Route Patrol, and Recorded Patrol |
| Home Position | Supported |
| SMART FEATURES | Description |
|---|---|
| LightHunter Technology | Provides high-quality images in low-light environments |
| Smart IR | Automatically adjusts IR intensity to reduce overexposure and improve night vision |
| Digital Defog | Enhances image clarity in foggy or hazy environments |
| Electronic Image Stabilization | Reduces image shaking caused by vibration or wind |
| Snow Removal | Innovative snow-removing functionality for harsh outdoor environments |
| Temperature Control | Intelligent temperature control technology |
| Surge Protection | 6 kV surge protection for the network interface |
| GENERAL | Description |
|---|---|
| Dimensions | Φ215 mm × 344 mm |
| Weight | Approx. 3 kg |
| Operating Temperature | -40°C to 65°C |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Network Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1X, SNMP, SSL, and TLS |
| ONVIF | Profile S, Profile G |
Note: The Uniview IPC6322SR-X22P-D is a 2MP LightHunter network PTZ dome camera featuring 22X optical zoom, a 5.2 to 114.4 mm motorized lens, up to 150 m Smart IR, 120 dB WDR, EIS, and 60 fps video performance.
Important: The camera supports 360° pan, -15° to +90° tilt, up to 1024 presets, MicroSD storage, audio and alarm I/O, DC 12V or PoE power, and IP66 protection for demanding outdoor surveillance applications.
