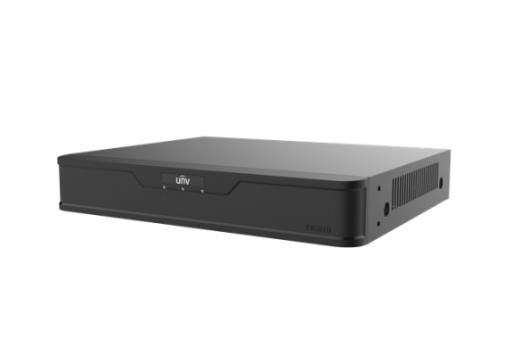

Specifications Uniview NVR301-08B-IQ

Features	Description
Product Type	8-Channel 1U Network Video Recorder
IP Video Input	8 Channels
Maximum Recording Resolution	Up to 12MP
Video Compression	Ultra 265 / H.265 / H.264
Incoming Bandwidth	80 Mbps
Outgoing Bandwidth	80 Mbps
Hard Drive	1 × SATA, up to 10TB
HDMI Output	Up to 4K (3840 × 2160) @ 30Hz
VGA Output	Up to 1920 × 1080 @ 60Hz
AI	Face Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD), Vehicle Detection and People Counting
Two-Way Audio	1 Channel via RCA

DECODING
Decoding Format	Ultra 265 / H.265 / H.264
Smart Off	2 × 12MP@30 / 2 × 4K@30 / 4 × 4MP@30 / 8 × 1080P@30
Smart On	2 × 4K@30 / 4 × 4MP@30 / 8 × 1080P@30
Audio Compression	G.711A / G.711U

NETWORK
Network Interface	1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port
Incoming Bandwidth	80 Mbps
Outgoing Bandwidth	80 Mbps
Remote Users	Up to 128
Protocols	TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv4, IPv6
Camera Compatibility	ONVIF Profile S / Profile G / Profile T and RTSP

VIDEO / AUDIO INPUT
IP Video Input	8 Channels
Audio Input	1 × RCA

VIDEO / AUDIO OUTPUT
HDMI Output	4K (3840 × 2160) @ 30Hz / 1920 × 1080 @ 60Hz / 50Hz / 1600 × 1200 @ 60Hz / 1280 × 1024 @ 60Hz / 1280 × 720 @ 60Hz / 1024 × 768 @ 60Hz
VGA Output	1920 × 1080 @ 60Hz / 50Hz / 1600 × 1200 @ 60Hz / 1280 × 1024 @ 60Hz / 1280 × 720 @ 60Hz / 1024 × 768 @ 60Hz
Audio Output	1 × RCA
Live View Display	1 / 4 / 6 / 8 / 9 / 16
Corridor Mode	3 / 4 / 5 / 7 / 9 / 10
Two-Way Audio	1 Channel via RCA Audio Input / Output

RECORDING
Recording Resolution	12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF
Concurrent Playback	16 Channels
ANR	Supported
Snapshot	FTP / Schedule / Event; up to 4-channel snapshot at D1 resolution

AI & SMART FUNCTIONS
Face Detection	Supported
Vehicle Detection	Supported
Smart Intrusion Prevention	Intrusion Detection / Cross Line Detection / Enter Area / Leave Area
Ultra Motion Detection	Supported
People Counting	People Flow Counting / Crowd Density Monitoring
Traffic Monitoring	Supported
VCA Search	Motor Vehicle Search / Non-Motor Vehicle Search / Human Body Search / General Search / People Counting Report / Heat Map
Search by Image	Supported
SIP by NVR	Up to 2 Channels
UMD by NVR	Up to 4 Channels

ALARM & EVENT
General Alarm	Defocus Detection / Scene Change Detection / Object Left Behind / Object Removed / Auto Tracking / Motion Detection / Tampering / Human Body Detection / Video Loss
Network Alarm	IP Conflict / Network Disconnected
Storage Alarm	Disk Offline / Disk Abnormal / Low Disk Space / Disk Full / Recording or Snapshot Abnormal
Audio Detection	Supported

STORAGE
SATA	1 × SATA Interface
Maximum HDD Capacity	Up to 10TB
ANR	Supported

INTERFACES
Network	1 × RJ45 10/100 Mbps
USB	1 × USB 2.0 Rear / 1 × USB 3.0 Rear
HDMI	1 × HDMI
VGA	1 × VGA
Audio Input	1 × RCA
Audio Output	1 × RCA
RS485	N/A
RS232	N/A
Alarm Input	N/A
Alarm Output	N/A

GENERAL
Power Supply	DC 12V / 2A
Power Switch	Supported
Power Consumption	≤ 12W, HDD excluded
Operating Temperature	-10°C to +55°C
Operating Humidity	≤90% RH, Non-Condensing
Form Factor	1U
Dimensions	260 × 222 × 47 mm
Weight	≤2 kg, HDD excluded
Certifications	CE, FCC, UL, RoHS, WEEE

Note: The Uniview NVR301-08B-IQ is an 8-channel 1U Network Video Recorder supporting Ultra 265/H.265/H.264, up to 12MP recording, 80Mbps incoming and outgoing bandwidth, ONVIF Profile S/G/T and RTSP. It supports one SATA HDD up to 10TB, HDMI 4K output, VGA output, ANR and advanced smart functions including Face Detection, Vehicle Detection, Smart Intrusion Prevention and Ultra Motion Detection.

Important: The NVR301-08B-IQ does not have built-in PoE ports. It has 8 IP video input channels through the network and one 10/100Mbps RJ45 network interface. If PoE is required, the corresponding model is NVR301-08B-P8-IQ, which provides 8 independent PoE interfaces.
