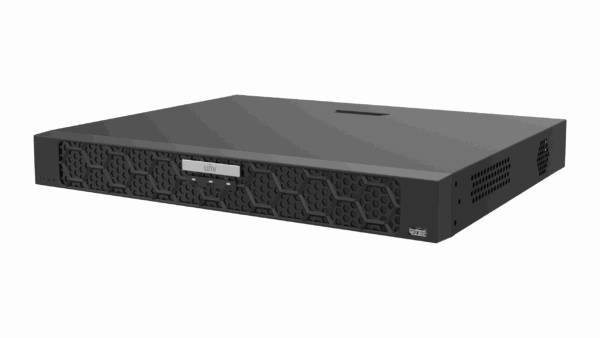

Specifications Uniview NVR502-16B-P16
| Features | Description |
|---|---|
| Product Type | 16-Channel 2-HDD Network Video Recorder with 16-Port PoE |
| IP Video Input | 16 Channels |
| Maximum Recording Resolution | Up to 16MP |
| Video Compression | Ultra 265 / H.265 / H.264 |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| PoE Ports | 16 × RJ45 10/100 Mbps |
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Budget | 240W Total; up to 30W per Port |
| Hard Drive | 2 × SATA, up to 10TB per HDD |
| HDMI Output | Up to 4K (3840 × 2160) |
| AI / Smart Functions | Smart Intrusion Prevention, Vehicle Detection, UMD, Video Metadata, Traffic Monitoring and People Counting |
| VIDEO / AUDIO INPUT | |
|---|---|
| IP Video Input | 16 Channels |
| Audio Input | 1 × RCA |
| Camera Compatibility | ONVIF Profile S / Profile G / Profile T and RTSP |
| DECODING & RECORDING | |
|---|---|
| Maximum Recording Resolution | Up to 16MP |
| Recording Resolution | 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Video Compression | Ultra 265 / H.265 / H.264 |
| Synchronous Playback | 16 Channels |
| ANR | Supported |
| NETWORK | |
|---|---|
| Network Interface | 1 × RJ45 10/100/1000 Mbps Self-Adaptive Ethernet |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | Up to 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6 |
| VIDEO OUTPUT | |
|---|---|
| HDMI Output | Up to 3840 × 2160 @ 30Hz |
| VGA Output | Up to 1920 × 1080 @ 60Hz |
| Output Type | HDMI and VGA, Independent Output |
| Audio Output | 1 × RCA |
| STORAGE | |
|---|---|
| SATA | 2 × SATA Interfaces |
| Maximum HDD Capacity | Up to 10TB per HDD |
| Maximum Total Capacity | Up to 20TB with 2 × 10TB HDDs |
| Disk Group | Supported |
| Redundant Storage | Supported |
| RAID | RAID 1 |
| POE | |
|---|---|
| PoE Ports | 16 × RJ45 10/100 Mbps |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Maximum Power per Port | 30W |
| Total PoE Budget | 240W |
| PoE Function | Plug & Play |
| AI & SMART FUNCTIONS | |
|---|---|
| Smart Intrusion Prevention | Intrusion Detection / Cross Line Detection / Enter Area / Leave Area |
| Vehicle Detection | Supported |
| Ultra Motion Detection | Supported |
| Video Metadata | Supported |
| Traffic Monitoring | Supported |
| People Counting | People Flow Counting / Crowd Density Monitoring |
| VCA Search | Motor Vehicle Search / Non-Motor Vehicle Search / Human Body Search / General Search / People Counting Report |
| ALARM | |
|---|---|
| Alarm Input | 8 Channels |
| Alarm Output | 2 Channels |
| INTERFACES | |
|---|---|
| Network | 1 × RJ45 10/100/1000 Mbps |
| PoE | 16 × RJ45 10/100 Mbps |
| USB | 1 × USB 2.0 Front / 1 × USB 3.0 Rear |
| RS485 | 1 × RS485 |
| RS232 | N/A |
| Alarm Input | 8 Channels |
| Alarm Output | 2 Channels |
| HDMI | 1 × HDMI |
| VGA | 1 × VGA |
| Audio Input | 1 × RCA |
| Audio Output | 1 × RCA |
| GENERAL | |
|---|---|
| Power Supply | AC 100–240V |
| Power Consumption | ≤20W, HDD excluded |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | ≤90% RH, Non-Condensing |
| Dimensions | 380 × 322 × 53 mm |
| Weight | ≤2.6 kg, HDD excluded |
| Certifications | CE, FCC, UL, RoHS, WEEE |
Note: The Uniview NVR502-16B-P16 is a 16-channel Network Video Recorder with 16 independent PoE ports, supporting Ultra 265/H.265/H.264, up to 16MP recording, 320Mbps incoming bandwidth, 160Mbps outgoing bandwidth and two SATA HDDs up to 10TB each. It also supports HDMI 4K output, ANR, ONVIF Profile S/G/T and RTSP.
Important: The 16 PoE ports provide a total of 240W, with up to 30W per port. The separate network port is Gigabit Ethernet (10/100/1000 Mbps).
