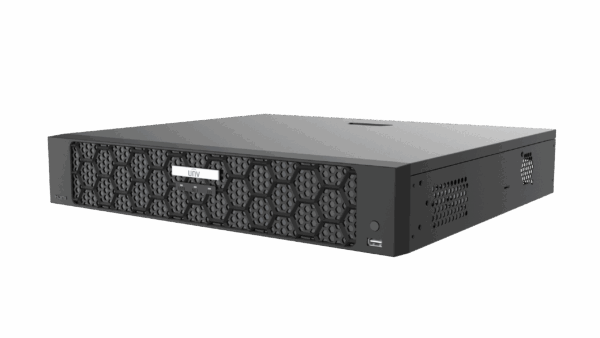

Specifications Uniview NVR504-16B-P16-IQ
| Features | Description |
|---|---|
| Product Type | 16-Channel 4-HDD 16-PoE 1.5U Network Video Recorder |
| IP Video Input | 16 Channels |
| Maximum Recording Resolution | Up to 16MP |
| Video Compression | Ultra 265 / H.265 / H.264 |
| PoE Ports | 16 × RJ45 10/100 Mbps |
| PoE Budget | 150W Total; up to 30W per Port |
| Hard Drive | 4 × SATA, up to 24TB per HDD |
| RAID | RAID 1 / RAID 5 |
| HDMI Output | Up to 4K (3840 × 2160) @ 30Hz |
| VGA Output | Up to 1920 × 1080 @ 60Hz |
| AI | Face Detection, Smart Intrusion Prevention, Ultra Motion Detection, AcuSearch, AcuTrack and Video Metadata |
| Alarm | 16 Alarm Inputs / 4 Alarm Outputs |
| DECODING | |
|---|---|
| Decoding Format | Ultra 265 / H.265 / H.264 |
| Smart Off | 2 × 16MP@30 / 2 × 12MP@30 / 4 × 4K@30 / 8 × 4MP@30 / 10 × 3MP@30 / 16 × 1080P@30 |
| Smart On | 2 × 12MP@30 / 2 × 4K@30 / 6 × 4MP@30 / 8 × 3MP@30 / 12 × 1080P@30 / 16 × 720P@30 |
| Audio Compression | G.711A / G.711U |
| NETWORK | |
|---|---|
| Network Interface | 1 × RJ45 10/100/1000 Mbps Self-Adaptive Ethernet Port |
| Incoming Bandwidth | 320 Mbps Smart Off / 160 Mbps Smart On |
| Outgoing Bandwidth | 160 Mbps |
| Maximum Remote Users | 128 |
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1X, IPv4, IPv6 |
| VIDEO / AUDIO INPUT | |
|---|---|
| IP Video Input | 16 Channels |
| Audio Input | 1 × RCA |
| IP Speaker | Up to 32 Channels |
| VIDEO / AUDIO OUTPUT | |
|---|---|
| HDMI Output | 4K (3840 × 2160) @ 30Hz; 1920 × 1080 @ 60Hz |
| VGA Output | 1920 × 1080 @ 60Hz |
| Audio Output | 1 × RCA |
| Live View Display | 1 / 4 / 6 / 8 / 9 / 16 |
| Corridor Mode | 3 / 4 / 5 / 7 / 9 / 10 / 12 / 16 |
| Two-Way Audio | 1 Channel via RCA Audio Input / Output |
| RECORDING | |
|---|---|
| Recording Resolution | 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Synchronous Playback | 16 Channels |
| ANR | Supported |
| STORAGE | |
|---|---|
| SATA | 4 × SATA Interfaces |
| Maximum HDD Capacity | Up to 24TB per HDD |
| Total Maximum Raw Capacity | Up to 96TB with 4 × 24TB HDDs |
| Disk Group | Supported |
| Redundant Storage | Supported |
| RAID | RAID 1 / RAID 5 |
| AI & SMART FUNCTIONS | |
|---|---|
| Smart by IPC | All channels, up to 8 images/s total; Face Detection, Vehicle Detection/LPR, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring and People Counting |
| Smart by NVR | Face Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) |
| Analyzer Mode | AcuSearch / AcuTrack / SIP / UMD; one mode can be active at a time |
| VCA Search | AcuSearch, AcuTrack, Face Detection Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report and Heat Map |
| AcuSearch | All channels with UNV SIP/UMD Cameras |
| AcuTrack | All channels with UNV SIP/UMD Cameras |
| Face Detection by NVR | Up to 8 channels with UNV Face Detection Cameras; up to 2 channels with normal cameras |
| Search by Image | Supported |
| SIP by NVR | Up to 4 channels with normal cameras at 2MP |
| UMD by NVR | Up to 8 channels with normal cameras at 2MP |
| Vehicle Picture Library | Up to 5 libraries / 25,000 vehicle pictures total |
| SMART SNAPSHOT STORAGE | |
|---|---|
| Face Snapshot Records | Up to 2 million |
| Vehicle Snapshot Records | Up to 2 million |
| SIP Records | Up to 3 million |
| Video Metadata Records | Up to 2 million |
| POE | |
|---|---|
| PoE Ports | 16 × RJ45 10/100 Mbps |
| PoE Standard | IEEE 802.3af / 802.3at |
| Maximum Power per Port | 30W |
| Total PoE Budget | 150W |
| Plug & Play | Supported with 16 Independent PoE Network Interfaces |
| ALARM | |
|---|---|
| Alarm Input | 16 Channels |
| Alarm Output | 4 Channels |
| INTERFACES | |
|---|---|
| Network | 1 × RJ45 10/100/1000 Mbps |
| PoE | 16 × RJ45 10/100 Mbps |
| USB | 1 × USB 2.0 Front / 1 × USB 3.0 Rear |
| RS485 | 1 × RS485 |
| RS232 | N/A |
| Alarm Input | 16 Channels |
| Alarm Output | 4 Channels |
| HDMI | 1 × HDMI |
| VGA | 1 × VGA |
| Audio Input | 1 × RCA |
| Audio Output | 1 × RCA |
| GENERAL | |
|---|---|
| Power Supply | AC 100–240V |
| Power Switch | Supported |
| Operating Temperature | -10°C to 50°C |
| Operating Humidity | ≤90% RH, Non-Condensing |
| Power Consumption | ≤12W, without HDD |
| Form Factor | 1.5U |
| Dimensions | 400 × 368 × 74 mm |
| Weight | ≤4 kg, without HDD |
| Certifications | CE, FCC, UL, RoHS, WEEE |
Note: The Uniview NVR504-16B-P16-IQ is a 16-channel 1.5U Network Video Recorder with 16 built-in PoE ports, 4 SATA interfaces, up to 16MP recording, Ultra 265/H.265/H.264 support, RAID 1/5, advanced IQ AI functions, HDMI 4K output, 16 alarm inputs and 4 alarm outputs. The 16 PoE ports support IEEE 802.3af/at with a total PoE budget of 150W.
Important: The NVR has 16 independent PoE ports for Plug & Play camera connection. Each PoE port supports up to 30W, while the total PoE budget is 150W. The separate network interface is Gigabit Ethernet (10/100/1000 Mbps).
