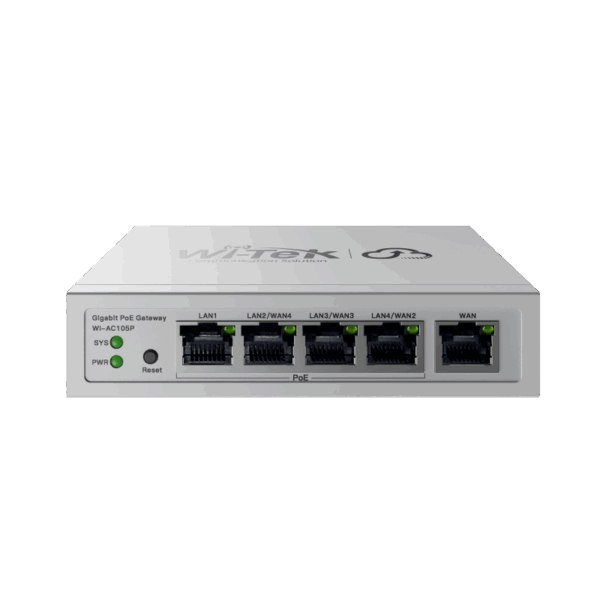

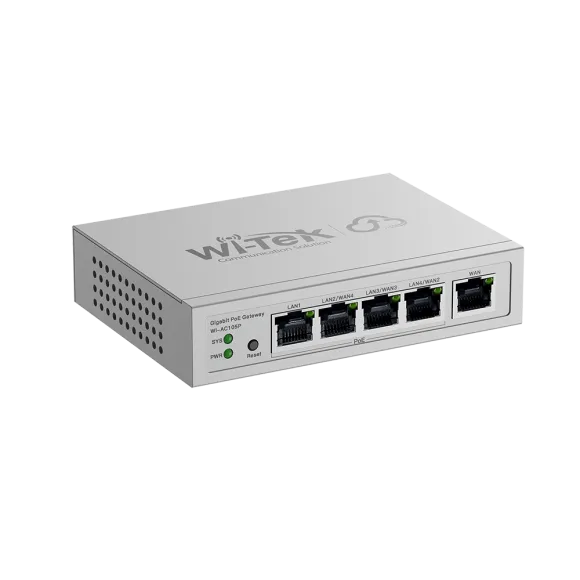

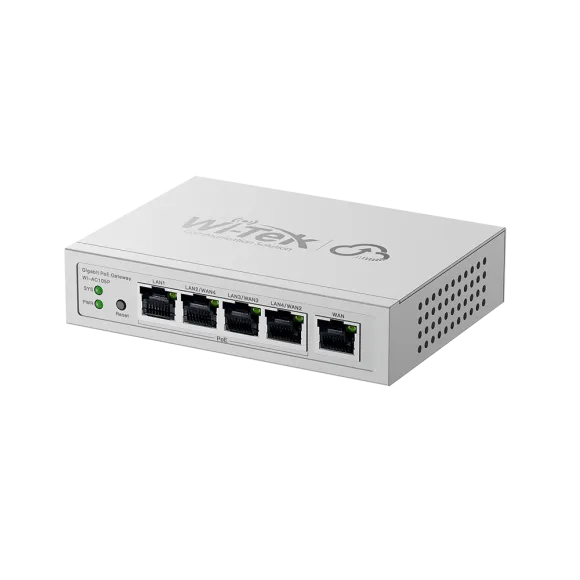

Specifications Wi-Tek WI-AC105P(V2)
| Features | Description |
|---|---|
| Device Type | Wireless Access Point Controller with PoE Gateway |
| Network Interface | 5 × Gigabit Ethernet Ports (1 WAN + 3 WAN/LAN + 1 LAN) |
| PoE Ports | 4 × 802.3af/at PoE Output Ports |
| AP Management | Supports Centralized Management up to 32 Wi-Tek Access Points |
| WAN Function | Multi-WAN Load Balance Support |
| Bandwidth | Up to 800 Mbps Recommended Bandwidth |
| VPN Support | PPTP / L2TP / IPsec / OpenVPN |
| Cloud Management | Wi-Tek Cloud Platform Support |
| Security | Firewall, ACL, VLAN, Captive Portal |
| Power Supply | AC 100-240V |
| Device Type | Wireless LAN Controller / Gateway |
|---|---|
| Processor | Dual-Core Network Processor |
| Memory | 256MB RAM / 16MB Flash |
| Ethernet Interface | 5 × 10/100/1000BASE-T |
| Maximum WAN | Supports up to 4 WAN Ports |
| POE & AP MANAGEMENT | |
|---|---|

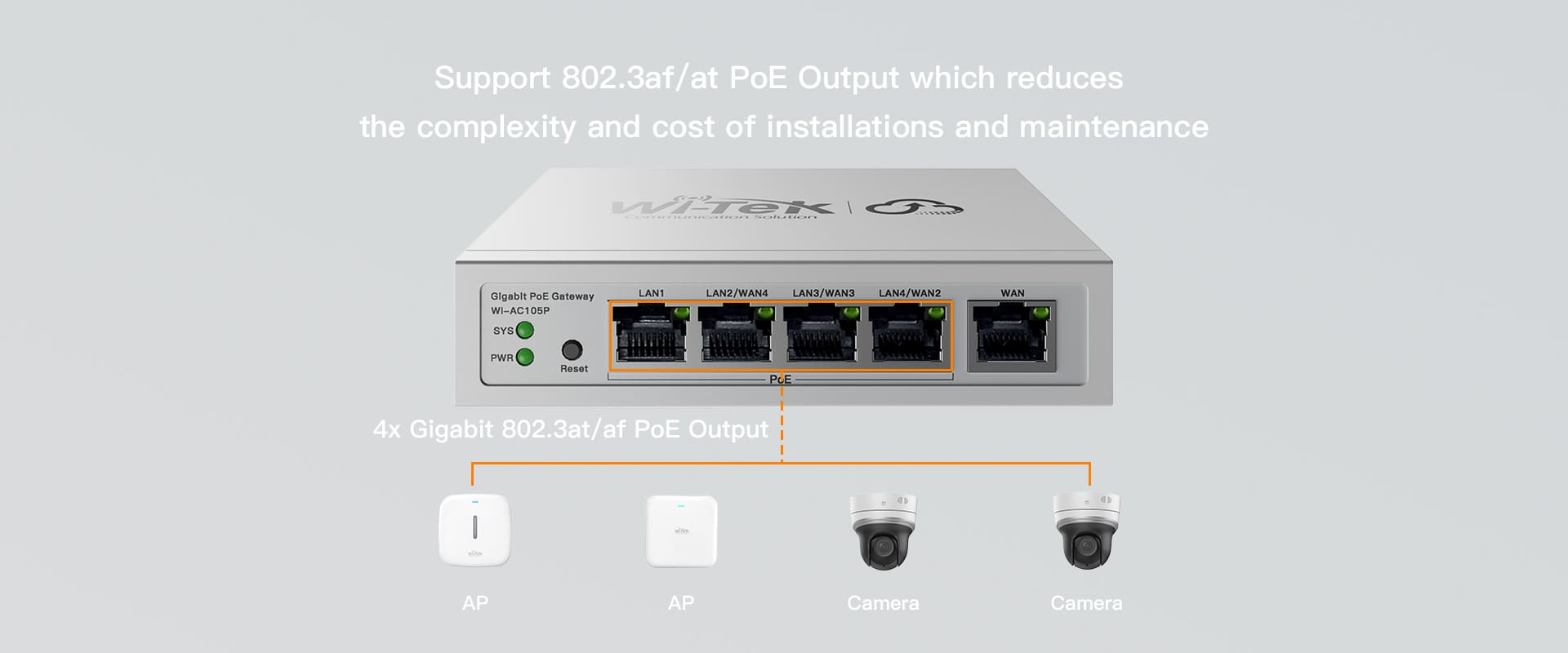

| PoE Standard | IEEE 802.3af/at PoE |
| PoE Ports | 4 × Gigabit PoE Output Ports |
| PoE Power Budget | Up to 55W |

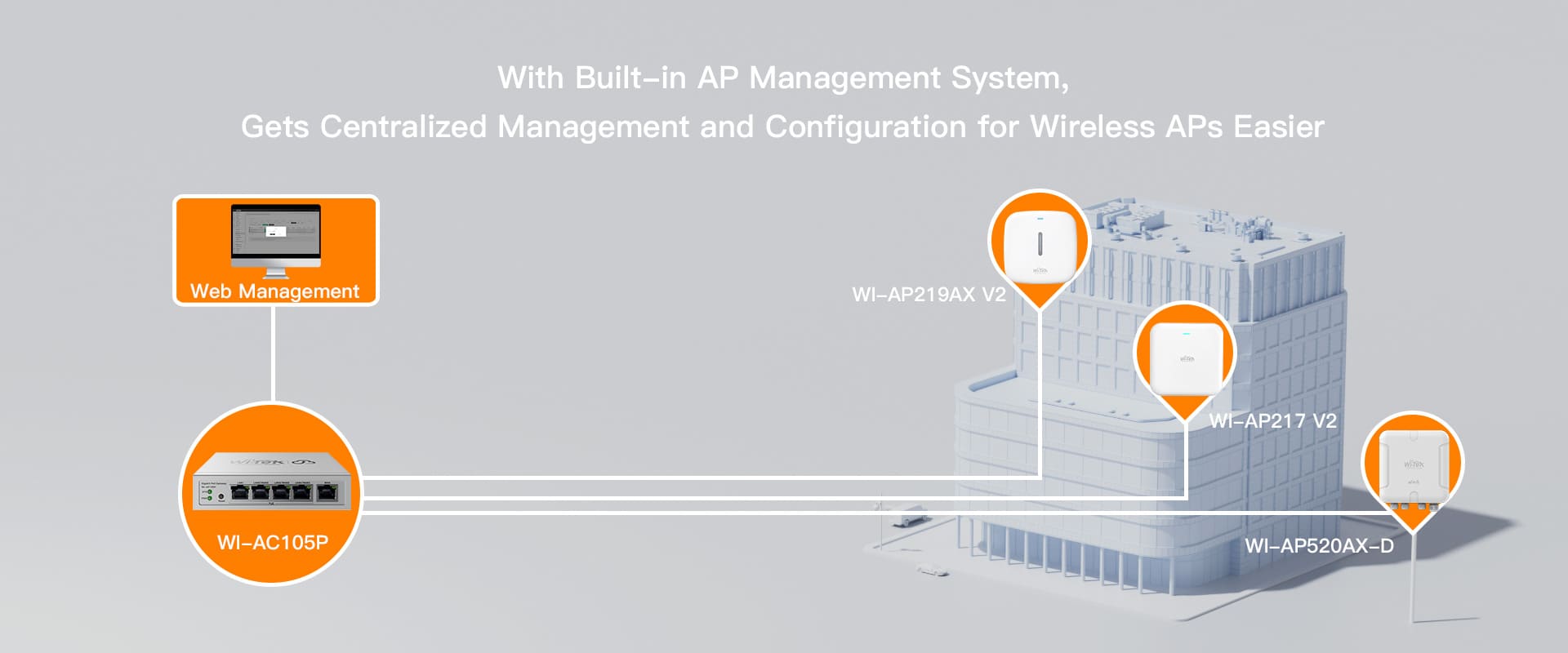

| Managed AP | Up to 32 Wi-Tek Access Points |
| Client Capacity | Up to 200 Users |
| NETWORK FEATURES | |
|---|---|
| Routing | Static Route, DHCP Server, DHCP Client, PPPoE |
| Load Balance | Multi-WAN Load Balancing |
| VLAN | 802.1Q VLAN Tagging Support |
| Bandwidth Control | IP-Based Bandwidth Management |
| Traffic Management | Traffic Monitoring and Control |
| WIRELESS MANAGEMENT | |
|---|---|
| Centralized Control | Unified Management for Indoor and Outdoor APs |
| Roaming | Fast Roaming Between Access Points |
| Wireless Optimization | Radio Spectrum Analysis |
| Captive Portal | Built-in Captive Portal Server |
| Cloud Management | Remote Configuration and Monitoring |
| SECURITY | |
|---|---|
| VPN | PPTP / L2TP / IPsec / OpenVPN |
| Firewall | Access Control List (ACL) |
| Authentication | Captive Portal Authentication |
| Access Control | MAC Filtering, Website Filtering, Time-Based Control |
| GENERAL | |
|---|---|
| Power Supply | AC 100-240V |
| Power Consumption | Max. 65W (With PoE Load) |
| Operating Temperature | -20°C to 55°C |
| Operating Humidity | 5% to 95% RH (Non-Condensing) |
| Dimensions | 230 × 150 × 45 mm |
| Weight | Approx. 0.9 kg |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official information before installation.
Important: The Wi-Tek WI-AC105P(V2) is a centralized wireless network controller with integrated Gigabit PoE gateway. It supports up to 32 Wi-Tek access points, 4 PoE output ports, multi-WAN load balancing, VPN functions, VLAN management, captive portal, and cloud management. Suitable for hotels, offices, schools, and small to medium business Wi-Fi deployments.
