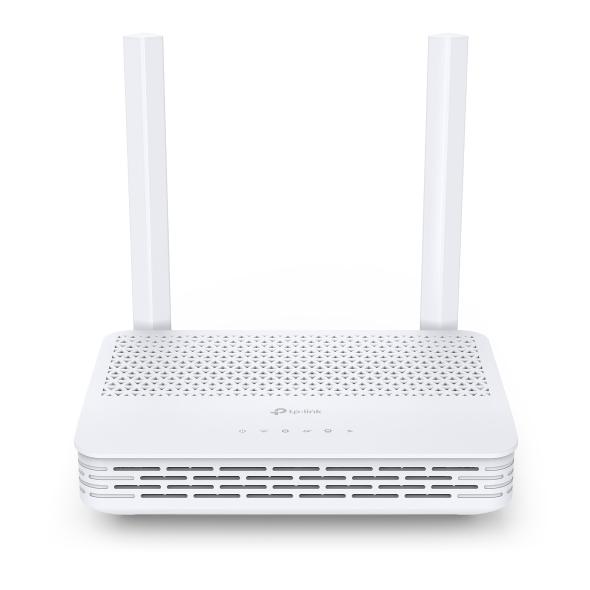

TP-Link XC220-G3

XC220-G3 | AC1200 Wireless XPON Router

TP-Link XC220-G3

AC1200 Wireless XPON Router

  • XPON dual mode supports GPON and EPON
  • Dual-band Wi-Fi up to 1.2Gbps (300Mbps 2.4GHz + 867Mbps 5GHz)
  • 2 × Gigabit LAN ports and 1 × SC/APC PON port
  • GPON speeds up to 2.488Gbps Downstream and 1.244Gbps Upstream
  • Supports EasyMesh, IPTV, WPA3 and firewall security
  • Supports OMCI, TR-069 and TP-Link Aginet cloud management
หมวดหมู่: , , ป้ายกำกับ:

Specification XC220-G3 AC1200 Dual-Band XPON Router

HARDWARE FEATURES
Interface 2 10/100/1000 Mbps RJ45 LAN Ports
1 SC/APC PON Port
Button WPS/Wi-Fi Button, RESET Button
External Power Supply 12V/1.0A
Data Rates Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)
Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)§
Antenna 2 External Antennas

WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency 2.4 GHz and 5 GHz (DFS Not supported)
Signal Rate 867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security WPA/WPA2/WPA3 encryptions
Transmission Power 2.4 GHz: 20 dBm(EIRP), 5GHz: 23dBm (EIRP)
Wireless Schedule Support 2.4 GHz and 5 GHz Wireless Schedule
Mesh Technology EasyMesh Compatible, and support 802.11k/v/r

SOFTWARE FEATURES
Quality of Service WMM
Advanced Features Parental Controls, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3
Security NAT Firewall, Access Control, MAC/IP/URL Filtering, IP and MAC Address Binding, Defense “Denial of Service (DoS), SYNFlooding, Ping of Death”
Management Features Local management: WebGUI management, Aginet app management
Remote management: Aginet ACS, OMCI, TR-069, TR-098, TR-181,TR-111,TR-143
Cloud management: TP-Link Aginet Unified Cloud (TAUC)
DHCP Server, Client
Port Forwarding Virtual Server, Port Triggering, DMZ, ALG, UPnP
Dynamic DNS DynDns, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec Pass-through
Protocols IPv4, IPv6

OTHERS
Package Content AC1200 Wireless XPON Router XC220-G3
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
GPL Statement
System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Subscription with an internet service provider (for internet access)
Environment Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–60℃ (-40℉–140℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
