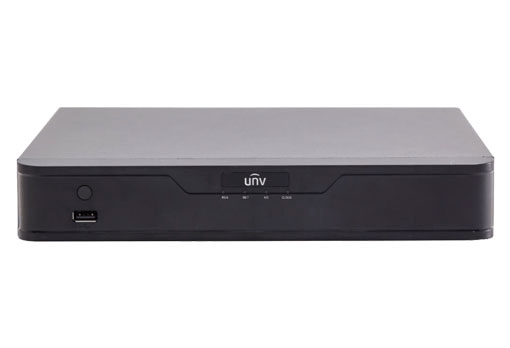

Specifications Uniview XVR302-08Q
| Features |
Description |
| Product Type |
8-Channel Hybrid XVR |
| Analog Video Input |
8 × BNC |
| IP Video Input |
4 Channels, expandable up to 12 IP Channels |
| Supported Camera Types |
TVI / AHD / CVI / CVBS / IP |
| Maximum Recording Resolution |
Up to 8MP Lite |
| HDD Interface |
2 × SATA |
| Maximum HDD Capacity |
Up to 10TB per HDD |
| Video Output |
1 × HDMI, 1 × VGA, 1 × CVBS |
| VIDEO / AUDIO INPUT |
| Analog Video Input |
8 Channels, BNC |
| IP Video Input |
4 Channels, expandable up to 12 IP Channels |
| IP Camera Resolution |
Up to 4K per channel |
| Audio Input |
1 × RCA |
| Two-Way Audio |
1 × RCA |
| ANALOG VIDEO |
| AHD |
8MP@15fps (Channel 1-2), 5MP@20fps, 4MP@30fps, 3MP@30fps (Channel 1-2), 1080P@30fps, 720P@60fps |
| TVI |
8MP@15fps (Channel 1-2), 5MP@20fps, 4MP@30fps, 3MP@20fps (Channel 1-2), 1080P@30fps, 720P@60fps |
| CVI |
8MP@15fps (Channel 1-2), 4MP@30fps, 1080P@30fps, 720P@60fps |
| CVBS |
Supported |
| Audio over Coax |
Supported |
| VIDEO RECORDING |
| Video Compression |
H.265 / H.264 |
| Recording Resolution |
8MP Lite / 5MP Lite / 4MP Lite / 3MP / 1080P / 960P / 720P / 960H / 4CIF / CIF |
| Main Stream |
8MP Lite@8fps (Channel 1-2), 5MP Lite@12fps, 4MP Lite@15fps, 3MP@15fps (Channel 1-2), 2MP@15fps, 720P@30fps |
| Sub Stream |
D1@30fps (Max.) |
| Synchronous Playback |
8 Channels |
| NETWORK |
| Network Interface |
1 × RJ45 10/100Mbps Self-Adaptive Ethernet |
| Incoming Bandwidth |
56Mbps |
| Outgoing Bandwidth |
64Mbps |
| Remote Users |
Up to 128 Users |
| Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE |
| VIDEO / AUDIO OUTPUT |
| HDMI Output |
Up to 1920 × 1080p @ 60Hz |
| VGA Output |
Up to 1920 × 1080p @ 60Hz |
| CVBS Output |
1 × BNC |
| Audio Output |
1 × RCA |
| STORAGE |
| SATA Interface |
2 × SATA |
| Maximum Capacity |
Up to 10TB per HDD |
| SMART FEATURES |
| Intrusion Detection |
Supported |
| Cross Line Detection |
Supported |
| Motion Detection |
Supported |
| Video Loss Detection |
Supported |
| Tampering Detection |
Supported |
| INTERFACE |
| USB |
Front: 1 × USB 2.0
Rear: 1 × USB 2.0 |
| RS485 |
1 × RS485 |
| Network |
1 × RJ45 10/100Mbps |
| POWER |
| Power Supply |
DC 12V |
| Power Consumption |
≤8W, Without HDD |
| PHYSICAL |
| Dimensions |
380 × 315 × 53mm |
| Weight |
≤1.9kg, Without HDD |
| ENVIRONMENT |
| Operating Temperature |
-10°C to 55°C |
| Operating Humidity |
≤90% RH, Non-Condensing |
Note: The Uniview XVR302-08Q is an 8-channel Hybrid XVR supporting TVI, AHD, CVI, CVBS and IP cameras. It provides 8 × BNC analog video inputs and supports 4 IP channels, expandable to up to 12 IP channels. The recorder supports recording resolutions up to 8MP Lite, H.265/H.264 video compression, 2 × SATA HDD interfaces, HDMI/VGA/CVBS video outputs, audio over coaxial cable and 8-channel synchronous playback.
Important: The XVR302-08Q is a Hybrid XVR, not a pure IP NVR. It supports 8 × BNC analog channels for TVI/AHD/CVI/CVBS cameras and supports 4 IP channels, expandable to up to 12 IP channels. It supports recording up to 8MP Lite, 2 × SATA HDDs up to 10TB per HDD, 1 × RJ45 10/100Mbps, 1 × RS485, HDMI/VGA output up to 1920 × 1080 and 8-channel synchronous playback.
