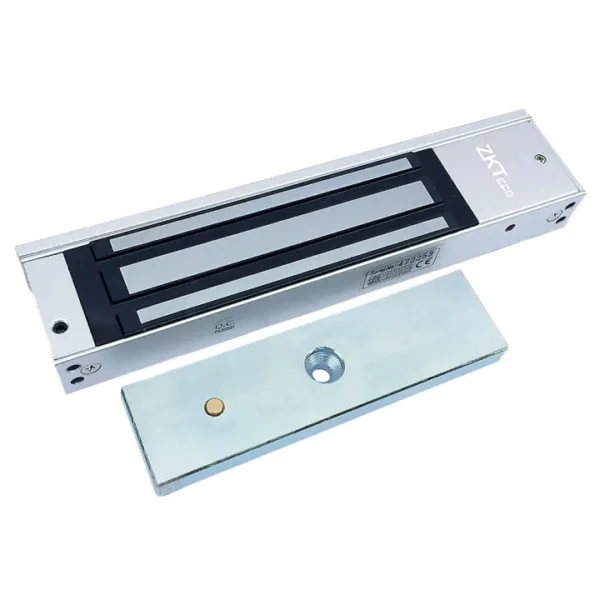

Specifications: ZKTeco LM2805
Electromagnetic locks apply the principle of electromagnetism. When the electric current passes through the silicon steel sheet, the electromagnetic lock will produce a strong suction force to tightly attract the iron plate to lock the door. A small electric current will produce a great magnetic force. When users turn off the power of the electromagnetic lock, it will lose its suction, so that users can open the door.
Features
- Input voltage DC12V
- Working current 480mA±5 %
- Tensile force range 200kg±5 %
- Lock body size 250x47x25.5mm
- Iron plate size 180x38x11mm
- Signal output : NO/COM/NC
Dimensions (W*H*D)
Lock body: 250*47*25.5mm; Iron plate: 180*38*11mm
Gross Weight
1.77kg
Mounting Brackets
LMB-280L / 280U / 280Z / 280ZL / LMD-280L / 280Z / 280ZL
Operating Voltage
12V DC
Operating Current
400mA ±5%
Temperature Rise
+15°C (Ambient temperature of 29°C; 6 hours after DC 12V is energized. The highest temperature of the lock body is 41°C)
Interface Optional
Red: + Black: –
Tensile Force Range
240kg ± 5%
