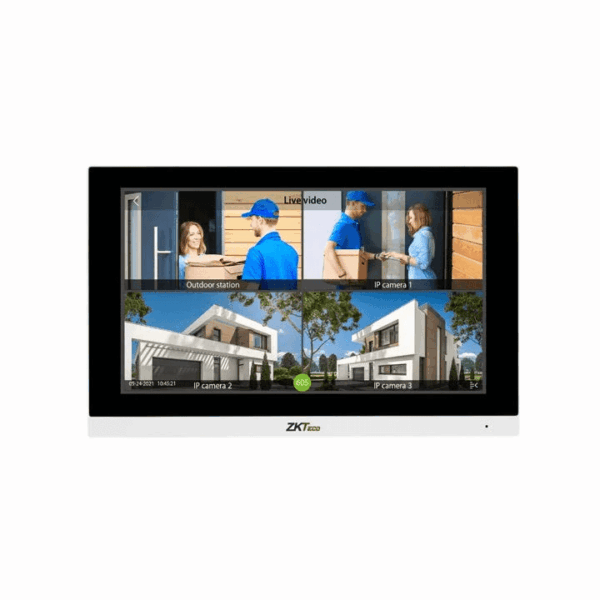

Specifications: ZKTeco VT07-B01
Features
Support video intercom, connected with access control terminal Support IPC access, support ONVIF protocol Support SIP protocol, support access sip device 7“ LCD HD touch screen Support 4-way video display on the same screen Support remote door opening Support video recording, playback and other basic functions of security NVR Support micro TF card, maximum support 128G capacity
| Category | Name | Description |
| System Parameters | OS | Linux System |
| DDR | 2G | |
| Flash | 1G | |
| Display Parameters | Display | 7″ HD LCD touchscreen. |
| Resolution | 1024*768 | |
| Video Display | Supports 4 split-screen/full-screen | |
| Network Parameters | Wired network | Supports RJ45 network port |
| Wireless network | Not supported | |
| Electrical and external interfaces |
TF card slot | Supports up to 128G micro TF card |
| Network Interface | RJ45 network port | |
| Power | DC12V 2A | |
| Working Temperature | -10°C to 55°C | |
| Other Parameters | Dimensions | 185*117*22mm |
| Weight | 410g |
