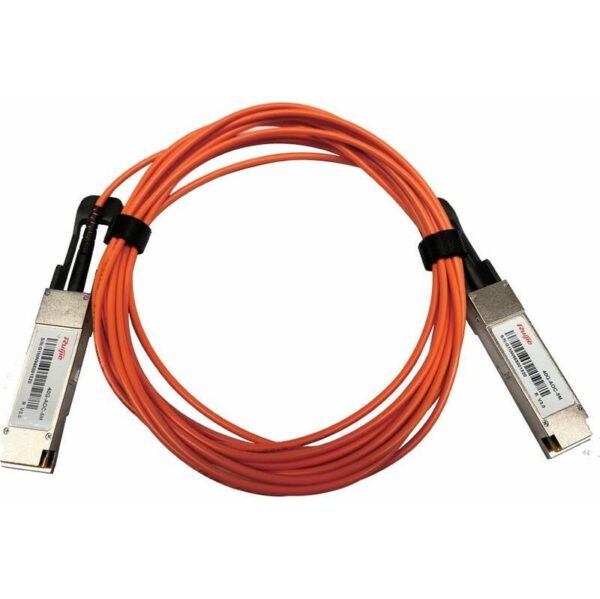

Specifications Ruijie 40G-AOC-5M
| Features | Description |
|---|---|
| Product Type | 40G Active Optical Cable (AOC) |
| Data Rate | 40 Gbps |
| Form Factor | QSFP+ |
| Connector | QSFP+ to QSFP+ |
| Cable Length | 5 m |
| Cable Type | Active Optical Fiber Cable |
| Transmission | 4 Lanes × 10.3125 Gbps per Lane |
| DDM | Not Supported |
| Environmental | Description |
|---|---|
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 10%–90% |
| Application | Description |
|---|---|
| Application | Data Center, Enterprise Network, High-Speed Switch Interconnection |
| Compatibility | Ruijie Devices and Compatible QSFP+ Equipment |
| Installation | Direct QSFP+ Port Connection |
Note: The Ruijie 40G-AOC-5M is a 40Gbps Active Optical Cable featuring QSFP+ connectors on both ends and a 5-meter cable length. It uses four 10.3125Gbps lanes and integrates optical transceiver modules into both ends, eliminating the need for additional fiber cables. It is suitable for high-speed switch interconnection and data center applications.
