Specifications Uniview B-122-AF28LM
| Features | Description |
|---|---|
| Product Type | 2MP LightHunter Fixed IR Bullet Analog Camera |
| Image Sensor | 1/2.9″ Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 |
| Lens | 2.8 mm Fixed Lens |
| Minimum Illumination | 0.005 Lux (F1.6, AGC ON), 0 Lux with IR |
| Field of View | 101.5° |
| IR Distance | Up to 40 m |
| Video Output | TVI / AHD / CVI / CVBS |
| WDR | DWDR |
| Image Enhancement | BLC / HLC / DWDR / 2D DNR / Smart IR |
| Audio | Built-in Microphone, Audio over Coaxial |
| IR-Cut Filter | Auto Switch (ICR) |
| Video Interface | 1 × BNC |
| Power Supply | DC 12V ±25% |
| Power Consumption | Max. 3.2 W |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Operating Temperature | -30°C ~ 60°C |
| Operating Humidity | ≤95% RH, Non-Condensing |
| Dimensions | 154 × 66 × 66 mm |
| Weight | Approx. 240 g |
| CAMERA & LENS | |
|---|---|
| Image Sensor | 1/2.9″ Progressive Scan CMOS |
| Resolution | 2MP (1920 × 1080) |
| Lens | 2.8 mm Fixed |
| Field of View | 101.5° |
| Minimum Illumination | 0.005 Lux (F1.6, AGC ON), 0 Lux with IR |
| IR Distance | Up to 40 m |
| VIDEO & IMAGE | |
|---|---|
| Video Output | TVI / AHD / CVI / CVBS |
| Video Interface | 1 × BNC |
| WDR | DWDR |
| Noise Reduction | 2D DNR |
| Backlight Compensation | BLC / HLC |
| Day/Night | Auto / Day / Night |
| Smart IR | Supported |
| AUDIO | |
|---|---|
| Microphone | Built-in Microphone |
| Audio Transmission | Audio over Coaxial |
| Audio Support | TVI / CVI |
| POWER & PROTECTION | |
|---|---|
| Power Supply | DC 12V ±25% |
| Power Consumption | Max. 3.2 W |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Operating Temperature | -30°C ~ 60°C |
| Operating Humidity | ≤95% RH, Non-Condensing |
| APPLICATION | |
|---|---|
| Outdoor Surveillance | Outdoor Analog CCTV Monitoring |
| Low-Light Surveillance | LightHunter Technology for Improved Low-Light Performance |
| Night Surveillance | Smart IR up to 40 m |
| Hybrid CCTV System | TVI / AHD / CVI / CVBS Compatible |

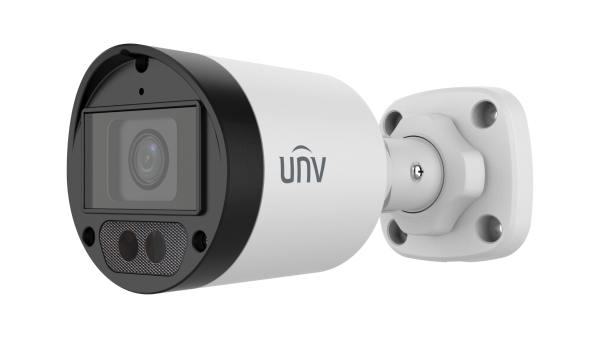

Note: The Uniview B-122-AF28LM (UAC-B122-AF28LM) is a 2MP LightHunter Fixed IR Bullet Analog Camera featuring a 1/2.9″ Progressive Scan CMOS sensor, 2.8mm fixed lens, 40m IR range, TVI/AHD/CVI/CVBS video output, built-in microphone with Audio over Coaxial, DWDR, Smart IR, IP67 weather protection and IK10 vandal resistance. It is designed for indoor and outdoor analog CCTV surveillance applications.
