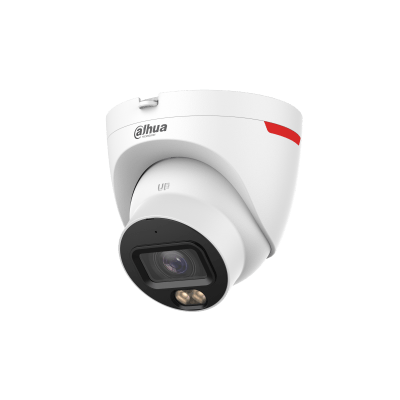

Specifications Dahua IPC-HDW2249T-S-PRO
| Features |
Description |
| Product Type |
2MP WizColor Fixed-Focal Eyeball WizSense Network Camera |
| Image Sensor |
1/2.9″ Progressive Scan CMOS |
| Maximum Resolution |
1920 × 1080 |
| Frame Rate |
Up to 25/30 fps @ 1920 × 1080 |
| Lens Type |
Fixed-Focal |
| Focal Length |
2.8 mm / 3.6 mm |
| Maximum Aperture |
F1.0 |
| Minimum Illumination |
0.0002 Lux @ F1.0 |
| Field of View |
2.8 mm: H 101° / V 53° / D 119°
3.6 mm: H 81° / V 44° / D 95° |
| Warm Light |
Up to 30 m |
| WDR |
120 dB |
| Video Compression |
H.265 / H.264 / H.264H / H.264B / MJPEG |
| Smart Codec |
Smart H.265+ / Smart H.264+ |
| Video Streams |
2 Streams |
| Bit Rate |
H.264: 32 Kbps–6144 Kbps
H.265: 12 Kbps–6144 Kbps |
| Image Enhancement |
3D NR / BLC / HLC / ROI / LDC / Smart Illumination |
| Intelligent Functions |
Intrusion / Tripwire / Human & Vehicle Classification / SMD Plus |
| Built-in Microphone |
Yes |
| Audio Compression |
G.711a / G.711Mu / PCM / G.726 |
| Network Interface |
1 × RJ-45 10/100 Base-T |
| ONVIF |
Profile S / Profile G / Profile T |
| Storage |
Micro SD up to 256GB / NAS / FTP / SFTP |
| Power Supply |
12V DC / PoE |
| Power Consumption |
Max. 4.7W (12V DC) / 5.7W (PoE) |
| Protection |
IP67 |
| Operating Temperature |
-40°C to +60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Dimensions |
109.5 × Φ109.9 mm |
| Net Weight |
0.40 kg |
| CAMERA & LENS |
| Image Sensor |
1/2.9″ Progressive Scan CMOS |
| Resolution |
2MP (1920 × 1080) |
| Lens |
Fixed-Focal, M12 Mount |
| Focal Length |
2.8 mm / 3.6 mm |
| Maximum Aperture |
F1.0 |
| Minimum Illumination |
0.0002 Lux @ F1.0 |
| Warm Light Distance |
Up to 30 m |
| WDR |
120 dB |
| INTELLIGENT FEATURES |
| Perimeter Protection |
Intrusion / Tripwire |
| Target Classification |
Human / Vehicle |
| SMD |
SMD Plus |
| Smart Search |
Supported with Smart NVR |
| VIDEO & NETWORK |
| Video Compression |
H.265 / H.264 / H.264H / H.264B / MJPEG |
| Smart Codec |
Smart H.265+ / Smart H.264+ |
| Network Port |
RJ-45 10/100 Base-T |
| ONVIF |
Profile S / Profile G / Profile T |
| Network Protocol |
IPv4 / IPv6 / TCP / UDP / RTSP / RTMP / FTP / SFTP / DHCP / DNS / DDNS / NTP / P2P |
| AUDIO & STORAGE |
| Audio |
Built-in Microphone |
| Audio Compression |
G.711a / G.711Mu / PCM / G.726 |
| Micro SD |
Up to 256GB |
| Network Storage |
NAS / FTP / SFTP |
| POWER & PROTECTION |
| Power Supply |
12V DC / PoE |
| Power Consumption |
Max. 4.7W (12V DC) / 5.7W (PoE) |
| Ingress Protection |
IP67 |
| Operating Temperature |
-40°C to +60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| APPLICATION |
| Outdoor Surveillance |
Outdoor Security Monitoring |
| Low-Light Surveillance |
WizColor Full-Color Low-Light Monitoring |
| Human & Vehicle Detection |
AI-Based Target Classification |
| Perimeter Protection |
Intrusion and Tripwire Detection |
| CCTV Network |
IP Surveillance System with PoE |
Note: The Dahua IPC-HDW2249T-S-PRO is a 2MP WizColor Fixed-Focal Eyeball WizSense Network Camera featuring a 1/2.9″ CMOS sensor, F1.0 aperture, 120dB WDR, built-in warm light up to 30m, Smart H.265+/H.264+, SMD Plus, human and vehicle classification, intrusion and tripwire detection, built-in microphone, Micro SD storage up to 256GB, PoE support and IP67 protection. It is designed for reliable low-light and outdoor surveillance applications.
