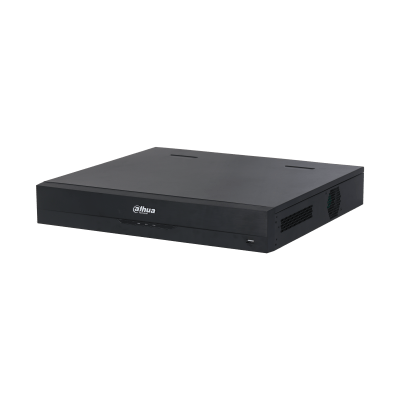

Specifications Dahua DHI-NVR5432-EI2
| Features | Description |
|---|---|
| Device Type | 32-Channel WizSense Network Video Recorder (NVR) |
| Camera Input | Up to 32 IP Cameras |
| Maximum Resolution | Up to 32 MP |
| Incoming Bandwidth | 448 Mbps |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Video Output | 2 × HDMI (Up to 8K), 2 × VGA |
| Storage | 4 × SATA HDD, Up to 20 TB per HDD |
| AI Functions | Face Recognition, Perimeter Protection, SMD Plus, AcuPick, Video Metadata |
| Network | 2 × Gigabit RJ45 Ethernet |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Device Type | 32-Channel WizSense Network Video Recorder |
|---|---|
| Camera Input | Up to 32 IP Channels |
| Maximum Camera Resolution | 32 MP |
| Incoming Bandwidth | 448 Mbps |
| Outgoing Bandwidth | 448 Mbps |
| Operating System | Embedded Linux |
| PERFORMANCE | |
|---|---|
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Decoding Capability | Up to 40 × 1080p @ 30fps |
| Video Output | 2 × HDMI (Up to 8K), 2 × VGA |
| Playback | Up to 16 Channels Simultaneously |
| AI Features | Face Recognition, Face Detection, SMD Plus, Perimeter Protection, AcuPick, Video Metadata |
| NETWORK | |
|---|---|
| Ethernet | 2 × 10/100/1000 Mbps RJ45 |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, DHCP, DNS, FTP, NTP, SMTP, SNMP, RTSP, iSCSI |
| Compatibility | ONVIF, CGI, SDK |
| Mobile Access | DMSS (iOS & Android) |
| GENERAL | |
|---|---|
| Storage | 4 × SATA HDD, Up to 20 TB per HDD |
| USB | 3 × USB (1 × USB 2.0, 2 × USB 3.0) |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature | -10°C to 55°C |
| Dimensions | 440 × 415.6 × 76 mm |
| Weight | Approx. 4.27 kg (Without HDD) |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.
Important: AI functions available on the recorder may vary depending on the connected Dahua camera models and firmware versions.
