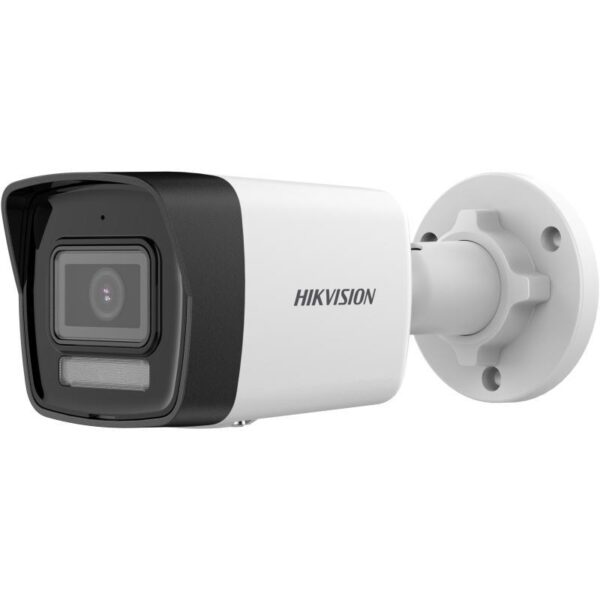

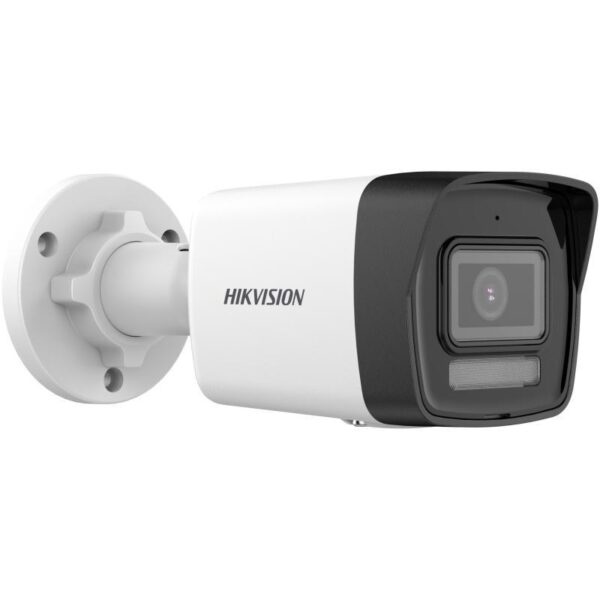

Specifications Hikvision DS-2CD1023G2-LIU(F)
| Features |
Description |
| Product Type |
2MP Smart Hybrid Light Fixed Bullet Network Camera |
| Image Sensor |
1/2.9″ Progressive Scan CMOS |
| Maximum Resolution |
2MP (1920 × 1080) |
| Lens |
2.8 mm / 4 mm Fixed Lens |
| Aperture |
F1.6 |
| Minimum Illumination |
0.005 Lux @ F1.6, AGC ON |
| Supplement Light |
IR + White Light Smart Hybrid Light |
| Supplement Light Range |
Up to 30 m |
| AI Detection |
Human and Vehicle Detection |
| Audio |
Built-in Microphone |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Storage |
MicroSD up to 512GB (-F Model) |
| PoE |
IEEE 802.3af, Class 3 |
| Protection |
IP67 |
| CAMERA |
| Image Sensor |
1/2.9″ Progressive Scan CMOS |
| Maximum Resolution |
1920 × 1080 |
| Minimum Illumination |
Color: 0.005 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Day & Night |
IR Cut Filter |
| Wide Dynamic Range |
Digital WDR |
| Image Enhancement |
BLC / HLC / 3D DNR |
| Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| LENS |
| Lens Type |
Fixed Focal Lens |
| Focal Length |
2.8 mm / 4 mm |
| Lens Mount |
M12 |
| Iris Type |
Fixed |
| Aperture |
F1.6 |
| 2.8 mm FOV |
Horizontal: 103°, Vertical: 56°, Diagonal: 121° |
| 4 mm FOV |
Horizontal: 83°, Vertical: 44°, Diagonal: 99° |
| Focus |
Fixed |
| DORI |
| 2.8 mm |
Detect: 45 m / Observe: 18 m / Recognize: 9 m / Identify: 4 m |
| 4 mm |
Detect: 56 m / Observe: 22 m / Recognize: 11 m / Identify: 5 m |
| ILLUMINATOR |
| Supplement Light Type |
IR / White Light |
| Supplement Light Range |
Up to 30 m |
| Smart Supplement Light |
Supported |
| IR Wavelength |
850 nm |
| VIDEO |
| Main Stream |
50 Hz: 25 fps up to 1920 × 1080
60 Hz: 30 fps up to 1920 × 1080 |
| Sub-Stream |
50 Hz: 25 fps / 60 Hz: 30 fps up to 640 × 480 / 640 × 360 |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Sub-Stream Compression |
H.265 / H.264 / MJPEG |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Profile |
Baseline / Main / High Profile |
| H.265 Profile |
Main Profile |
| Bit Rate Control |
CBR / VBR |
| ROI |
1 Fixed Region for Main Stream |
| AI & SMART FEATURES |
| Human Detection |
Supported |
| Vehicle Detection |
Supported |
| Human / Vehicle Classification |
Supported |
| Motion Detection |
Human and Vehicle Target Classification |
| Video Tampering Detection |
Supported |
| Exception Detection |
Supported |
| AUDIO |
| Audio Type |
Mono Sound |
| Built-in Microphone |
Supported |
| Noise Filtering |
Supported |
| Audio Sampling Rate |
8 kHz / 16 kHz |
| Audio Compression |
G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC |
| NETWORK |
| Network Interface |
1 × RJ45 10/100M Self-Adaptive Ethernet Port |
| Protocols |
TCP/IP / ICMP / DHCP / DNS / HTTP / RTP / RTSP / RTCP / NTP / IGMP / IPv6 / UDP / QoS / FTP / SMTP |
| Integration |
ONVIF Profile S / Profile T / Profile G (-F Model) |
| API |
ISAPI / SDK |
| Cloud Service |
Hik-Connect |
| Client Software |
iVMS-4200 / Hik-Connect |
| Simultaneous Live View |
Up to 6 Channels |
| Maximum Users |
Up to 32 Users |
| STORAGE |
| MicroSD Card |
Up to 512GB (-F Model) |
| Storage Type |
MicroSD / MicroSDHC / MicroSDXC |
| ANR |
Supported on -F Model |
| Memory Card Recording |
Supported on -F Model |
| INTERFACE |
| Ethernet |
1 × RJ45 10/100M |
| Built-in Microphone |
Supported |
| Memory Card Slot |
Built-in on -F Model |
| Reset Key |
Available on -F Model |
| EVENT |
| Motion Detection |
Supported with Human and Vehicle Target Classification |
| Video Tampering Alarm |
Supported |
| Exception Detection |
Supported |
| Alarm Linkage |
FTP / Memory Card (-F) / Email / Surveillance Center / Recording (-F) / Capture |
| POWER |
| Power Supply |
12 VDC ±25%, 0.4 A |
| Maximum Power Consumption |
12 VDC: Max. 5W / PoE: Max. 6.5W |
| PoE Standard |
IEEE 802.3af, Class 3 |
| Power Interface |
Ø5.5 mm Coaxial Power Plug |
| Reverse Polarity Protection |
Supported |
| PROTECTION & GENERAL |
| Ingress Protection |
IP67 |
| Housing Material |
Metal & Plastic |
| Operating Temperature |
-30°C to 60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Dimensions |
170.8 × 66 × 69.1 mm |
| Net Weight |
Approx. 265 g |
Note: The Hikvision DS-2CD1023G2-LIU(F) is a 2MP Smart Hybrid Light Fixed Bullet Network Camera featuring a 1/2.9″ Progressive Scan CMOS sensor, 1920 × 1080 resolution and a 2.8 mm or 4 mm fixed lens with F1.6 aperture. It supports IR and white light up to 30 m, Human and Vehicle Detection, built-in microphone, H.265+ compression, MicroSD storage up to 512GB on the -F model and IEEE 802.3af PoE.
Important: The Hikvision DS-2CD1023G2-LIU(F) is a 2MP Smart Hybrid Light Fixed Bullet Network Camera featuring 2.8 mm / 4 mm fixed lens, F1.6 aperture and up to 30 m IR / white light. It supports Human and Vehicle Detection, built-in microphone, IP67 protection and IEEE 802.3af PoE. The -F model provides a built-in MicroSD card slot supporting up to 512GB and a reset key.
