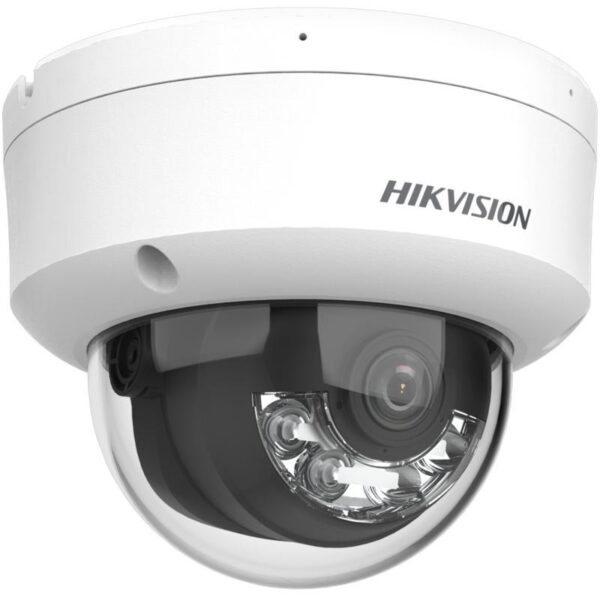

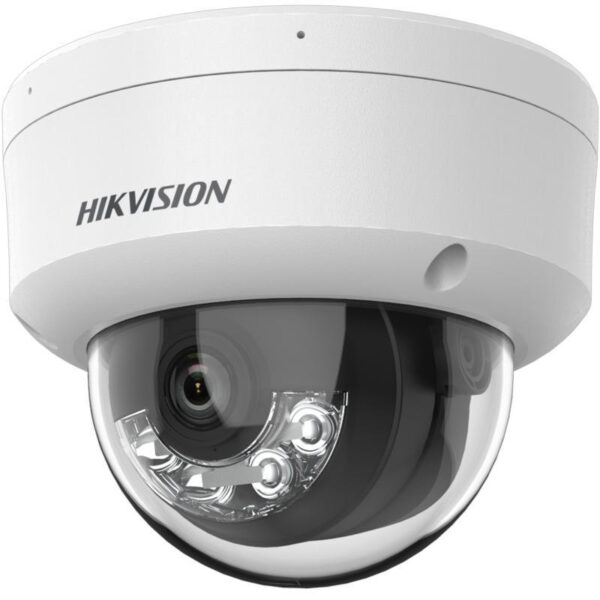

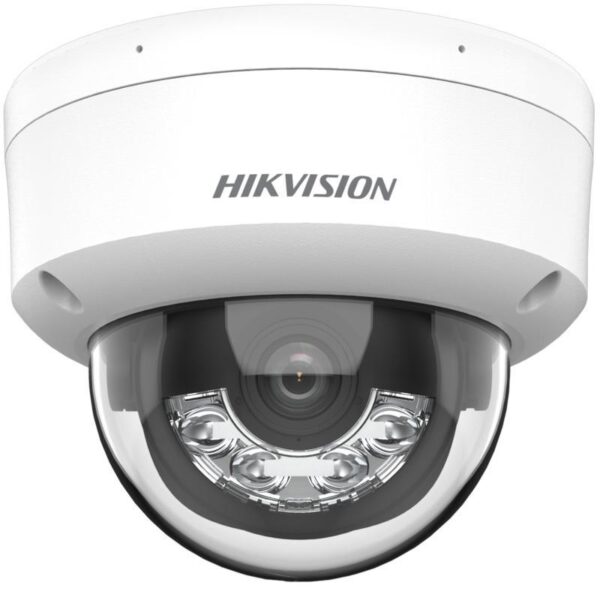

Specifications Hikvision DS-2CD1143G2-LIU
| Features | Description |
|---|---|
| Product Type | 4 MP Smart Hybrid Light Fixed Dome Network Camera |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Maximum Resolution | 2560 × 1440 |
| Lens Type | Fixed Focal Lens |
| Lens Options | 2.8 mm / 4 mm |
| Aperture | F1.6 |
| Minimum Illumination | Color: 0.005 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR |
| WDR | 120 dB |
| Video | Description |
|---|---|
| Main Stream | 20 fps @ 2560 × 1440 |
| Sub Stream | 25 fps @ 1280 × 720 (50 Hz); 24 fps @ 1280 × 720 (60 Hz) |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Image Enhancement | BLC / HLC / 3D DNR |
| ROI | 1 Fixed Region for Main Stream |
| Illumination & Detection | Description |
|---|---|
| Supplement Light | IR / White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Supported |
| Human & Vehicle Detection | Supported |
| Motion Detection | Supported with Human/Vehicle Target Classification |
| Day & Night | IR Cut Filter |
| Audio & Storage | Description |
|---|---|
| Built-in Microphone | Yes |
| Audio Type | Mono Sound |
| Noise Filtering | Supported |
| On-board Storage | microSD / microSDHC / microSDXC, up to 512 GB (Optional) |
| Network & Interface | Description |
|---|---|
| Ethernet | 1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port |
| PoE | IEEE 802.3af, Class 3, Max. 7.5 W |
| Network Protocols | TCP/IP, IPv4/IPv6, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, SMTP, SNMP, IGMP, 802.1X, QoS |
| Users | Up to 32 Users |
| Client | iVMS-4200 / Hik-Connect |
| General | Description |
|---|---|
| Power Supply | 12 VDC ±25%, Max. 6 W; PoE: Max. 7.5 W |
| Protection | IP67 / IK08 |
| Material | Metal & Plastic |
| Dimension | Ø121.4 × 97.7 mm |
| Weight | Approx. 550 g |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | Up to 95%, Non-Condensing |
Note: The Hikvision DS-2CD1143G2-LIU is a 4 MP Smart Hybrid Light Fixed Dome Network Camera featuring a 1/3″ Progressive Scan CMOS sensor, 2.8 mm/4 mm fixed lens options, 120 dB WDR, up to 30 m IR/white light illumination, human and vehicle detection, built-in microphone, H.265+ compression, optional microSD storage up to 512 GB, PoE support, and IP67/IK08 protection.
