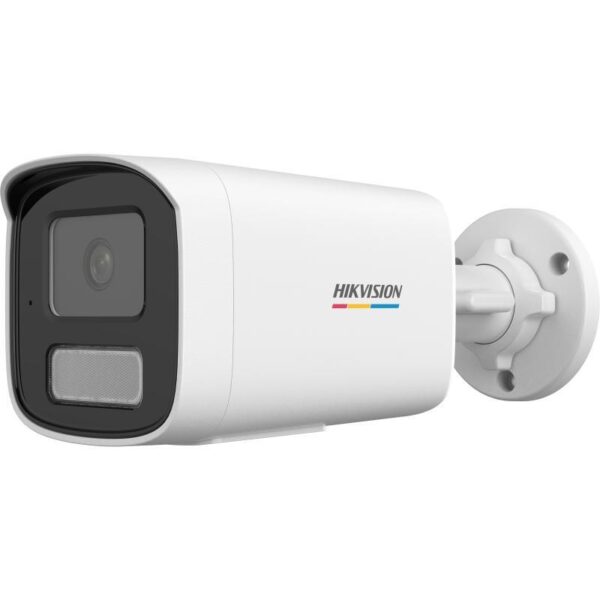

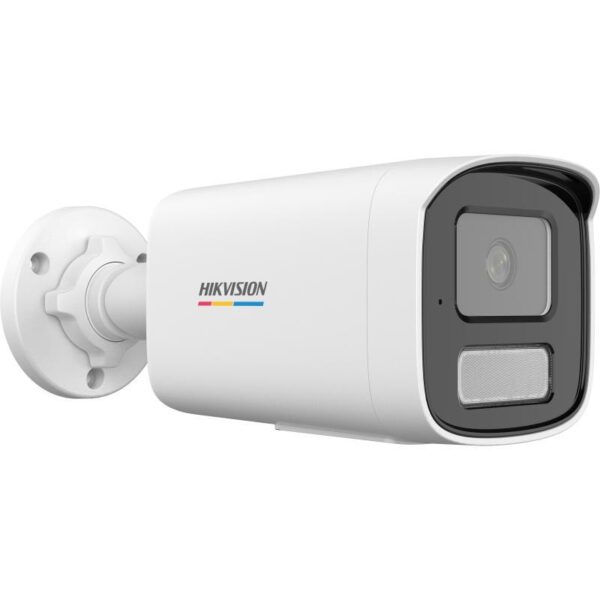

Specifications Hikvision DS-2CD1T47G2H-LIUF
| Features |
Description |
| Product Type |
4MP ColorVu with Smart Hybrid Light Fixed Bullet Network Camera |
| Series |
ColorVu |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Maximum Resolution |
4MP (2560 × 1440) |
| Lens |
2.8 mm / 4 mm Fixed Lens |
| Aperture |
F1.0 |
| Minimum Illumination |
0.0005 Lux @ F1.0, AGC ON |
| WDR |
120 dB |
| Smart Hybrid Light |
IR / White Light / Smart Mode |
| Supplement Light Range |
Up to 30 m |
| AI Detection |
Human and Vehicle Detection |
| Audio |
Built-in Microphone |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Storage |
MicroSD up to 512GB |
| PoE |
IEEE 802.3af, Class 3 |
| Protection |
IP67 |
| CAMERA |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Maximum Resolution |
2560 × 1440 |
| Minimum Illumination |
Color: 0.0005 Lux @ F1.0, AGC ON; B/W: 0 Lux with IR |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Day & Night |
IR Cut Filter |
| Wide Dynamic Range |
120 dB |
| Image Enhancement |
BLC / HLC / 3D DNR |
| Angle Adjustment |
Pan: 0° to 355°, Tilt: 0° to 180°, Rotate: 0° to 355° |
| LENS |
| Lens Type |
Fixed Focal Lens |
| Focal Length |
2.8 mm / 4 mm |
| Lens Mount |
M12 |
| Iris Type |
Fixed |
| Aperture |
F1.0 |
| 2.8 mm FOV |
Horizontal: 115°, Vertical: 60°, Diagonal: 143° |
| 4 mm FOV |
Horizontal: 94°, Vertical: 50°, Diagonal: 110° |
| Focus |
Fixed |
| DORI |
| 2.8 mm |
Detect: 63 m / Observe: 25 m / Recognize: 12 m / Identify: 6 m |
| 4 mm |
Detect: 89 m / Observe: 35 m / Recognize: 18 m / Identify: 9 m |
| ILLUMINATOR |
| Supplement Light Type |
IR / White Light |
| Supplement Light Range |
Up to 30 m |
| Smart Supplement Light |
Supported |
| Smart Hybrid Light Modes |
Smart IR / ColorVu / Smart Mode |
| IR Wavelength |
850 nm |
| VIDEO |
| Main Stream |
50 Hz: 25 fps up to 2560 × 1440
60 Hz: 30 fps up to 2560 × 1440 |
| Sub-Stream |
50 Hz: 25 fps / 60 Hz: 30 fps up to 1280 × 720 |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Profile |
Baseline / Main / High Profile |
| H.265 Profile |
Main Profile |
| Bit Rate Control |
CBR / VBR |
| ROI |
Supported |
| 3D DNR |
Supported |
| AI & SMART FEATURES |
| Human Detection |
Supported |
| Vehicle Detection |
Supported |
| Human / Vehicle Classification |
Supported |
| Motion Detection |
Human and Vehicle Target Classification |
| Video Tampering Detection |
Supported |
| Exception Detection |
Supported |
| AUDIO |
| Audio Type |
Mono Sound |
| Built-in Microphone |
Supported |
| Audio Compression |
G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC |
| Noise Filtering |
Supported |
| NETWORK |
| Network Interface |
1 × RJ45 10/100M Self-Adaptive Ethernet Port |
| Protocols |
TCP/IP / ICMP / DHCP / DNS / HTTP / RTP / RTSP / RTCP / NTP / IGMP / UDP / QoS / FTP / SMTP / UPnP / IPv4 / IPv6 |
| Integration |
ONVIF Profile S / Profile G / Profile T |
| API |
ISAPI / SDK |
| Cloud Service |
Hik-Connect |
| Client Software |
iVMS-4200 / Hik-Connect |
| Simultaneous Live View |
Up to 6 Channels |
| STORAGE |
| MicroSD Card |
Up to 512GB |
| Storage Type |
MicroSD / MicroSDHC / MicroSDXC |
| ANR |
Supported |
| INTERFACE |
| Ethernet |
1 × RJ45 10/100M |
| Built-in Microphone |
Supported |
| Memory Card Slot |
Built-in MicroSD Card Slot |
| Reset Key |
Supported |
| POWER |
| Power Supply |
12 VDC ±25% |
| Maximum Power Consumption |
12 VDC: Max. 6.8W / PoE: Max. 8.3W |
| PoE Standard |
IEEE 802.3af, Class 3 |
| Power Interface |
Ø5.5 mm Coaxial Power Plug |
| Reverse Polarity Protection |
Supported |
| PROTECTION & GENERAL |
| Ingress Protection |
IP67 |
| Housing Material |
Metal Front Cover / Plastic Body |
| Operating Temperature |
-30°C to 60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Dimensions |
81 × 83.7 × 201.96 mm |
| Net Weight |
Approx. 550 g |
Note: The Hikvision DS-2CD1T47G2H-LIUF is a 4MP ColorVu with Smart Hybrid Light Fixed Bullet Network Camera featuring a 1/3″ Progressive Scan CMOS sensor, 2560 × 1440 resolution and a 2.8 mm or 4 mm fixed lens with F1.0 aperture. It supports Smart Hybrid Light with IR and white light up to 30 m, Human and Vehicle Detection, built-in microphone, H.265+ compression, MicroSD storage up to 512GB and IEEE 802.3af PoE.
Important: The Hikvision DS-2CD1T47G2H-LIUF is a 4MP ColorVu Fixed Bullet Network Camera featuring F1.0 aperture, Smart Hybrid Light and up to 30 m supplemental lighting. It supports Human and Vehicle Detection, built-in microphone, MicroSD up to 512GB, IP67 protection and IEEE 802.3af PoE. The camera is available with 2.8 mm and 4 mm fixed lens options.
