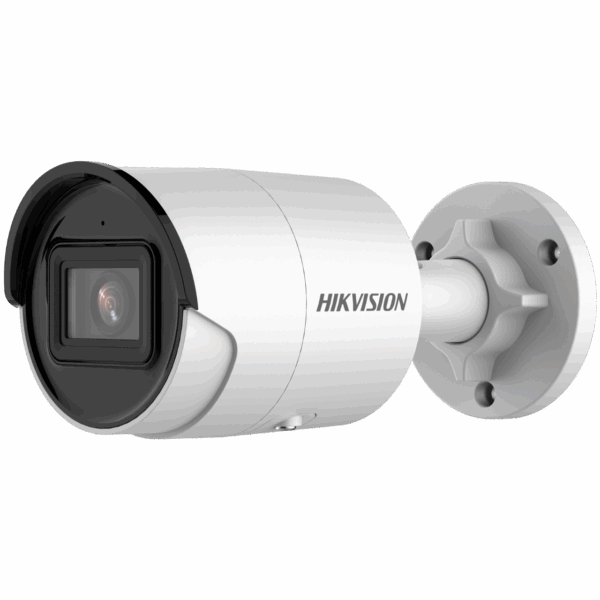

Specifications Hikvision DS-2CD2026G2-I

Features	Description
Product Type	2 MP AcuSense Powered-by-DarkFighter Fixed Bullet Network Camera
Image Sensor	1/2.8″ Progressive Scan CMOS
Max. Resolution	1920 × 1080
Min. Illumination	Color: 0.002 Lux @ F1.4, AGC ON; B/W: 0 Lux with IR
Lens	Fixed Focal Lens, 2.8 / 4 / 6 mm
Aperture	F1.4
WDR	120 dB True WDR
IR Range	Up to 40 m
Video Compression	H.265+ / H.265 / H.264+ / H.264
Frame Rate	Up to 25 fps (50 Hz) / 30 fps (60 Hz)
AI Features	AcuSense Human and Vehicle Target Classification
Perimeter Protection	Line Crossing / Intrusion / Region Entrance / Region Exiting
Face Capture	Supported
Storage	Built-in MicroSD Card Slot, up to 256 GB
Network Interface	1 × RJ45 10/100 Mbps
PoE	IEEE 802.3af, Class 3
Power Supply	12 VDC ±25%
Power Consumption	Max. 6 W (12 VDC) / Max. 7 W (PoE)
Protection	IP67
Operating Temperature	-30°C ~ 60°C
Dimensions	Ø70 × 161.7 mm
Weight	Approx. 480 g

CAMERA & IMAGE
Image Sensor	1/2.8″ Progressive Scan CMOS
Max. Resolution	1920 × 1080
Min. Illumination	Color: 0.002 Lux @ F1.4, AGC ON; B/W: 0 Lux with IR
Shutter Time	1/3 s ~ 1/100,000 s
Day & Night	IR Cut Filter
WDR	120 dB True WDR
Noise Reduction	3D DNR
Image Enhancement	BLC / HLC / 3D DNR
Angle Adjustment	Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°

LENS & IR
Lens Type	Fixed Focal Lens
Focal Length	2.8 mm / 4 mm / 6 mm
Aperture	F1.4
Lens Mount	M12
Horizontal FOV	107° (2.8 mm) / 86° (4 mm) / 55° (6 mm)
Vertical FOV	57° (2.8 mm) / 47° (4 mm) / 29° (6 mm)
Diagonal FOV	129° (2.8 mm) / 102° (4 mm) / 65° (6 mm)
DORI	2.8 mm: D 44.3 m / O 17.6 m / R 8.9 m / I 4.4 m 4 mm: D 53.4 m / O 21.2 m / R 10.7 m / I 5.3 m 6 mm: D 86.9 m / O 34.5 m / R 17.4 m / I 8.7 m
IR Range	Up to 40 m
IR Wavelength	850 nm
Smart Supplement Light	Supported

VIDEO
Main Stream	50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream	50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream	Up to 10 fps
Video Compression	H.265+ / H.265 / H.264+ / H.264
Video Bit Rate	32 Kbps ~ 8 Mbps
H.264 Profile	Baseline / Main / High Profile
H.265 Profile	Main Profile
Bit Rate Control	CBR / VBR
ROI	Supported

AI & SMART FEATURES
AcuSense	Human and Vehicle Target Classification
Perimeter Protection	Line Crossing / Intrusion / Region Entrance / Region Exiting
Face Capture	Supported
Motion Detection	Human and Vehicle Target Classification
Video Tampering	Supported

NETWORK & STORAGE
Network Interface	1 × RJ45 10/100 Mbps Self-Adaptive Ethernet
PoE	IEEE 802.3af, Class 3
Network Protocols	TCP/IP / HTTP / HTTPS / FTP / DHCP / DNS / DDNS / RTP / RTSP / NTP / UPnP / SMTP / IGMP / 802.1X / QoS / IPv4 / IPv6 / UDP / Bonjour / SSL/TLS / PPPoE / SNMP
ONVIF	Profile S / Profile G / Profile T
MicroSD	Up to 256 GB
Network Storage	NAS (NFS, SMB/CIFS) / ANR
Client	iVMS-4200 / Hik-Connect / Hik-Central

POWER & GENERAL
Power Supply	12 VDC ±25%, 0.5 A; PoE IEEE 802.3af, Class 3
Power Consumption	Max. 6 W (12 VDC) / Max. 7 W (PoE)
Protection	IP67
Operating Temperature	-30°C ~ 60°C
Operating Humidity	95% or Less, Non-Condensing
Material	ADC12 Aluminum Alloy
Dimensions	Ø70 × 161.7 mm
Weight	Approx. 480 g

Note: The Hikvision DS-2CD2026G2-I is a 2MP AcuSense Powered-by-DarkFighter fixed bullet network camera featuring 1920 × 1080 resolution, 120 dB True WDR, H.265+ compression, up to 40 m IR illumination, human and vehicle target classification, perimeter protection, Face Capture, microSD storage up to 256 GB, PoE and IP67 protection. Available fixed lens options are 2.8 mm, 4 mm and 6 mm.
