Specifications Hikvision DS-2CD2027G2-L
| Features |
Description |
| Product Type |
2MP ColorVu Fixed Mini Bullet Network Camera |
| Series |
ColorVu |
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
| Maximum Resolution |
2MP (1920 × 1080) |
| Lens |
2.8 mm / 4 mm / 6 mm Fixed Lens |
| Aperture |
F1.0 |
| WDR |
120 dB |
| Supplement Light |
White Light up to 40 m |
| AI Detection |
Human and Vehicle Classification |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Storage |
MicroSD up to 512GB |
| PoE |
IEEE 802.3af, Class 3 |
| Protection |
IP67 |
| CAMERA |
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
| Maximum Resolution |
1920 × 1080 |
| Minimum Illumination |
0.0005 Lux @ F1.0, AGC ON; 0 Lux with White Light |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Slow Shutter |
Supported |
| Day/Night |
Day / Night / Auto / Schedule |
| Wide Dynamic Range |
120 dB |
| SNR |
≥52 dB |
| Image Enhancement |
BLC / HLC / 3D DNR |
| LENS |
| Lens Type |
Fixed Focal Lens |
| Focal Length |
2.8 mm / 4 mm / 6 mm |
| Lens Mount |
M12 |
| Aperture |
F1.0 |
| 2.8 mm FOV |
Horizontal: 107°, Vertical: 56°, Diagonal: 127° |
| 4 mm FOV |
Horizontal: 84°, Vertical: 45°, Diagonal: 99° |
| 6 mm FOV |
Horizontal: 55°, Vertical: 30°, Diagonal: 63° |
| Focus |
Fixed |
| DORI |
| 2.8 mm |
Detect: 46 m / Observe: 18 m / Recognize: 9 m / Identify: 4 m |
| 4 mm |
Detect: 56 m / Observe: 22 m / Recognize: 11 m / Identify: 5 m |
| 6 mm |
Detect: 83 m / Observe: 33 m / Recognize: 16 m / Identify: 8 m |
| ILLUMINATOR |
| Supplement Light Type |
White Light |
| Supplement Light Range |
Up to 40 m |
| Smart Supplement Light |
Supported |
| VIDEO |
| Main Stream |
50 Hz: 25 fps up to 1920 × 1080
60 Hz: 30 fps up to 1920 × 1080 |
| Sub-Stream |
50 Hz: 25 fps / 60 Hz: 30 fps up to 640 × 480 / 640 × 360 |
| Third Stream |
Up to 10 fps |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Sub-Stream Compression |
H.265 / H.264 / MJPEG |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Profile |
Baseline / Main / High Profile |
| H.265 Profile |
Main Profile |
| ROI |
Supported |
| IMAGE FEATURES |
| WDR |
120 dB |
| Backlight Compensation |
Supported |
| Highlight Compensation |
Supported |
| 3D DNR |
Supported |
| Privacy Mask |
Supported |
| Image Adjustment |
Rotate / Saturation / Brightness / Contrast / Sharpness / Gain / White Balance |
| Image Parameters Switch |
Supported |
| SMART & AI FEATURES |
| Human Detection |
Supported |
| Vehicle Detection |
Supported |
| Human / Vehicle Classification |
Deep Learning Based |
| Face Capture |
Supported |
| Line Crossing Detection |
Supported |
| Intrusion Detection |
Supported |
| Region Entrance Detection |
Supported |
| Region Exiting Detection |
Supported |
| Scene Change Detection |
Supported |
| Motion Detection |
Human and Vehicle Target Classification |
| Video Tampering Detection |
Supported |
| NETWORK |
| Network Interface |
1 × RJ45 10/100M Self-Adaptive Ethernet Port |
| Protocols |
TCP/IP / ICMP / HTTP / HTTPS / FTP / DHCP / DNS / DDNS / RTP / RTSP / NTP / UPnP / SMTP / IGMP / 802.1X / QoS / IPv4 / IPv6 / UDP / Bonjour / SSL/TLS / PPPoE / SNMP |
| Integration |
ONVIF Profile S / Profile G / Profile T |
| API |
ISAPI / SDK / ISUP |
| Cloud Service |
Hik-Connect |
| Client Software |
iVMS-4200 / Hik-Central |
| STORAGE |
| MicroSD Card |
Up to 512GB |
| Storage Type |
MicroSD / MicroSDHC / MicroSDXC |
| Network Storage |
NAS |
| ANR |
Supported |
| INTERFACE |
| Ethernet |
1 × RJ45 10/100M |
| Built-in Microphone |
Not Available on DS-2CD2027G2-L; Available on DS-2CD2027G2-LU |
| Reset Button |
Supported |
| POE & POWER |
| PoE Standard |
IEEE 802.3af, Class 3 |
| Power Supply |
12 VDC ±25%, 0.5 A |
| Maximum Power Consumption |
12 VDC: Max. 6.0W / PoE: Max. 7.5W |
| Power Interface |
Ø5.5 mm Coaxial Power Plug |
| PROTECTION & GENERAL |
| Ingress Protection |
IP67 |
| Operating Temperature |
-30°C to 60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Dimensions |
215.2 × 78.8 × 78.6 mm |
| Net Weight |
Approx. 680 g |

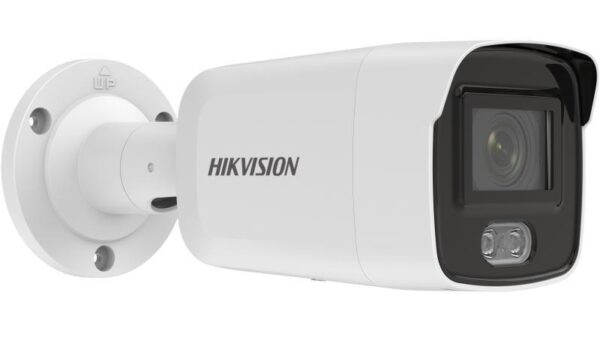

Note: The Hikvision DS-2CD2027G2-L is a 2MP ColorVu Fixed Mini Bullet Network Camera featuring a 1/2.8″ Progressive Scan CMOS sensor, 1920 × 1080 resolution and a F1.0 fixed lens available in 2.8 mm, 4 mm and 6 mm options. It provides 24/7 colorful imaging, 120 dB WDR, up to 40 m white light, deep-learning-based human and vehicle classification, H.265+ compression, MicroSD storage up to 512GB and IEEE 802.3af PoE.
Important: The Hikvision DS-2CD2027G2-L is a 2MP ColorVu Fixed Mini Bullet Network Camera featuring a F1.0 lens and 24/7 full-color imaging. It provides 120 dB WDR, up to 40 m white light, human and vehicle classification, face capture, line crossing and intrusion detection. The camera also supports MicroSD up to 512GB, IP67 protection and IEEE 802.3af PoE. The -U variant additionally includes a built-in microphone.
