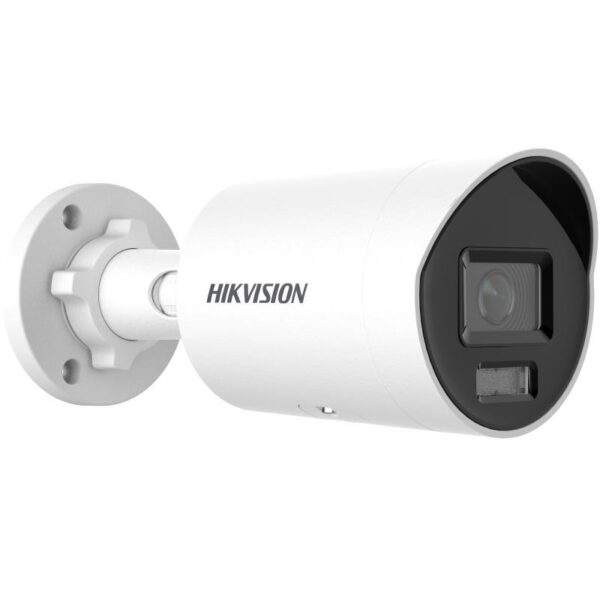

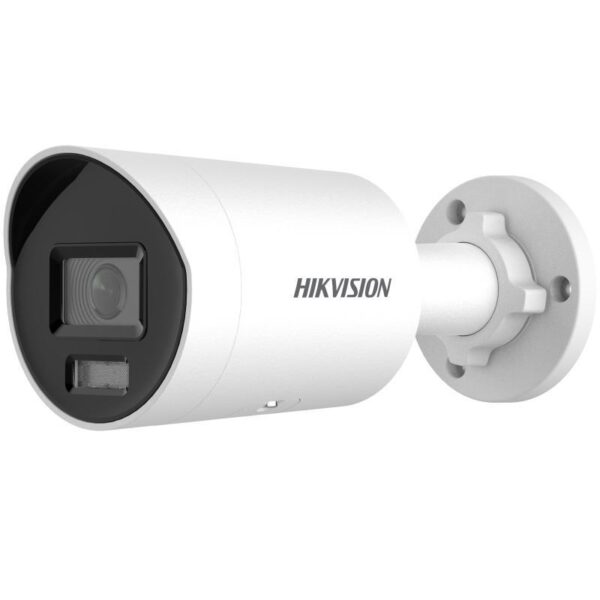

Specifications Hikvision DS-2CD2047G2H-LIU
| Features |
Description |
| Product Type |
4MP Smart Hybrid Light ColorVu Fixed Mini Bullet Network Camera |
| Series |
ColorVu |
| Image Sensor |
1/1.8″ Progressive Scan CMOS |
| Maximum Resolution |
4MP (2688 × 1520) |
| Lens |
2.8 mm / 4 mm Fixed Lens |
| Aperture |
F1.0 |
| WDR |
130 dB |
| Supplement Light |
IR + White Light, up to 40 m |
| AI Detection |
Human and Vehicle Classification |
| Audio |
Built-in Microphone |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Storage |
MicroSD up to 512GB |
| PoE |
IEEE 802.3af, Class 3 |
| Protection |
IP67 |
| CAMERA |
| Image Sensor |
1/1.8″ Progressive Scan CMOS |
| Maximum Resolution |
2688 × 1520 |
| Minimum Illumination |
Color: 0.0005 Lux @ F1.0, AGC ON; 0 Lux with Light |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Day & Night |
IR Cut Filter |
| Wide Dynamic Range |
130 dB |
| Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| LENS |
| Lens Type |
Fixed Focal Lens |
| Focal Length |
2.8 mm / 4 mm |
| Lens Mount |
M16 |
| Aperture |
F1.0 |
| 2.8 mm FOV |
Horizontal: 104.0°, Vertical: 54.4°, Diagonal: 126.7° |
| 4 mm FOV |
Horizontal: 89.2°, Vertical: 45.5°, Diagonal: 108.2° |
| Focus |
Fixed |
| DORI |
| 2.8 mm |
Detect: 61 m / Observe: 24 m / Recognize: 12 m / Identify: 6 m |
| 4 mm |
Detect: 75 m / Observe: 30 m / Recognize: 15 m / Identify: 7 m |
| ILLUMINATOR |
| Supplement Light Type |
IR + White Light |
| Supplement Light Range |
Up to 40 m |
| Smart Supplement Light |
Supported |
| IR Wavelength |
850 nm |
| VIDEO |
| Main Stream |
50 Hz: 25 fps up to 2688 × 1520
60 Hz: 30 fps up to 2688 × 1520 |
| Sub-Stream |
50 Hz: 25 fps / 60 Hz: 30 fps up to 1280 × 720 |
| Third Stream |
Up to 10 fps |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Sub-Stream Compression |
H.265 / H.264 / MJPEG |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Profile |
Baseline / Main / High Profile |
| H.265 Profile |
Main Profile |
| Bit Rate Control |
CBR / VBR |
| SVC |
H.264 / H.265 Encoding |
| ROI |
1 Fixed Region for Main Stream and Sub-Stream |
| SMART & AI FEATURES |
| Human Detection |
Supported |
| Vehicle Detection |
Supported |
| Human / Vehicle Classification |
Deep Learning Based |
| Face Capture |
Supported |
| Line Crossing Detection |
Supported |
| Intrusion Detection |
Supported |
| Region Entrance Detection |
Supported |
| Region Exiting Detection |
Supported |
| Scene Change Detection |
Supported |
| Motion Detection |
Supported with Human and Vehicle Target Classification |
| Video Tampering Detection |
Supported |
| AUDIO |
| Built-in Microphone |
Supported |
| Audio Compression |
G.711 / G.722.1 / G.726 / MP2L2 / MP3 / AAC-LC |
| Audio Noise Filtering |
Supported |
| NETWORK |
| Network Interface |
1 × RJ45 10/100M Self-Adaptive Ethernet Port |
| Protocols |
TCP/IP / ICMP / HTTP / HTTPS / FTP / DHCP / DNS / DDNS / RTP / RTSP / NTP / UPnP / SMTP / IGMP / 802.1X / QoS / IPv4 / IPv6 / UDP / Bonjour / SSL/TLS / PPPoE / SNMP |
| Integration |
ONVIF Profile S / Profile G / Profile T |
| API |
ISAPI / SDK / ISUP |
| Cloud Service |
Hik-Connect |
| Client Software |
iVMS-4200 / Hik-Central |
| STORAGE |
| MicroSD Card |
Up to 512GB |
| Storage Type |
MicroSD / MicroSDHC / MicroSDXC |
| Network Storage |
NAS |
| ANR |
Supported |
| INTERFACE |
| Ethernet |
1 × RJ45 10/100M |
| Built-in Microphone |
Supported |
| Memory Card Slot |
Built-in, up to 512GB |
| Reset Button |
Supported |
| POE & POWER |
| PoE Standard |
IEEE 802.3af, Class 3 |
| Power Supply |
12 VDC ±25%, 0.45 A |
| Maximum Power Consumption |
12 VDC: Max. 5.5W / PoE: Max. 7W |
| Power Interface |
Ø5.5 mm Coaxial Power Plug |
| Reverse Polarity Protection |
Supported |
| PROTECTION & GENERAL |
| Ingress Protection |
IP67 |
| Housing Material |
Metal |
| Anti-Corrosion Protection |
No Specific Protection |
| Operating Temperature |
-30°C to 60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Dimensions |
Ø74.4 × 179.2 mm |
| Net Weight |
Approx. 525 g |
Note: The Hikvision DS-2CD2047G2H-LIU is a 4MP Smart Hybrid Light ColorVu Fixed Mini Bullet Network Camera featuring a 1/1.8″ Progressive Scan CMOS sensor, 2688 × 1520 resolution and an F1.0 fixed lens available in 2.8 mm and 4 mm options. It supports 130 dB WDR, Smart Hybrid Light with IR and White Light up to 40 m, deep-learning-based human and vehicle classification, built-in microphone, MicroSD storage up to 512GB and IEEE 802.3af PoE.
Important: The Hikvision DS-2CD2047G2H-LIU is a 4MP Smart Hybrid Light ColorVu Fixed Mini Bullet Network Camera featuring a 1/1.8″ sensor and F1.0 lens. It provides 130 dB WDR, IR and White Light up to 40 m, human and vehicle classification, face capture and perimeter protection. The camera also supports built-in microphone, MicroSD up to 512GB, IP67 protection and IEEE 802.3af PoE.
