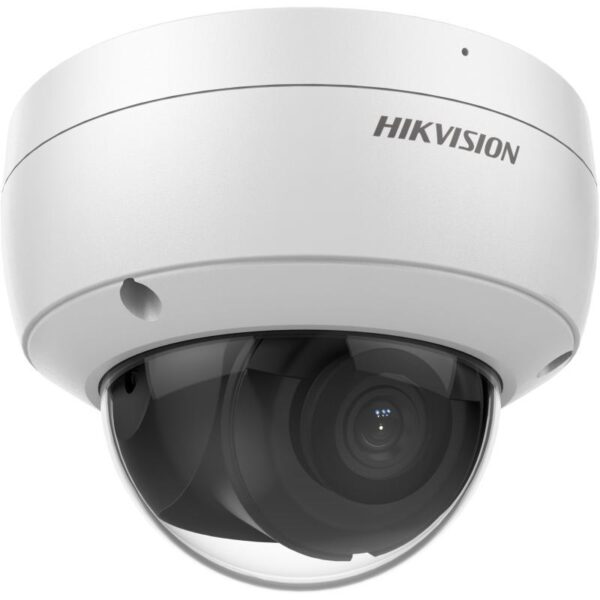

Specifications Hikvision DS-2CD2166G2-I
| Features |
Description |
| Product Type |
6MP AcuSense Powered-by-DarkFighter Fixed Dome Network Camera |
| Series |
AcuSense |
| Image Sensor |
1/2.4″ Progressive Scan CMOS |
| Maximum Resolution |
6MP (3200 × 1800) |
| Lens |
2.8 mm / 4 mm Fixed Lens |
| Aperture |
F1.6 |
| WDR |
120 dB True WDR |
| IR Range |
Up to 30 m |
| AI Detection |
Human and Vehicle Classification |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Storage |
MicroSD up to 256GB |
| PoE |
IEEE 802.3af, Class 3 |
| Protection |
IP67 / IK10 |
| CAMERA |
| Image Sensor |
1/2.4″ Progressive Scan CMOS |
| Maximum Resolution |
3200 × 1800 |
| Minimum Illumination |
Color: 0.003 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Slow Shutter |
Supported |
| Day & Night |
IR Cut Filter |
| Wide Dynamic Range |
120 dB True WDR |
| Image Enhancement |
BLC / HLC / 3D DNR |
| Angle Adjustment |
Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° |
| LENS |
| Lens Type |
Fixed Focal Lens |
| Focal Length |
2.8 mm / 4 mm |
| Lens Mount |
M12 |
| Aperture |
F1.6 |
| 2.8 mm FOV |
Horizontal: 105.1°, Vertical: 53.4°, Diagonal: 128.6° |
| 4 mm FOV |
Horizontal: 83.9°, Vertical: 44.5°, Diagonal: 100.8° |
| Focus |
Fixed |
| DORI |
| 2.8 mm |
Detect: 78.6 m / Observe: 31.2 m / Recognize: 15.7 m / Identify: 7.9 m |
| 4 mm |
Detect: 95.6 m / Observe: 37.9 m / Recognize: 19.1 m / Identify: 9.6 m |
| ILLUMINATOR |
| Supplement Light Type |
IR |
| IR Range |
Up to 30 m |
| Smart Supplement Light |
Supported |
| IR Wavelength |
850 nm |
| VIDEO |
| Main Stream |
50 Hz: 25 fps up to 3200 × 1800
60 Hz: 30 fps up to 3200 × 1800 |
| Sub-Stream |
50 Hz: 25 fps / 60 Hz: 30 fps up to 640 × 480 / 640 × 360 |
| Third Stream |
Up to 10 fps |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Sub-Stream Compression |
H.265 / H.264 / MJPEG |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| H.264 Profile |
Baseline / Main / High Profile |
| H.265 Profile |
Main Profile |
| Bit Rate Control |
CBR / VBR |
| SVC |
H.264 / H.265 Encoding |
| ROI |
1 Fixed Region for Main Stream and Sub-Stream |
| ACUSENSE & AI |
| Human Detection |
Supported |
| Vehicle Detection |
Supported |
| Human / Vehicle Classification |
Deep Learning Based |
| Face Capture |
Supported |
| Line Crossing Detection |
Supported |
| Intrusion Detection |
Supported |
| Region Entrance Detection |
Supported |
| Region Exiting Detection |
Supported |
| Motion Detection |
Human and Vehicle Target Classification |
| SMART FEATURES |
| Video Tampering Detection |
Supported |
| Scene Change Detection |
Supported |
| Exception Detection |
Network Disconnected / IP Address Conflict / Illegal Login |
| ROI |
Supported |
| NETWORK |
| Network Interface |
1 × RJ45 10/100M Self-Adaptive Ethernet Port |
| Protocols |
TCP/IP / ICMP / HTTP / HTTPS / FTP / DHCP / DNS / DDNS / RTP / RTSP / NTP / UPnP / SMTP / IGMP / 802.1X / QoS / IPv4 / IPv6 / UDP / Bonjour / SSL/TLS / PPPoE / SNMP / ARP |
| Integration |
ONVIF Profile S / Profile G / Profile T |
| API |
ISAPI / SDK |
| Cloud Service |
Hik-Connect |
| Client Software |
iVMS-4200 / Hik-Central |
| STORAGE |
| MicroSD Card |
Up to 256GB |
| Storage Type |
MicroSD / MicroSDHC / MicroSDXC |
| Network Storage |
NAS (NFS / SMB/CIFS) |
| ANR |
Supported |
| INTERFACE |
| Ethernet |
1 × RJ45 10/100M |
| Memory Card Slot |
Built-in MicroSD Card Slot |
| Hardware Reset |
Supported |
| POWER |
| Power Supply |
12 VDC ±25% |
| Maximum Power Consumption |
12 VDC: Max. 6W / PoE: Max. 7.5W |
| PoE Standard |
IEEE 802.3af, Class 3 |
| Power Interface |
Ø5.5 mm Coaxial Power Plug |
| PROTECTION & GENERAL |
| Ingress Protection |
IP67 |
| Impact Protection |
IK10 |
| Housing Material |
Metal Body / Plastic Bubble |
| Operating Temperature |
-30°C to 60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Dimensions |
Ø121.4 × 92.2 mm |
| Net Weight |
Approx. 550 g |
Note: The Hikvision DS-2CD2166G2-I is a 6MP AcuSense Powered-by-DarkFighter Fixed Dome Network Camera featuring a 1/2.4″ Progressive Scan CMOS sensor, 3200 × 1800 resolution and 2.8 mm or 4 mm fixed lens with F1.6 aperture. It supports 120 dB True WDR, IR up to 30 m, deep-learning-based human and vehicle classification, H.265+ compression, MicroSD storage up to 256GB and IEEE 802.3af PoE.
Important: The Hikvision DS-2CD2166G2-I is a 6MP AcuSense Powered-by-DarkFighter Fixed Dome Network Camera featuring 120 dB True WDR, up to 30 m IR and deep-learning-based human and vehicle classification. It supports Face Capture, Line Crossing, Intrusion Detection and Region Entrance/Exiting Detection, together with MicroSD up to 256GB, IP67, IK10 and IEEE 802.3af PoE. The standard -I version does not include the built-in microphone and audio/alarm interfaces found on the -ISU variant.
