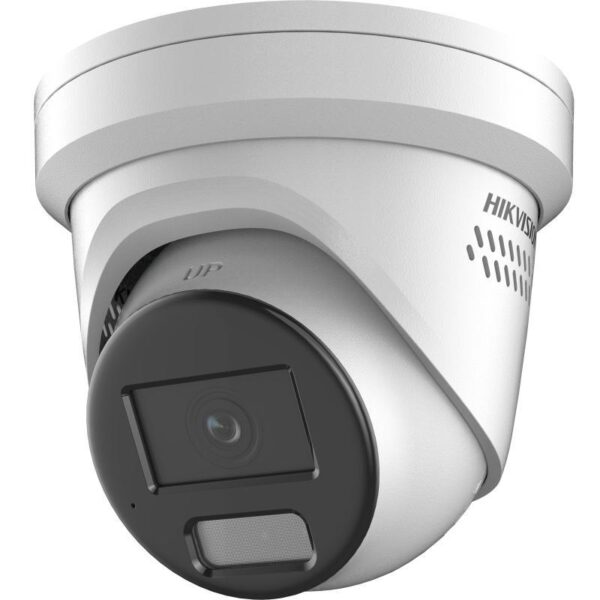

Specifications Hikvision DS-2CD2387G2H-LISU/SL

Features	Description
Product Type	8MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera
Image Sensor	1/1.8″ Progressive Scan CMOS
Maximum Resolution	3840 × 2160
Lens	2.8mm / 4mm Fixed Lens
Aperture	F1.0
Minimum Illumination	0.0008 Lux @ F1.0, 0 Lux with Light
WDR	130dB
Supplement Light	IR + White Light, Up to 30m
Video Compression	H.265+ / H.265 / H.264+ / H.264
Storage	MicroSD/SDHC/SDXC up to 512GB
Protection	IP67

CAMERA
Image Sensor	1/1.8″ Progressive Scan CMOS
Maximum Resolution	3840 × 2160
Maximum Frame Rate	25fps @ 50Hz / 24fps @ 60Hz
Minimum Illumination	Color: 0.0008 Lux @ F1.0, AGC ON 0 Lux with Light
Shutter Speed	1/3s to 1/100,000s
Wide Dynamic Range	130dB
Day & Night	IR Cut Filter
Noise Reduction	3D DNR
Backlight Compensation	BLC / HLC
Image Enhancement	Digital WDR / Defog / EIS

LENS
Lens Type	Fixed Focal Lens
Focal Length	2.8mm / 4mm
Aperture	F1.0
Lens Mount	M16
2.8mm Horizontal FOV	108.8°
2.8mm Vertical FOV	56.4°
2.8mm Diagonal FOV	134.3°
4mm Horizontal FOV	93.3°
4mm Vertical FOV	47.2°
4mm Diagonal FOV	114.2°
Depth of Field	2.8mm: 3.3m to ∞ 4mm: 3.8m to ∞

SMART HYBRID LIGHT
Supplement Light Type	IR + White Light
Supplement Light Range	Up to 30m
Smart Supplement Light	Supported
IR Wavelength	850nm
ColorVu	Supported

VIDEO
Video Compression	H.265+ / H.265 / H.264+ / H.264 / MJPEG
Video Streams	3 Streams
Main Stream	3840 × 2160 @ 25fps / 24fps
Sub Stream	1280 × 720 / 640 × 480 / 640 × 360
Third Stream	1920 × 1080 / 1280 × 720 / 640 × 480 / 640 × 360
Bit Rate	32Kbps–16Mbps
Bit Rate Control	CBR / VBR
H.264+	Supported
H.265+	Supported
SVC	H.264 / H.265 Encoding

DEEP LEARNING & SMART FEATURES
Human & Vehicle Classification	Supported
Line Crossing Detection	Supported
Intrusion Detection	Supported
Region Entrance Detection	Supported
Region Exiting Detection	Supported
Motion Detection	Supported
Video Tampering Detection	Supported
Scene Change Detection	Supported
Exception Detection	Network Disconnected / IP Conflict / Illegal Login

AUDIO & ALARM
Built-in Microphone	Supported
Built-in Speaker	Supported
Two-way Audio	Supported
Audio Compression	G.711 / G.726 / AAC / PCM
Alarm Input	1 Input
Alarm Output	1 Output
Active Strobe Light	Supported
Audio Alarm	Supported

NETWORK
Network Interface	1 × RJ45 10/100Mbps Self-Adaptive Ethernet Port
Network Protocols	TCP/IP / ICMP / HTTP / HTTPS / FTP / DHCP / DNS / DDNS / RTP / RTSP / RTCP / PPPoE / NTP / UPnP / SMTP / SNMP / IGMP / IPv6 / QoS / 802.1X
Interoperability	ONVIF Profile S / Profile G / Profile T / ISAPI
Simultaneous Live View	Up to 6 Channels
Client	Hik-Connect / iVMS-4200 / Hik-Central
Security	HTTPS / IP Address Filtering / User Authentication / 802.1X

STORAGE
Memory Card	MicroSD / SDHC / SDXC up to 512GB
Network Storage	NAS / NFS / SMB/CIFS
ANR	Supported
Recording	Continuous / Event Recording

POWER
Power Supply	12VDC ±25% / PoE
PoE Standard	IEEE 802.3af, Class 3
Maximum Power Consumption	10.5W

PROTECTION
Protection Rating	IP67
Operating Temperature	-30°C to +60°C
Operating Humidity	≤95% RH, Non-Condensing

POWER & GENERAL
Power Supply	12VDC / PoE
Maximum Power Consumption	10.5W
Dimensions	Ø138.3 × 115.4mm
Net Weight	Approx. 820g
Protection Rating	IP67

Note: The Hikvision DS-2CD2387G2H-LISU/SL is an 8MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera featuring a 1/1.8″ Progressive Scan CMOS sensor, 3840 × 2160 resolution, F1.0 aperture and 130dB WDR. It supports 2.8mm and 4mm fixed lenses, IR and white light up to 30m, human and vehicle classification, two-way audio, active strobe light, audio alarm and MicroSD storage up to 512GB.

Important: The Hikvision DS-2CD2387G2H-LISU/SL is an 8MP ColorVu Fixed Turret Network Camera with Smart Hybrid Light, 130dB WDR, F1.0 aperture and IR/White Light up to 30m. It supports human and vehicle classification, two-way audio, active strobe and audio alarm, MicroSD up to 512GB, IEEE 802.3af PoE and IP67 protection.
